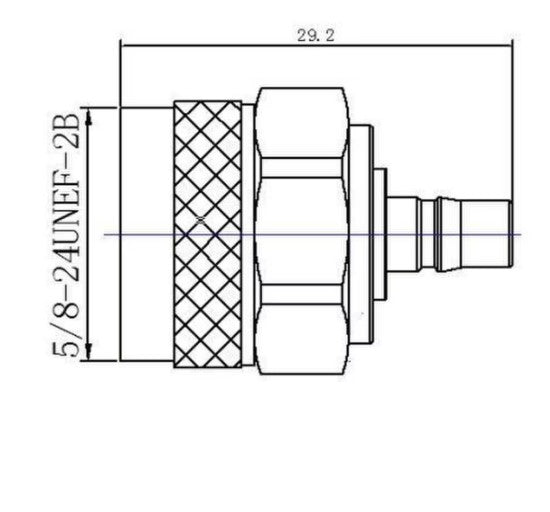

Pulse QMA-10 N-Male to QMA-Female Adapter

Pulse QMA-10 N-Male to QMA-Female Adapter

Brand:
Item ID:
168073011
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
MPN not available
Send Request for Quote (RFQ)
Pulse QMA-10 N-Male to QMA-Female Adapter offers reliable, low-loss performance with a 50 Ohm impedance and a frequency range of DC to 7.5 GHz.
Regular price $22.70
Regular price $0.00 Sale price $22.70
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse QMA-10 N-Male to QMA-Female Adapter offers reliable, low-loss performance with a 50 Ohm impedance and a frequency range of DC to 7.5 GHz. It supports up to 500 mating cycles and operates in extreme conditions with an IP67 sealing class and a wide temperature range of -40°C to +85°C.

Product Features:

  • This RF adapter features an N Male to QMA Female connector.
  • With an impedance of 50 Ohms, it is optimized for superior RF performance.
  • The wide frequency range from DC to 7.5 GHz makes it suitable for various wideband applications.
  • Designed for minimal signal loss of ≤0.2 dB.
  • It operates at a voltage rating of 1000V rms and has a dielectric withstand voltage of 2500V rms for enhanced reliability.
  • The adapter maintains excellent signal integrity with a VSWR of ≤1.25 at DC–3 GHz.
  • It supports up to 500 mating cycles and meets MIL-STD-202 standards for mechanical shock and vibration resistance.
  • Engineered to withstand extreme conditions, it operates within a temperature range of -40°C to +85°C.
  • With an IP67 sealing class, it is resistant to dust and water.
  • It is RoHS compliant, making it an environmentally friendly choice that meets regulatory standards.

Application Areas:

  • RF and microwave communication systems.
  • Wireless infrastructure, including LTE, 5G, and Wi-Fi networks.
  • Military and aerospace applications requiring durable RF connections.
  • Test and measurement equipment.
  • Industrial and automotive RF applications.
  • Harsh environmental conditions requiring IP67-rated connectors.

In the Box:

  • Pulse QMA-10 N-Male to QMA-Female Adapter.
