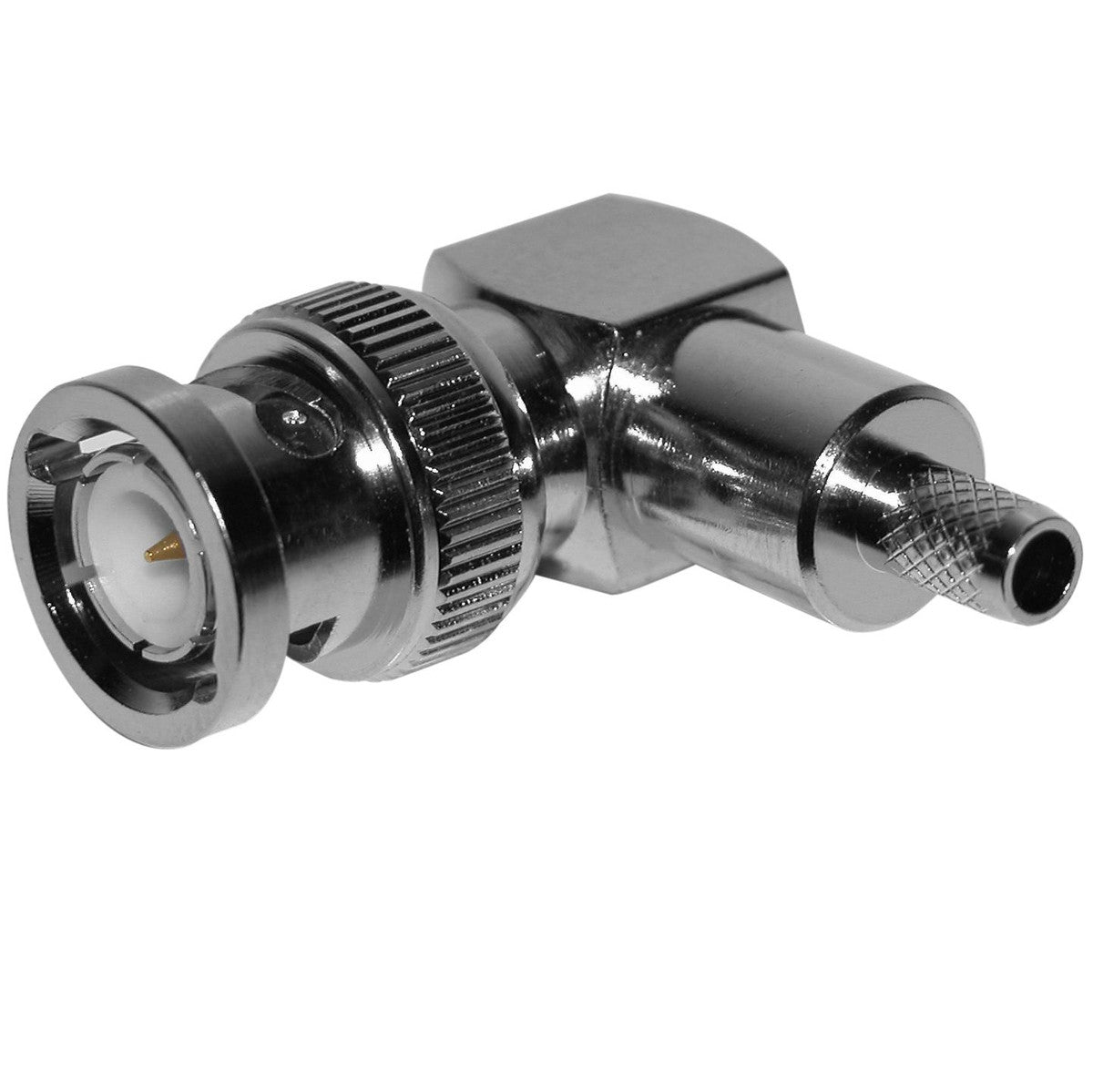

Pulse BNC-239 Right Angle BNC-Male Connector - RG58 Cable

    Pulse BNC-239 Right Angle BNC-Male Connector - RG58 Cable

      Product form
      Brand:
      Pulse
      Item ID:
      168018522
      MPN:
      BNC-239
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Pulse R/A BNC(M) Connector; RG58, similar to the TNC series but instead of a thread they use a bayonet coupling mechanism allowing a quicker response.

      Available

      $11.53

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        Pulse R/A BNC(M) Connector; RG58

        BNC connectors are similar to the TNC series but instead of a thread they use a bayonet coupling mechanism allowing a quicker connect/disconnect. BNC connectors are generally used within an operating range of DC to 4 GHz and are popular with many wireless applications requiring frequent connection and disconnection such as test equipment. Also available in reverse gender versions. * All listed BNC connectors feature the standard 50 Ohm interface dimensions. 75 Ohm interface dimensional connectors and an expanded range of other BNC connectors are available.

        Documents:

        Pulse BNC-239 Connector - Datasheet

        Product Specifications

        Brand Pulse
        Length 4
        Width 2
        Height 2
        Cable Retention 40 lbs min
        Cable Supported RG303/U, RG58, RG58A, RG141
        Cable Type RG58
        Cable Type Connectors RG58
        Centre Contact Crimp
        Component Type Connector
        Connector BNC(M)
        Connector End A BNC (M)
        Coupling Nut Retention 100lbs Max
        Durability 500 matings
        Impedance [Ω] 50
        Inner Attachment Other
        Mating Two stud bayonet coupling
        Max Frequency 4 GHz
        Max Frequency (MHz) 4000
        Min Frequency (MHz) 0
        Mounting Angle Right Angle
        Outer Contact Crimp
        Prep Toolset RCT-58S
        Salt Spray MIL-STD-101 Test Cond B
        Temperature Range -65?to 165?C
        Thermal Shock MIL-STD-107 Test Cond B
        Vibration MIL-STD-202 Test Cond B
