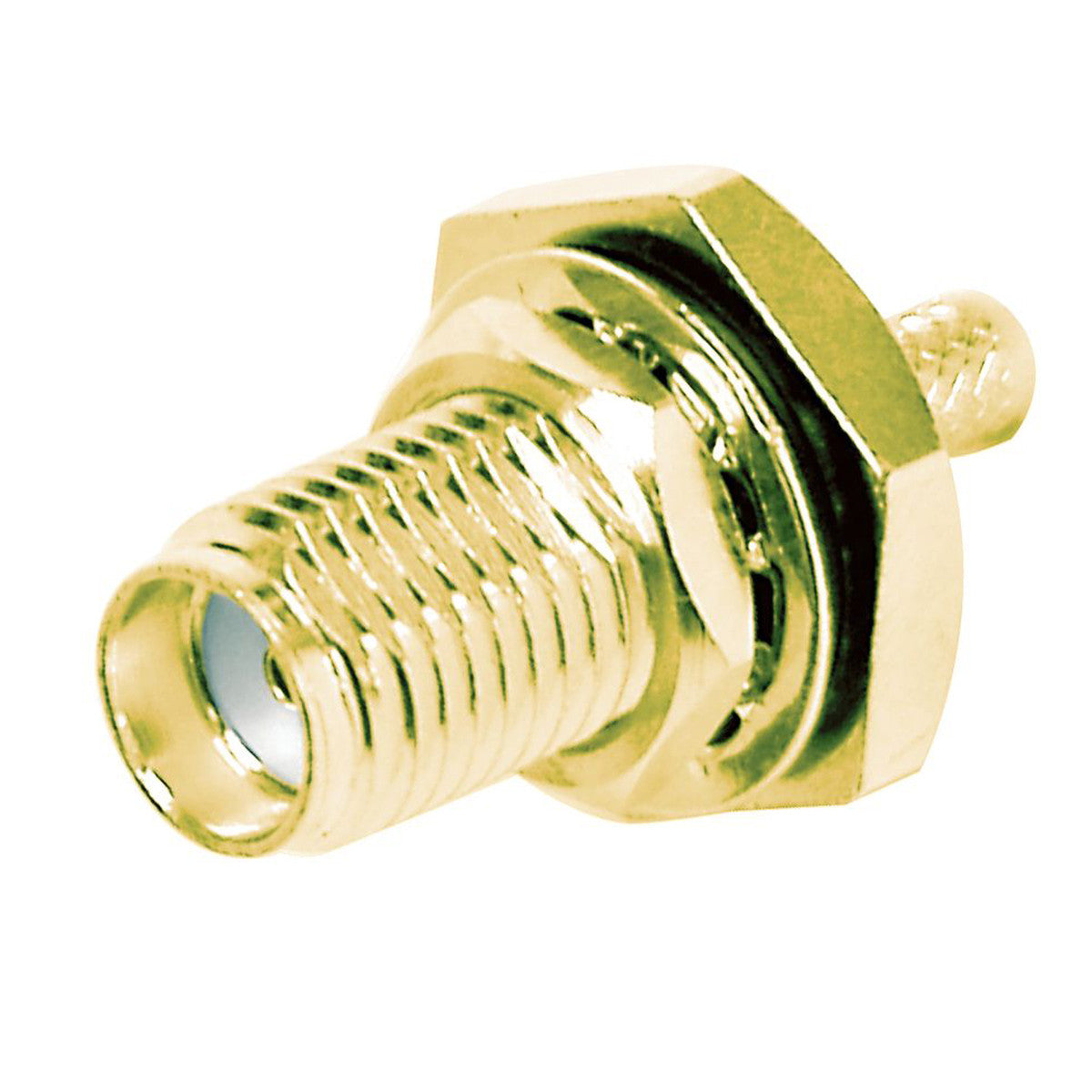

Pulse SMA-06 SMA-Female Connector, Bulkhead, Crimp - RG174, RG188 and RG316 Cable

    Pulse SMA-06 SMA-Female Connector, Bulkhead, Crimp - RG174, RG188 and RG316 Cable

      Product form
      Brand:
      Item ID:
      168018405
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      SMA-06

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      The Pulse SMA-06 SMA-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG174, RG188, and RG316 cables.

      Sold-out

      $5.60

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse SMA-06 SMA-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG174, RG188, and RG316 cables. This bulkhead connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

        Product Features:

        • This connector is a crimp/crimp jack for RG174, RG188, and RG316 cables.
        • It features bulkhead mounting, providing a secure and stable installation.
        • The connector end is SMA-Female, suitable for various RF applications.
        • The inner attachment method is crimp, ensuring a secure and stable connection.
        • It includes a crimp gold-plated inner contact with a hex size of 0.072.
        • The crimp gold-plated ferrule has a hex size of 3.25.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections for RG174, RG188, and RG316 cables.

        In the Box:

        • 1 x Pulse SMA-06 SMA-Female Connector

        Documents:

        Pulse SMA-06 Connector - Datasheet

        Product Specifications

        MPN SMA-06
        Brands Pulse
        Cable supported RG174/U, RG316/U, RG188/U
        Cable type RG174
        Cable type connectors RG174
        Centre conductor Crimp
        Component type Connector
        Connector SMA(F)
        Connector end a SMA (F)
        Height 2
        Impedance ohm 50
        Inner attachment Crimp
        Length 4
        Max frequency mhz 11000
        Min frequency mhz 0
        Mounting angle Straight
        Prep toolset RCT-174
        Width 2
