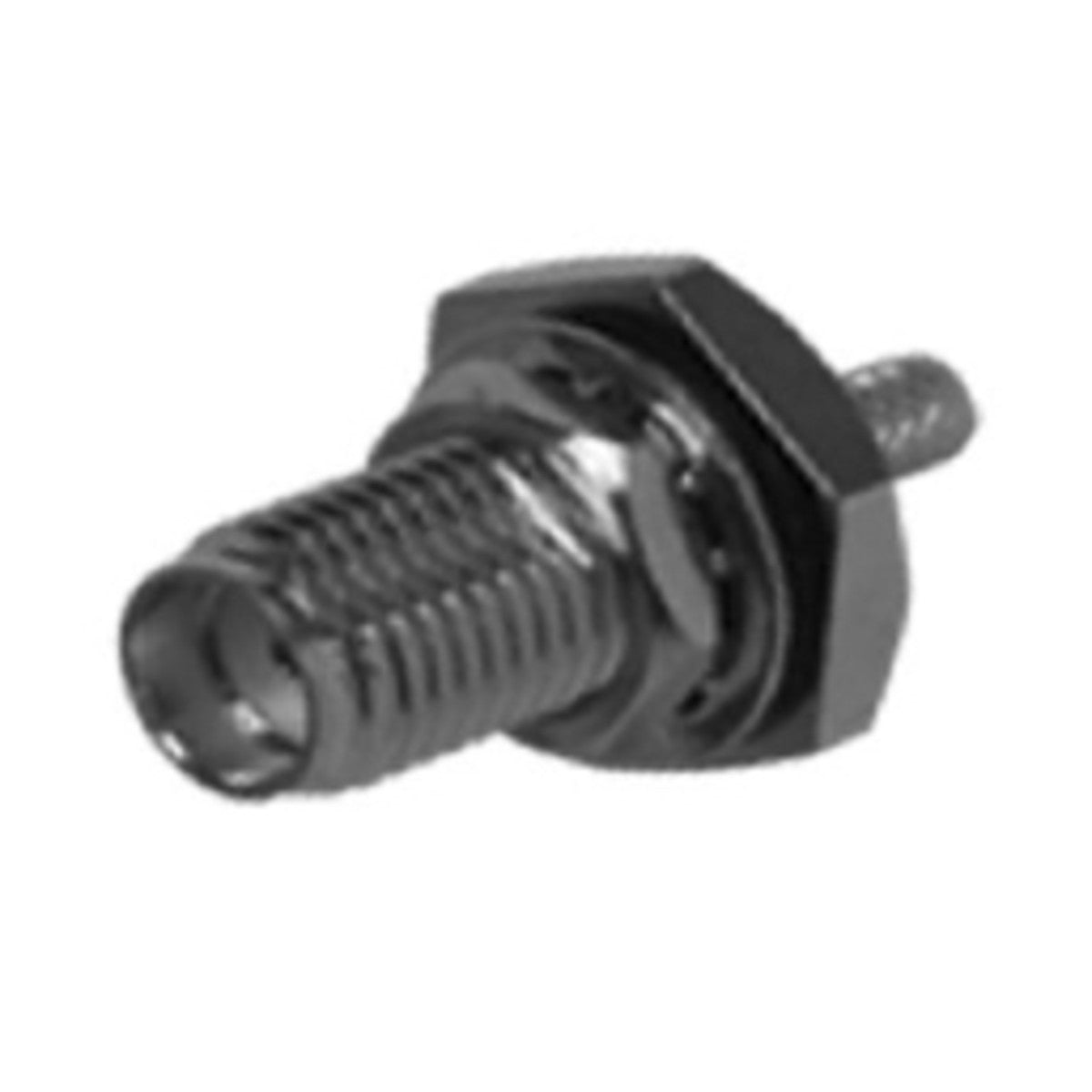

Pulse SMA-09 SMA-Female Connector, Bulkhead, Crimp - RG141, RG303 and RG58 Cables

Pulse SMA-09 SMA-Female Connector, Bulkhead, Crimp - RG141, RG303 and RG58 Cables

Sold out

Brand:
Item ID:
168018406
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SMA-09
Send Request for Quote (RFQ)
The Pulse SMA-09 SMA-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG141, RG303, and RG58 cables.
Regular price $5.15
Regular price $0.00 Sale price $5.15
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse SMA-09 SMA-Female Connector is designed for high-frequency RF applications, providing a reliable connection for RG141, RG303, and RG58 cables. This bulkhead connector ensures optimal signal transmission with minimal loss, making it suitable for a wide range of RF systems.

Product Features:

  • The inner attachment method is crimp, ensuring a secure and stable connection.
  • The connector operates over a wide frequency range from 0 MHz to 11000 MHz.
  • It has an impedance of 50 ohms, ensuring compatibility with standard RF systems.
  • The connector end is SMA-Female, suitable for various RF applications.
  • The mounting angle is straight, facilitating easy installation.
  • The connector supports RG141/U, RG303/U, and RG58/U cables.
  • The frequency range is up to 11 GHz.
  • The suggested prep toolset is RCT-58S.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections for RG141, RG303, and RG58 cables.

In the Box:

  • 1 x SMA-09 SMA-Female Connector, Bulkhead, Crimp.

Documents:

Pulse SMA-09 Connector - Datasheet

Product Specifications

MPN SMA-09
Brands Pulse
Cable retention 40 lbs min
Cable supported RG58/U, RG141/U, RG303/U
Cable type RG58
Cable type connectors RG58
Centre contact Crimp
Component type Connector
Connector SMA(F)
Connector end a SMA (F)
Coupling nut retention 60lbs Max
Durability 500 matings
Frequency mhz 11 GHz Max.
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Mating 1/4" - 36 threaded coupling
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Outer contact Crimp
Prep toolset RCT-58S
Salt spray MIL-STD-101 Test Cond B
Temperature range -65?to 165?C
Thermal shock MIL-STD-107 Test Cond B
Vibration MIL-STD-202 Test Cond B
Width 2
