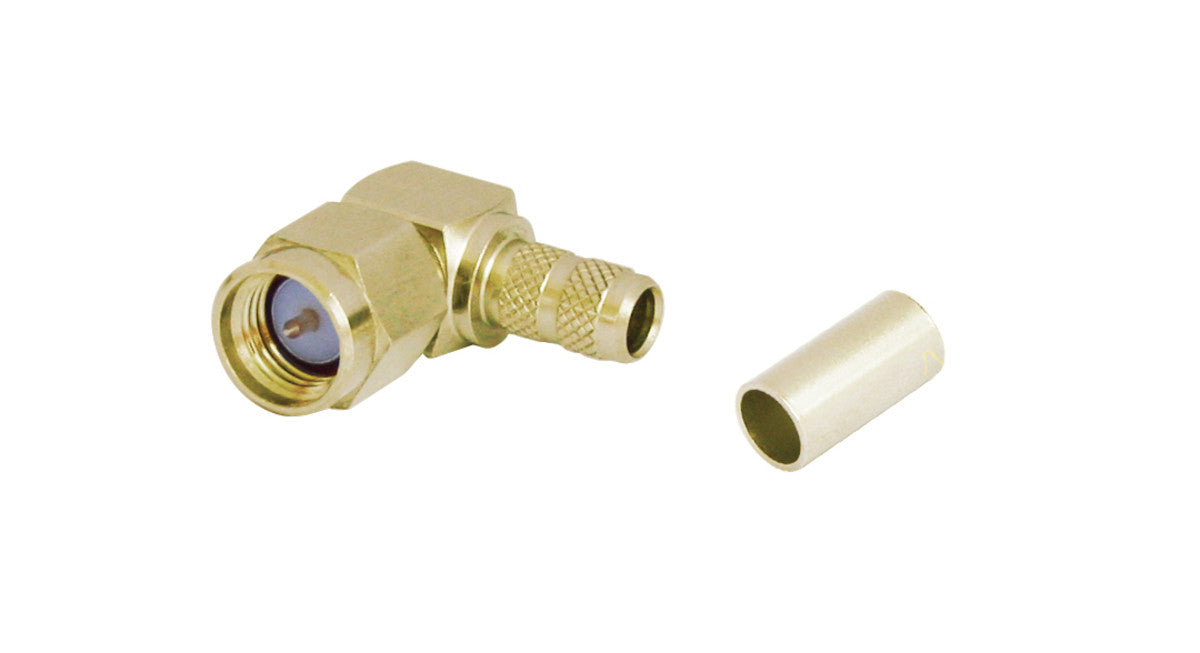

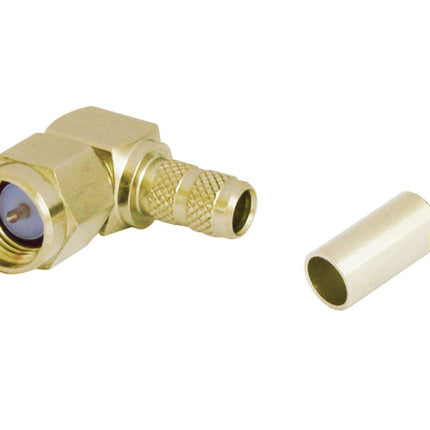

Pulse SMA-17 Right Angle SMA-Male Connector - RG58, RG141 and RG303 Cables

Pulse SMA-17 Right Angle SMA-Male Connector - RG58, RG141 and RG303 Cables

Available

Brand:
Item ID:
168018316
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SMA-17
Send Request for Quote (RFQ)
The Pulse SMA-17 Right Angle SMA-Male Connector is designed for RG58, RG141, and RG303 cables. It ensures secure and stable connections.
Regular price $11.25
Regular price $0.00 Sale price $11.25
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse SMA-17 Right Angle SMA-Male Connector is designed for versatile RF applications, providing a reliable connection for RG58, RG141, and RG303 cables. This right-angle connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features a right-angle SMA-Male interface.
  • It is compatible with RG58, RG141, and RG303 cables.
  • The connector ensures optimal signal transmission with minimal loss.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG58, RG141, and RG303 cables.

In the Box:

  • 1 x SMA-17 Right Angle SMA-Male Connector.

Documents:

Pulse SMA-17 Right Angle SMA-Male Connector - Datasheet

Product Specifications

MPN SMA-17
Brands Pulse
Cable retention 40 lbs min
Cable supported RG58/U, RG141/U, RG303/U
Cable type RG58
Cable type connectors RG174
Centre contact Solder
Component type Connector
Connector SMA(M)
Connector end a SMA (M)
Coupling nut retention 60lbs Max
Durability 500 matings
Height 2
Impedance ohm 50
Inner attachment Other
Length 4
Mating 1/4" - 36 threaded coupling
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Right Angle
Outer contact Crimp
Prep toolset RCT-58S
Salt spray MIL-STD-101 Test Cond B
Temperature range -65?to 165?C
Thermal shock MIL-STD-107 Test Cond B
Vibration MIL-STD-202 Test Cond B
Width 2
