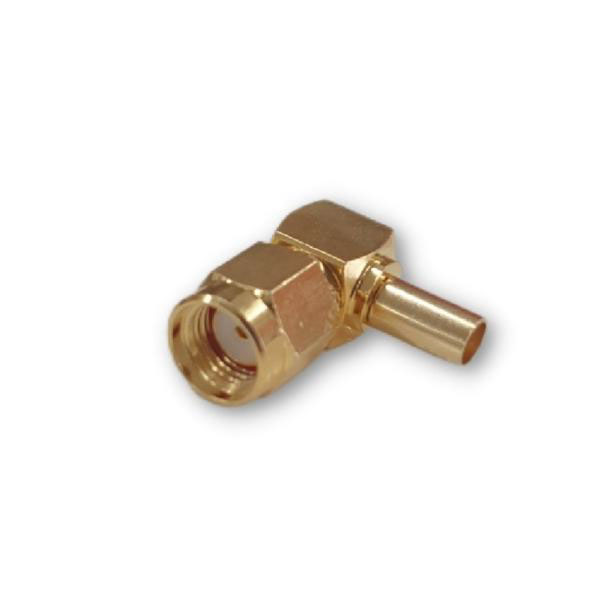

Pulse SMA-18RG Right Angle SMA-Male Reverse Gender Connector - RG174, RG188 and RG316 Cables

Pulse SMA-18RG Right Angle SMA-Male Reverse Gender Connector - RG174, RG188 and RG316 Cables

Available

Brand:
Item ID:
168018320
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SMA-18RG
Send Request for Quote (RFQ)
Pulse SMA-18RG Right Angle SMA-Male Reverse Gender Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG188, and RG316 cables.
Regular price $7.40
Regular price $0.00 Sale price $7.40
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse SMA-18RG Right Angle SMA-Male Reverse Gender Connector is designed for versatile RF applications, providing a reliable connection for RG174, RG188, and RG316 cables. This right-angle connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features a right-angle SMA-Male reverse gender interface.
  • It is compatible with RG174, RG188, and RG316 cables.
  • The centre conductor attachment is soldered, while the outer conductor attachment is crimped.
  • The connector ensures optimal signal transmission with minimal loss.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG174, RG188, and RG316 cables.

In the Box:

  • 1 x SMA-18RG Right Angle SMA-Male Reverse Gender Connector.

Documents:

Pulse SMA-18RG Reverse Gender Connector - Datasheet

Product Specifications

MPN SMA-18RG
Brands Pulse
Cable supported RG174/U, RG316/U, RG188A/U
Cable type RG174, RG316
Component type Connector
Connector SMA(F)
Connector end a SMA (M) RG
Height 2
Impedance ohm 50
Inner attachment Other
Length 4
Max frequency mhz 11000
Min frequency mhz 0
Mounting angle Straight
Prep toolset RCT-174
Width 2
