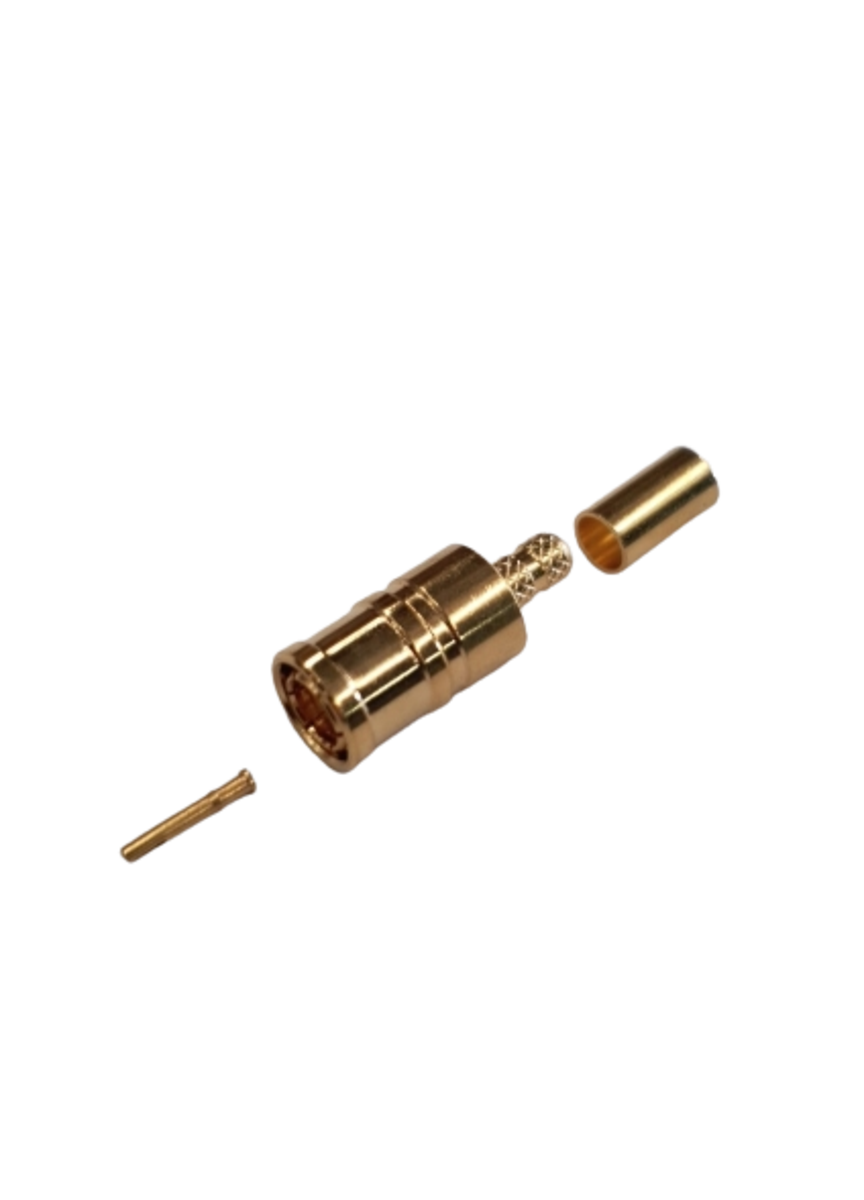

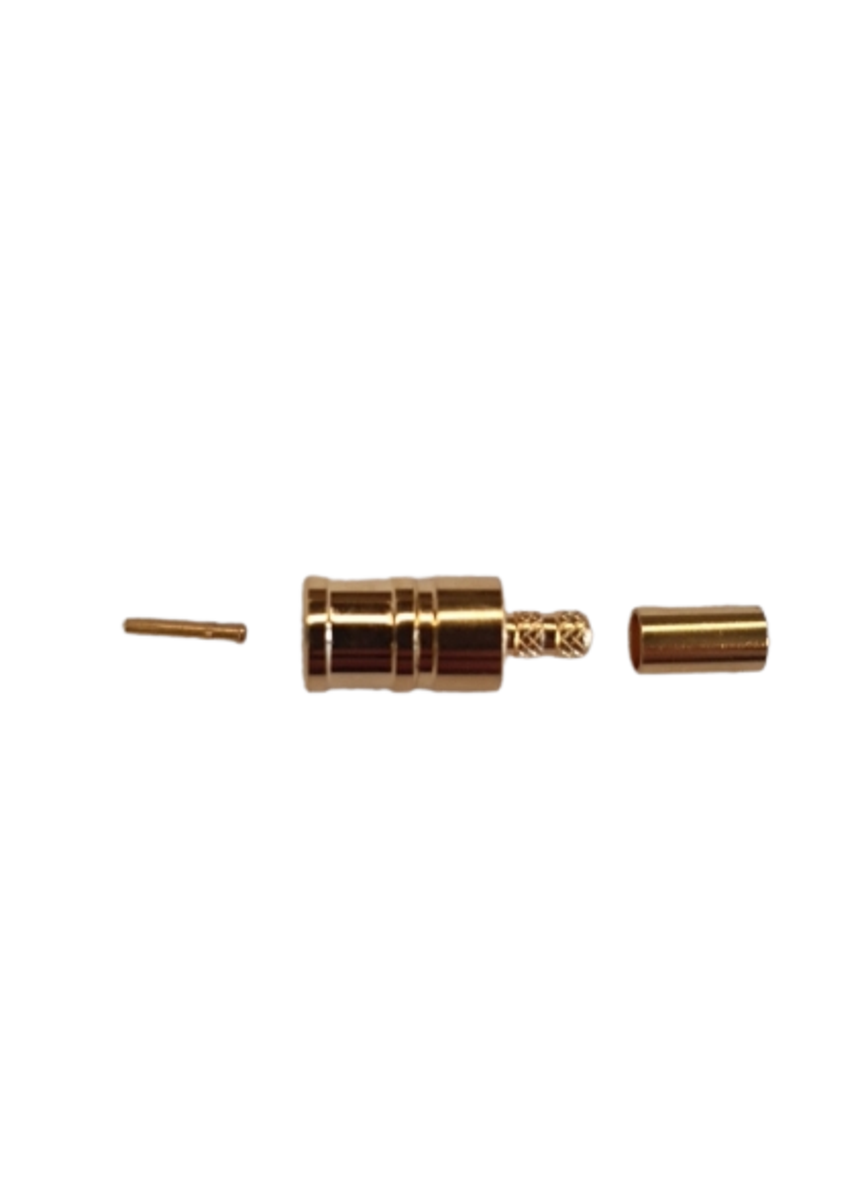

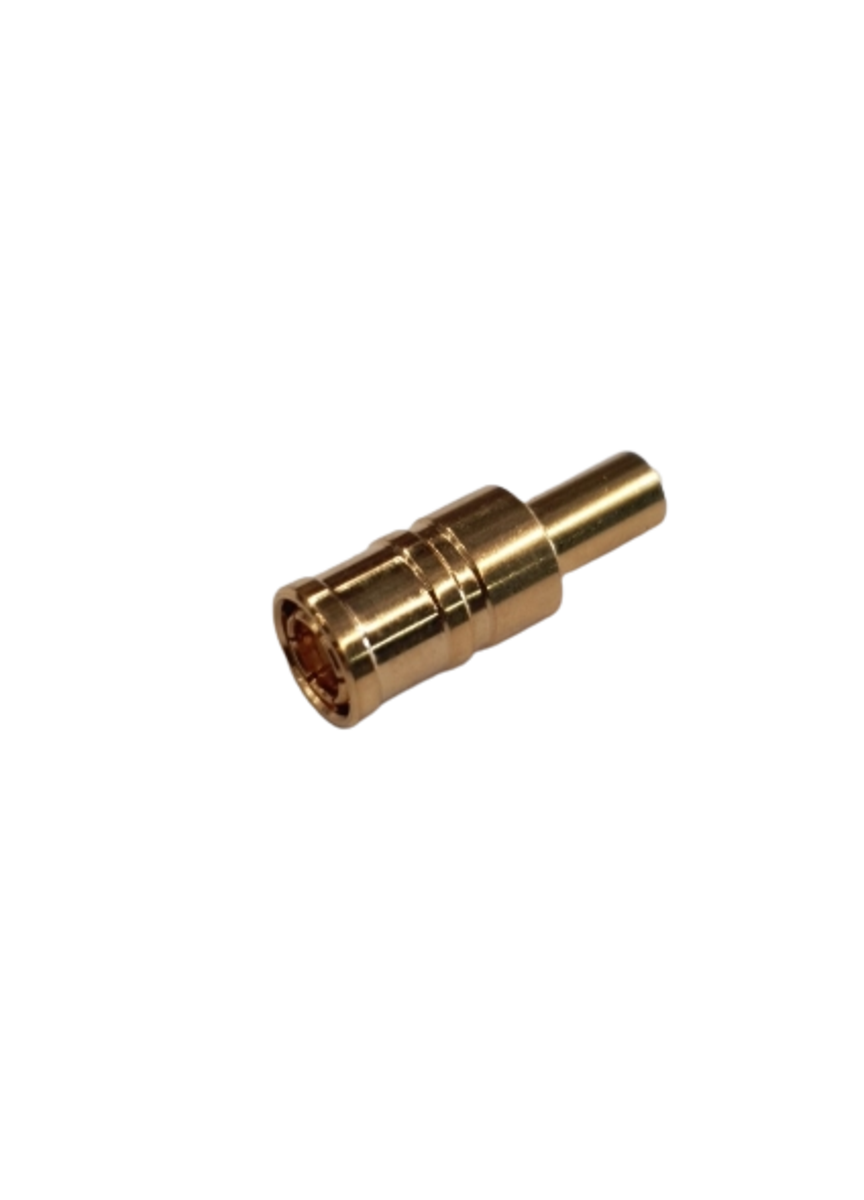

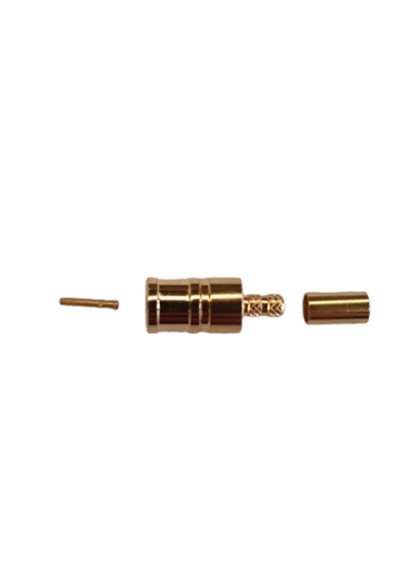

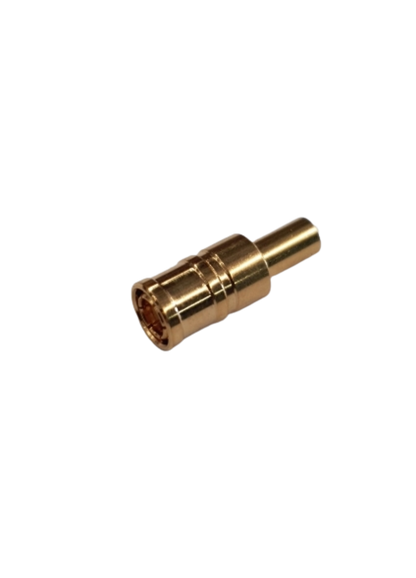

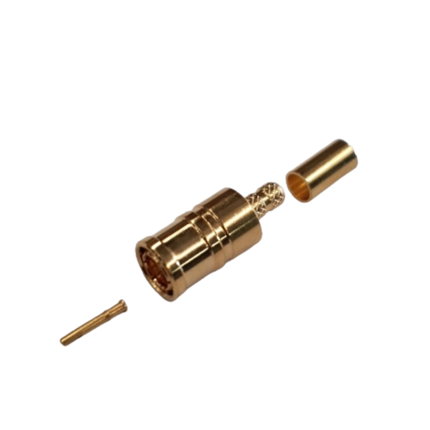

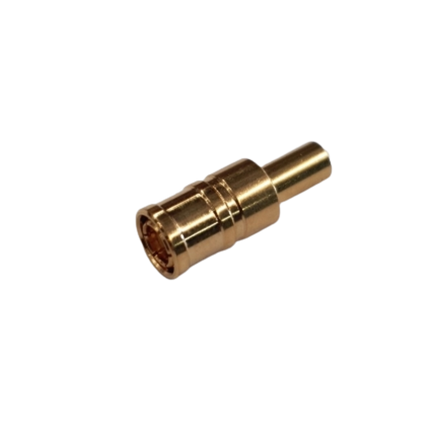

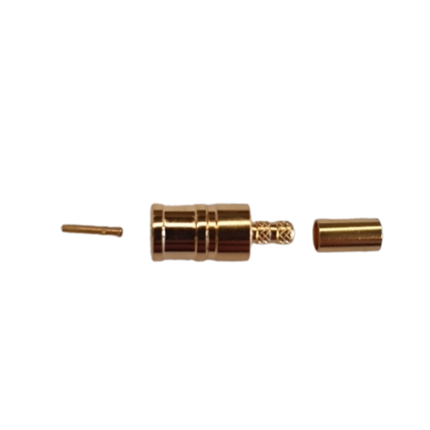

Pulse SMB-02 SMB-Male Connector, Crimp - RG174, RG188 and RG316 Cables

    Pulse SMB-02 SMB-Male Connector, Crimp - RG174, RG188 and RG316 Cables

      Product form
      Brand:
      Pulse
      Item ID:
      168018252
      MPN:
      SMB-02
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      Pulse SMB-02 SMB-Male Connector is designed for RG174, RG188, RG316 Cables and efficient RF connections.

      Available

      $4.48

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The Pulse SMB-02 SMB-Male Connector is designed for reliable and efficient RF connections. Similar in size and performance to the SMA connector, the SMB connector features a snap-on interfacing for ease of use.

        Product Features:

        • This connector is an SMB jack socket with a male pin.
        • It supports 2.5mm diameter cables such as RG174, RG188 and RG316 Cables
        • The connector has an impedance of 50Ω or 75Ω.
        • It operates from DC to 4 GHz, making it suitable for a wide range of RF applications.

        Application Areas:

        • This connector is ideal for use in RF communication systems.
        • It is suitable for broadcast, telecom, and networking applications.
        • The connector can be used in instrumentation and testing environments.
        • It is perfect for applications requiring secure and stable connections with 2.5mm diameter cables.

        In the Box:

        • 1 x SMB-02 SMB-Male Connector, Crimp.

        Documents:

        Pulse SMB-02 Connector - Datasheet

        Product Specifications

        Brand Pulse
        Length 4
        Width 2
        Height 2
        Cable Supported RG174/U, RG316/U, RG188/U
        Cable Type RG174, RG316
        Component Type Connector
        Connector SMB(M)
        Connector End A SMB (M)
        Impedance [Ω] 50
        Inner Attachment Crimp
        Max Frequency (MHz) 4000
        Min Frequency (MHz) 0
        Mounting Angle Straight
        Prep Toolset RCT-174
