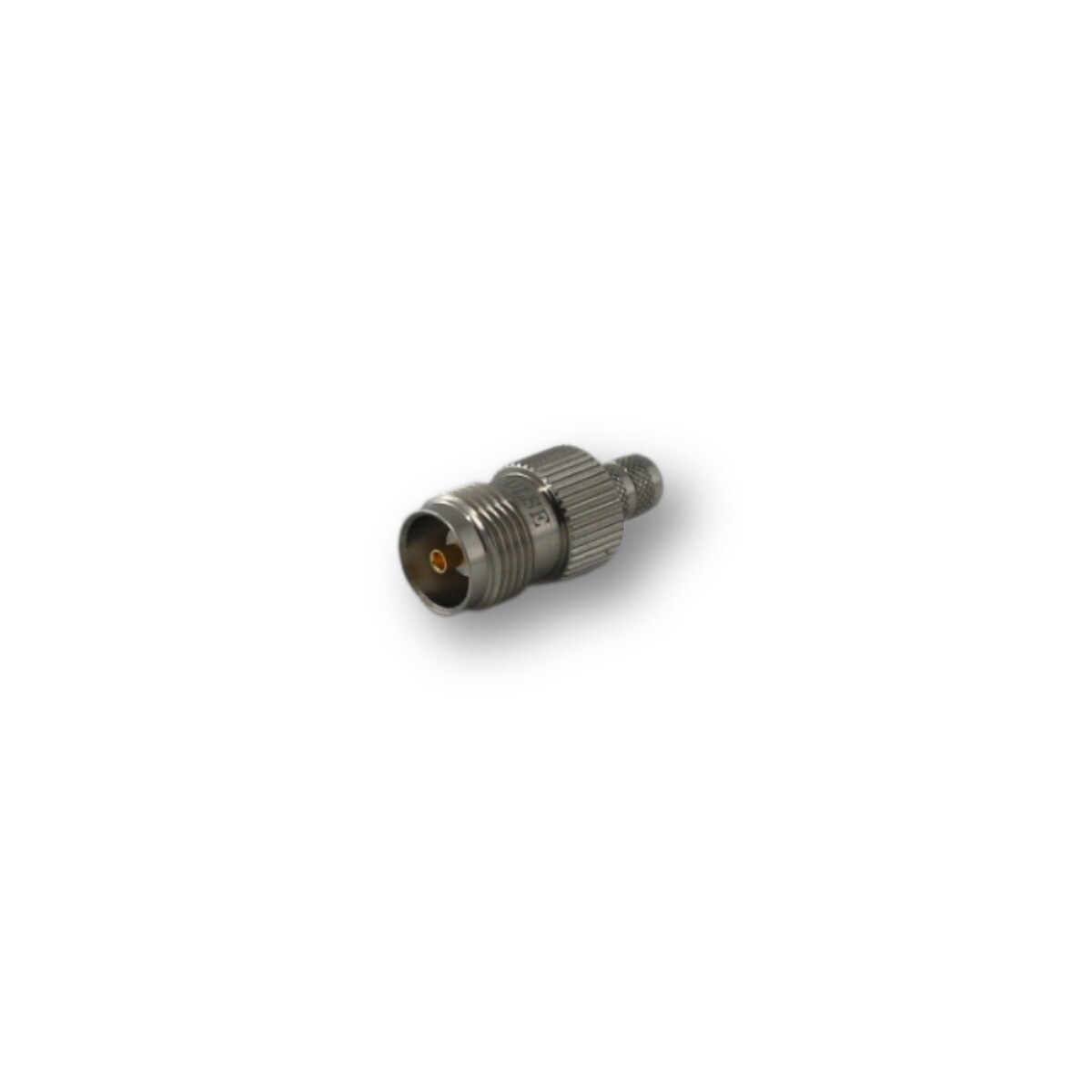

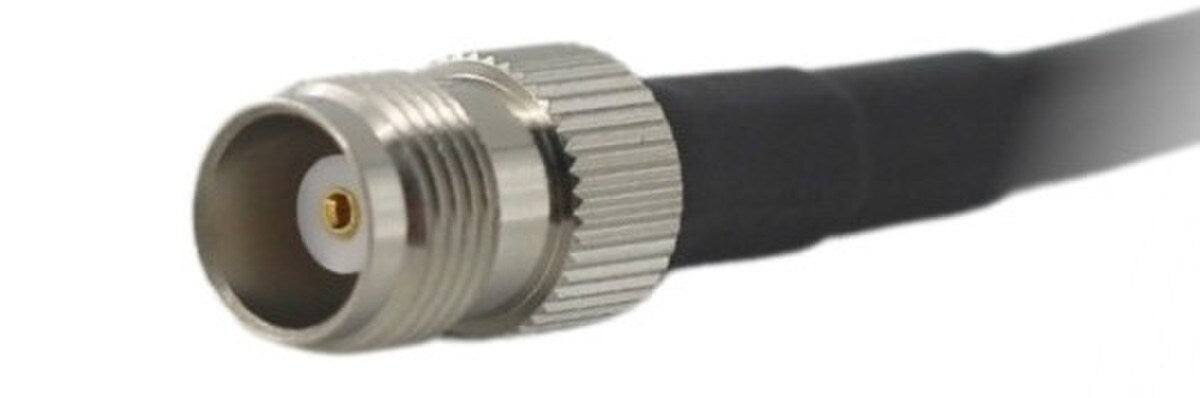

Pulse TNC-9 TNC-Female Crimp Connector is designed for use with LMR-240 and RFI-240 cables for secure and reliable RF connections.

Product Features:

• Compatible with LMR-240 and RFI-240 coaxial cables.
• Crimped phosphor bronze/gold center contact pin (hex size: 1.69mm) for superior conductivity.
• Crimped brass/nickel ferrule (hex size: 6.48mm) for secure cable attachment.
• Reliable and robust design for long-lasting performance.

Application Areas:

• RF communication systems and coaxial cable installations.
• Wireless infrastructure and antenna connections.
• General-purpose RF applications requiring TNC female connectors.

In the Box:

• 1 x Pulse TNC-9 TNC-Female Crimp Connector

Documents:

Pulse TNC-9 Connector - Datasheet
