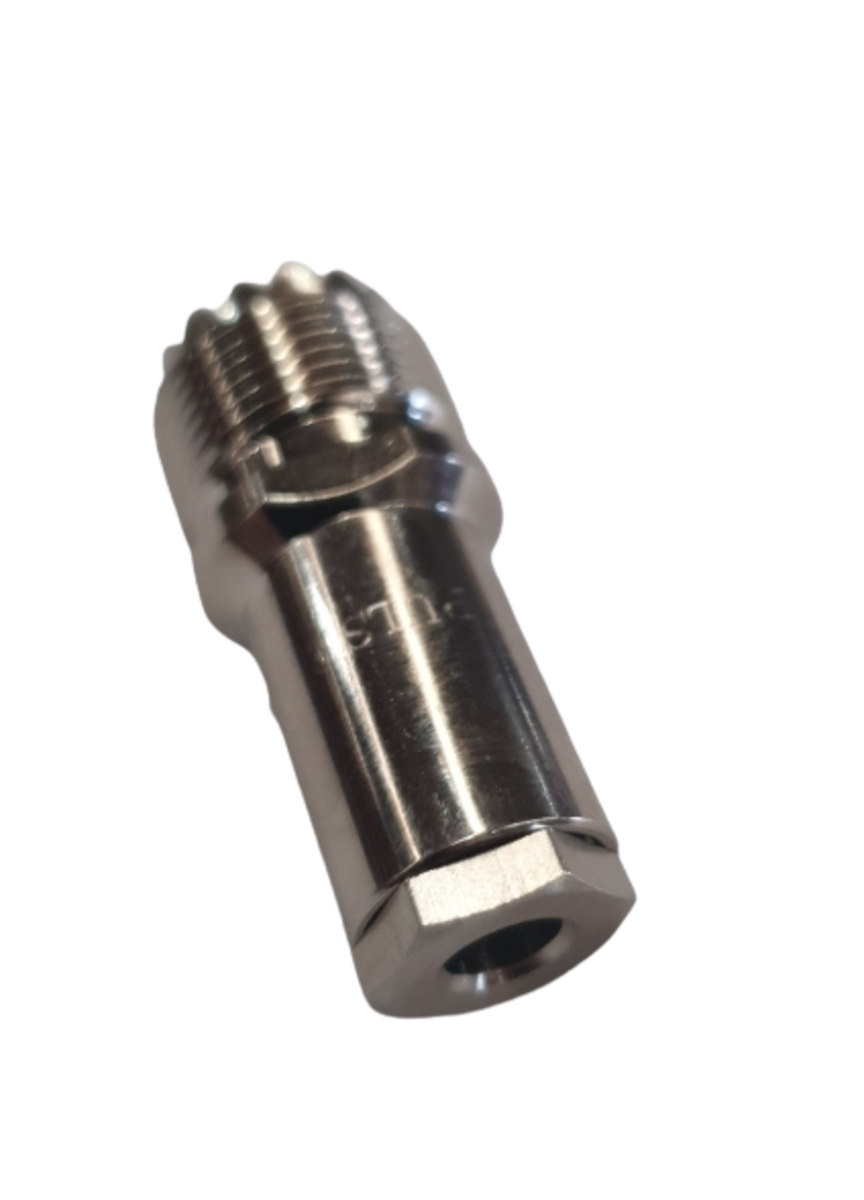

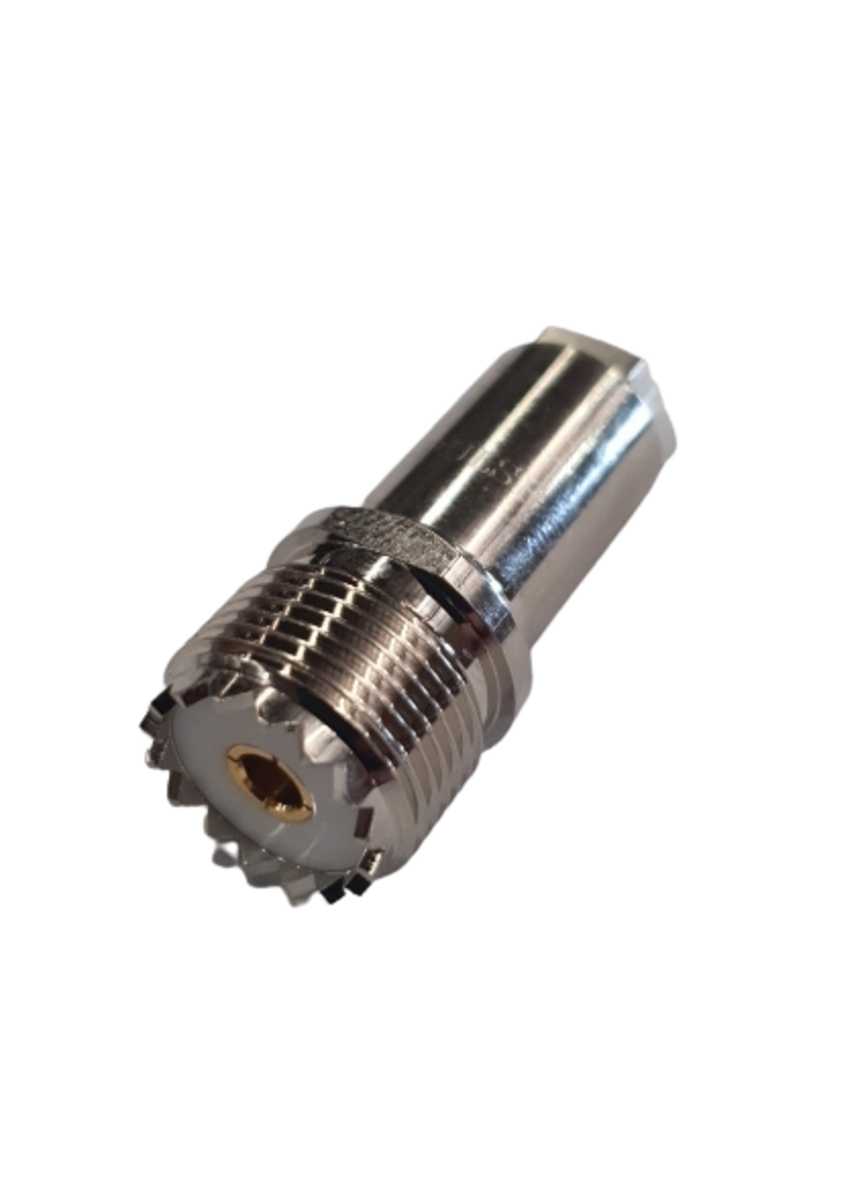

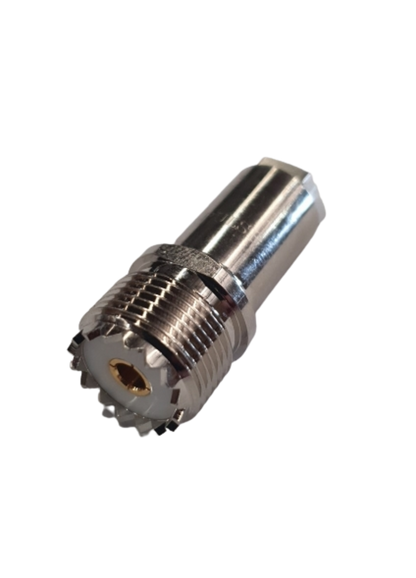

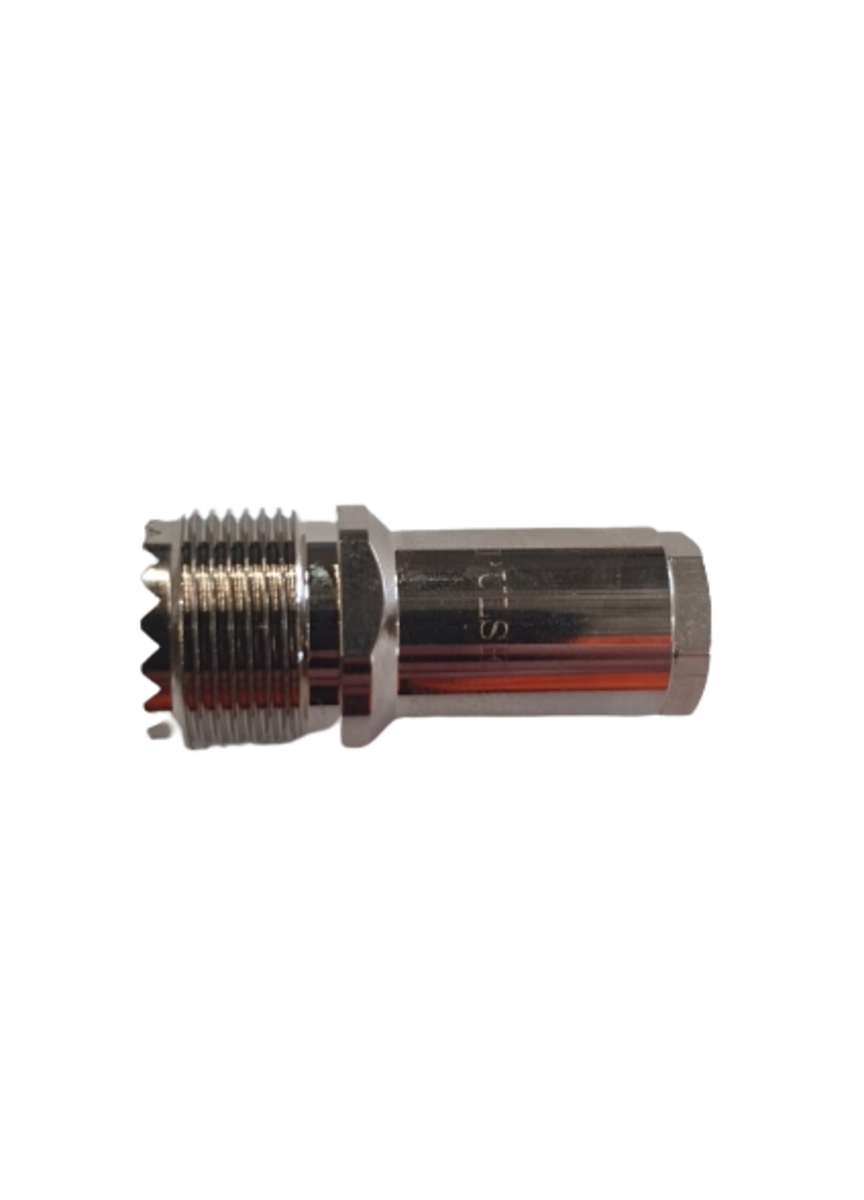

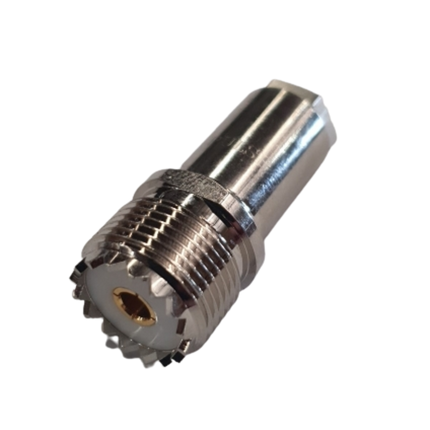

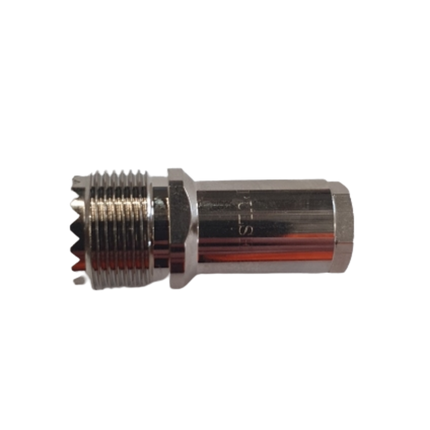

Pulse UHF-42 UHF-Female Connector, Solder/Clamp - RG141, RG303 and RG58 Cables

Pulse UHF-42 UHF-Female Connector, Solder/Clamp - RG141, RG303 and RG58 Cables

Available

Brand:
Item ID:
168018355
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
UHF-42
Send Request for Quote (RFQ) Discount Offers
The Pulse UHF-42 UHF-Female Connector is designed for versatile RF applications, providing a reliable connection for RG141, RG303, and RG58 cables.
Regular price $15.75
Regular price $0.00 Sale price $15.75
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse UHF-42 UHF-Female Connector is designed for versatile RF applications, providing a reliable connection for RG141, RG303, and RG58 cables. This solder/clamp connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features a UHF-Female interface.
  • It is compatible with RG141, RG303, and RG58 cables.
  • The connector supports both solder and clamp methods for secure installation.
  • It ensures optimal signal transmission with minimal loss.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG141, RG303, and RG58 cables.

In the Box:

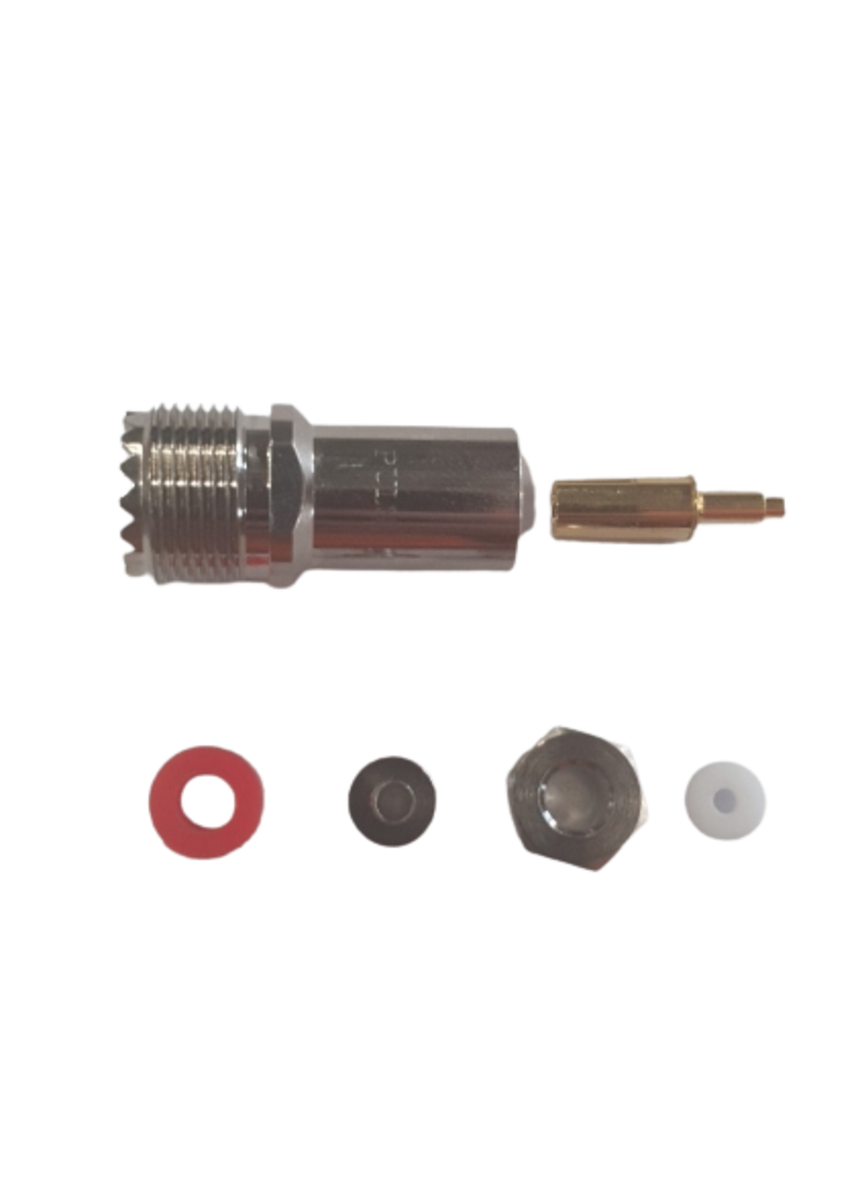

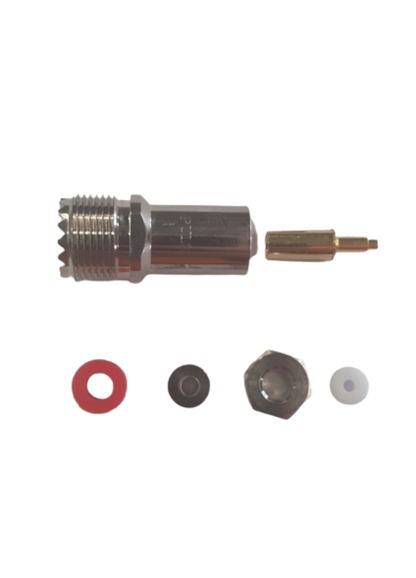

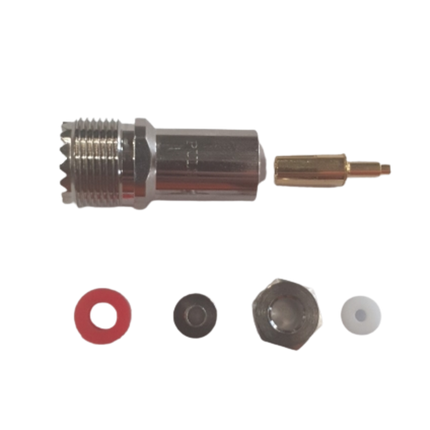

  • 1 x UHF-42 UHF-Female Connector, Solder/Clamp.

Documents:

Pulse UHF-42 Connector - Datasheet

Product Specifications

MPN UHF-42
Brands Pulse
Cable retention 40 lbs min
Cable supported RG58/U, RG141/U, RG303/U
Cable type RG58
Cable type connectors RG58
Centre conductor Solder
Centre contact Solder
Component type Connector
Connector UHF(F)
Connector end a UHF (F)
Coupling nut retention 100lbs Max
Durability 500 matings
Height 2
Impedance ohm 50
Inner attachment Solder
Length 4
Max frequency 1 GHz
Max frequency mhz 300
Min frequency mhz 0
Mounting angle Straight
Outer contact Clamp
Prep toolset Other
Salt spray MIL-STD-101 Test Cond B
Temperature range -65?to 165?C
Thermal shock MIL-STD-107 Test Cond B
Vibration MIL-STD-202 Test Cond B
Width 2
