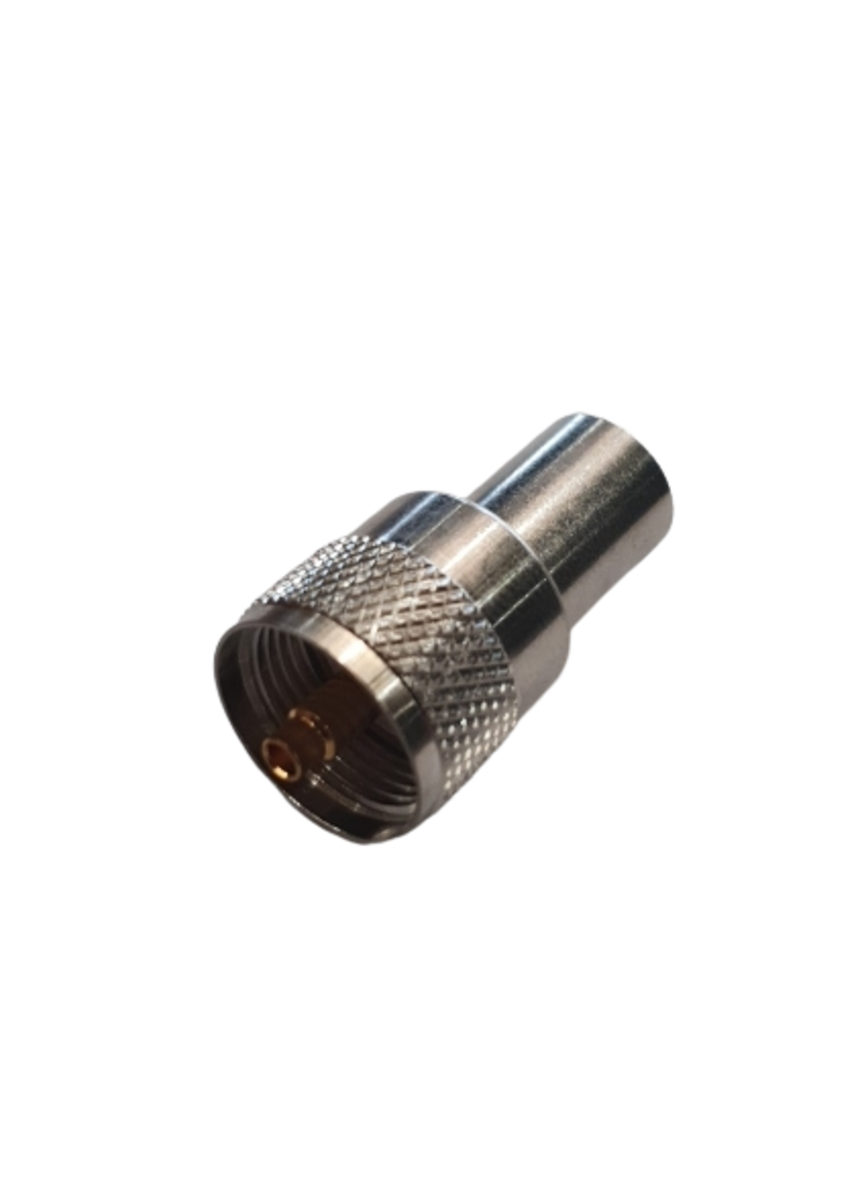

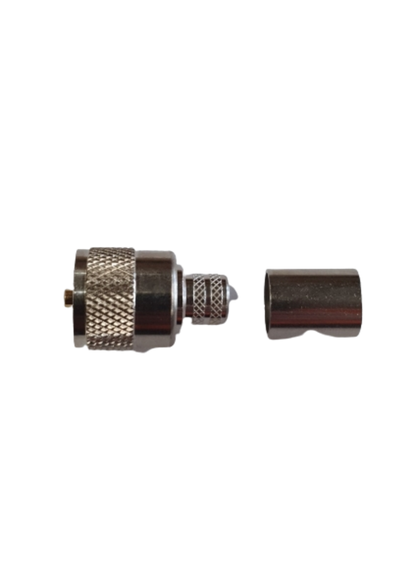

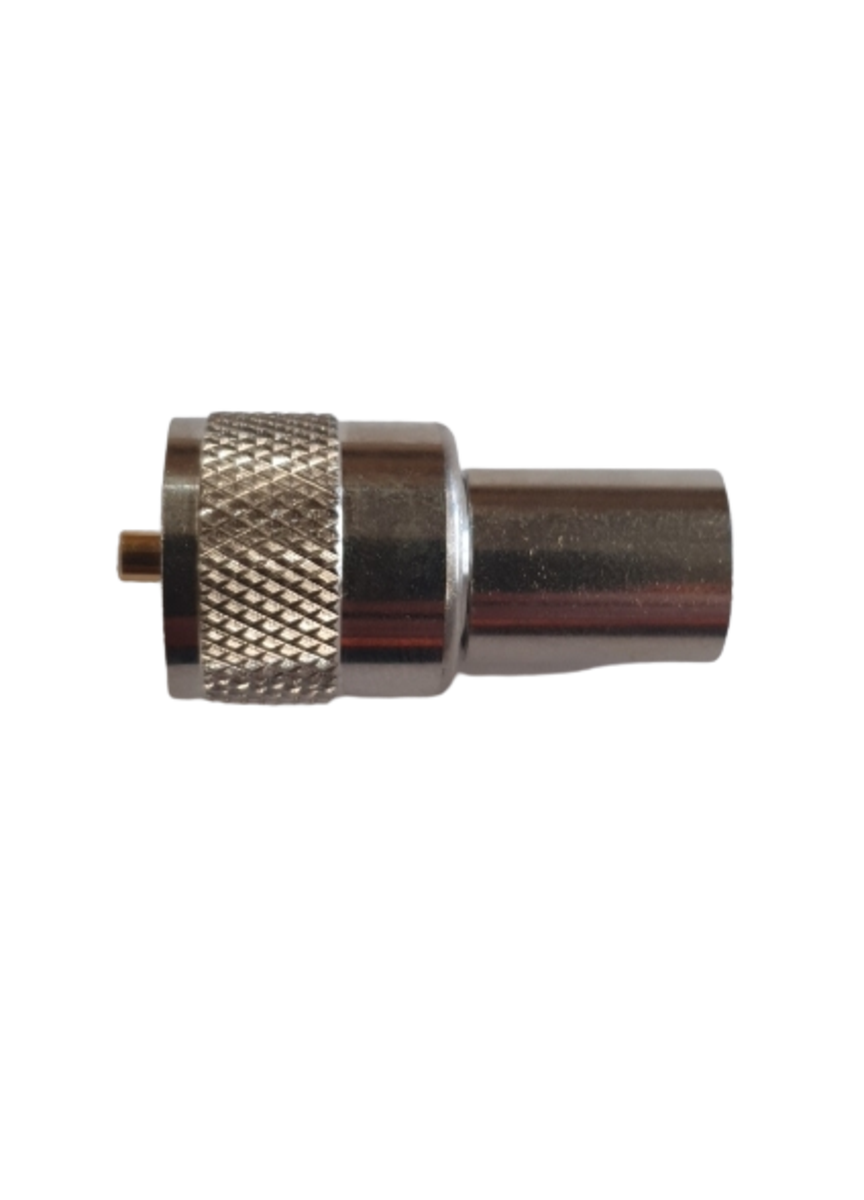

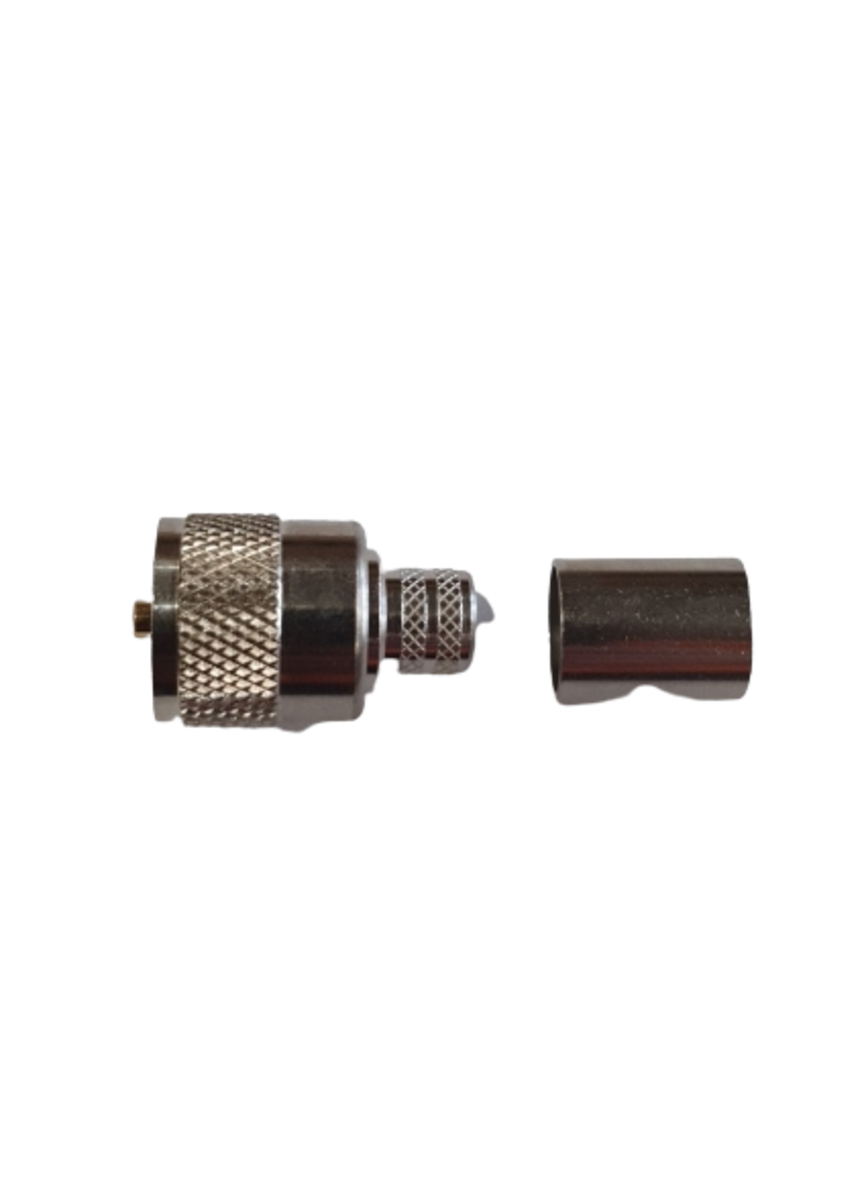

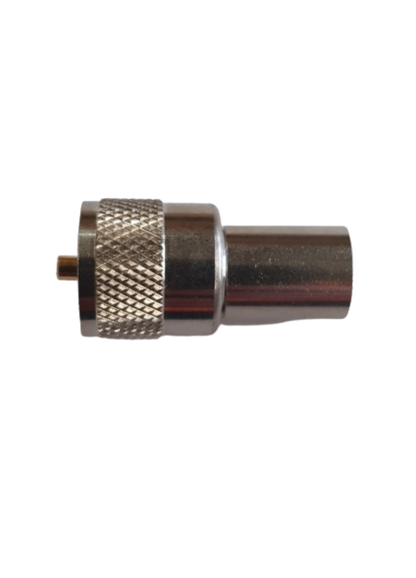

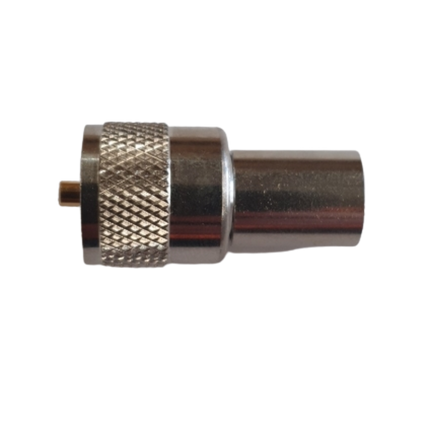

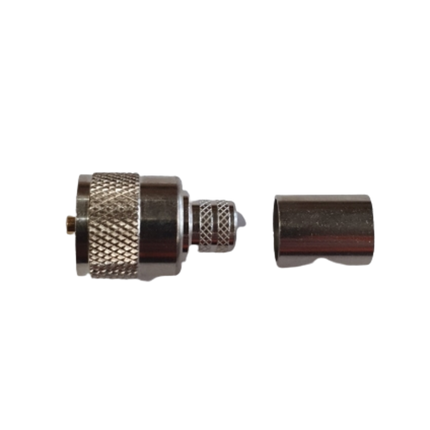

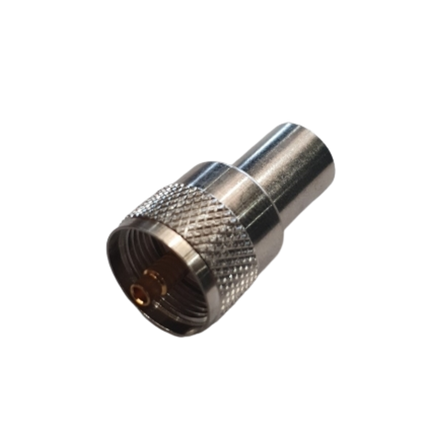

Pulse UHF-46 UHF-Male Connector, Crimp - RG213 Cable

Pulse UHF-46 UHF-Male Connector, Crimp - RG213 Cable

Available

Brand:
Item ID:
168018357
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
UHF-46
Send Request for Quote (RFQ) Discount Offers
The Pulse UHF-46 UHF-Male Connector is designed for high-performance RF applications, providing a reliable connection for RG213 cables.
Regular price $9.50
Regular price $0.00 Sale price $9.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse UHF-46 UHF-Male Connector is designed for high-performance RF applications, providing a reliable connection for RG213 cables. This connector ensures secure and stable connections, making it suitable for a wide range of RF systems.

Product Features:

  • This connector features UHF-Male to RG213 cable compatibility.
  • It is designed for crimping, providing a secure and stable installation.
  • The connector ensures optimal signal transmission with minimal loss.
  • Centre contact is soldered for a robust connection.
  • Outer contact is crimped for ease of installation.
  • Mating is achieved with a 5/8" - 24 threaded coupling.
  • Durability rated for 500 matings.

Application Areas:

  • This connector is ideal for use in RF communication systems.
  • It is suitable for broadcast, telecom, and networking applications.
  • The connector can be used in instrumentation and testing environments.
  • It is perfect for applications requiring secure and stable connections with RG213 cables.

In the Box:

  • 1 x UHF-46 UHF-Male Connector, Crimp - RG213 Cable.

Documents:

Pulse UHF-46 Connector - Datasheet Pulse UHF-46 Connector - Product Overview

Product Specifications

MPN UHF-46
Brands Pulse
Cable retention 40 lbs min
Cable supported RG213/U
Cable type RG213
Cable type connectors RG213
Centre contact Solder
Component type Connector
Connector UHF(M)
Connector end a UHF (M)
Coupling nut retention 100lbs Max
Durability 500 matings
Height 2
Impedance ohm 50
Inner attachment Crimp
Length 4
Mating 5/8" - 24 threaded coupling
Max frequency mhz 300
Min frequency mhz 0
Mounting angle Straight
Outer contact Crimp
Prep toolset RCT-213
Salt spray MIL-STD-101 Test Cond B
Thermal shock MIL-STD-107 Test Cond B
Vibration MIL-STD-202 Test Cond B
Width 2
