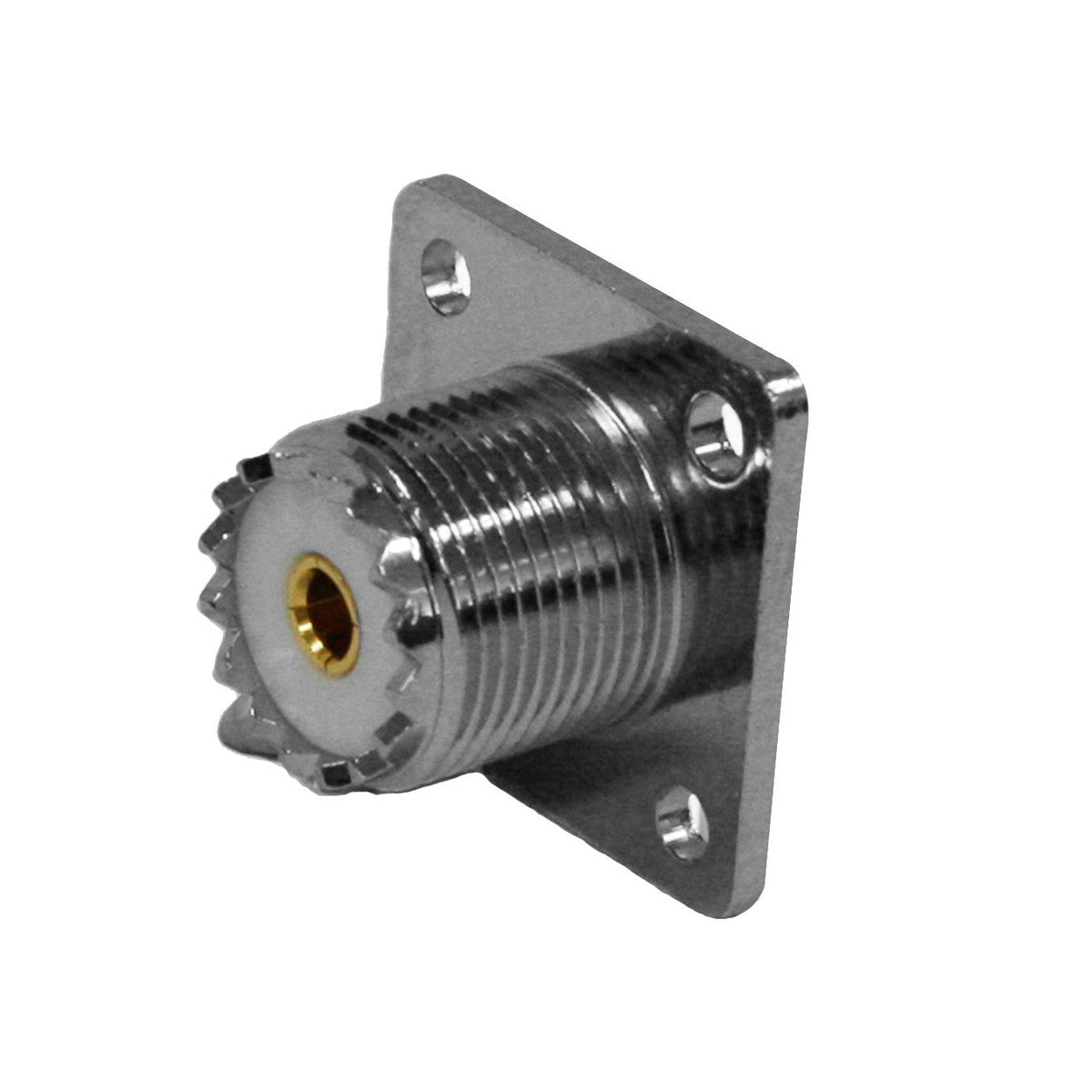

Pulse UHF-60 UHF-Female Connector, Solder - Flange Mount 4 Hole

Pulse UHF-60 UHF-Female Connector, Solder - Flange Mount 4 Hole

Available

Brand:
Item ID:
168018224
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
UHF-60
Send Request for Quote (RFQ) Discount Offers
The Pulse UHF-60 UHF-Female Connector is a solder-type, flange mount connector designed for versatile and reliable RF connections.
Regular price $17.75
Regular price $0.00 Sale price $17.75
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The Pulse UHF-60 UHF-Female Connector is a solder-type, flange mount connector designed for versatile and reliable RF connections. This connector is part of the Pulse UHF Series, known for its robust construction and adaptability across various applications.

Product Features:

  • This connector features a solder-type inner attachment for secure connections.
  • It has a flange mount with 4 holes for stable installation.
  • The connector operates from DC to 300 MHz, making it suitable for a wide range of frequencies.
  • It includes a 5/8”-24 thread coupling for easy and reliable connections.
  • The design is general-purpose and non-constant impedance.
  • The durable construction ensures long-lasting performance.

Application Areas:

  • This connector is ideal for antenna connections for CB radios.
  • It is suitable for public address systems.
  • The connector can be used in audio and video equipment.
  • It is perfect for mobile radio and test equipment.
  • The connector is also applicable in general RF communication systems.

In the Box:

  • 1 x UHF-60 UHF-Female Connector (Solder - Flange Mount 4 Hole).

Documents:

Pulse UHF-60 UHF-Female Connector - Datasheet

Product Specifications

MPN UHF-60
Brands Pulse
Cable supported Other
Cable type connectors Solder Pot Terminal
Centre conductor Solder pot
Component type Connector
Connector UHF(F)
Connector end a UHF (F)
Height 2
Impedance ohm 50
Inner attachment Solder
Length 4
Max frequency mhz 300
Min frequency mhz 0
Mounting angle Other
Prep toolset Other
Width 2
