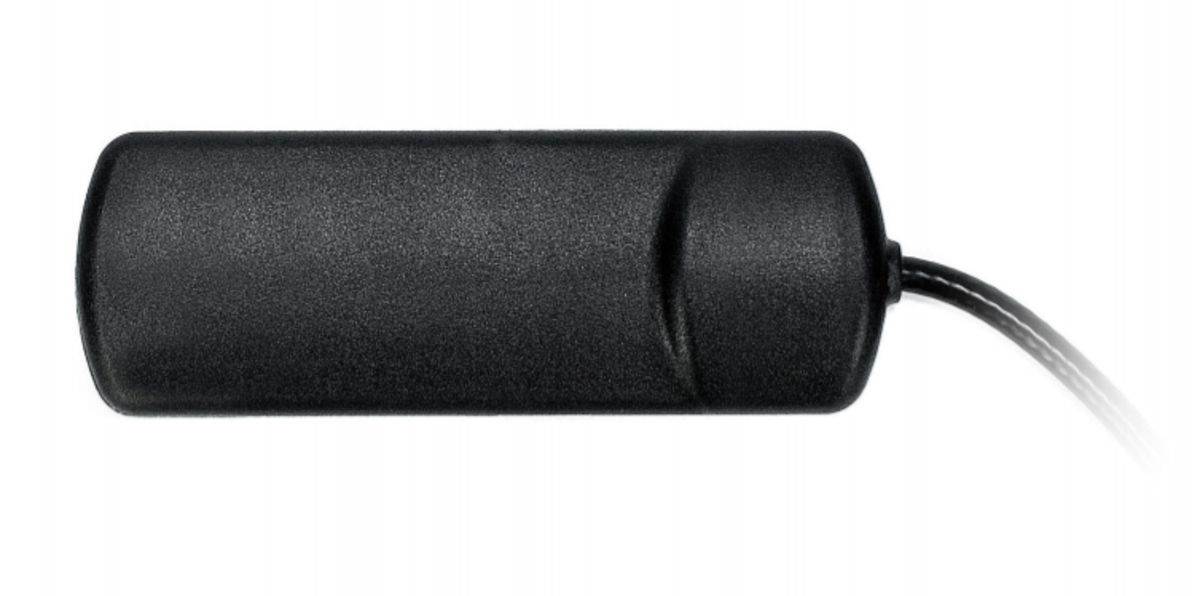

RFI 2.4 and 5.0 GHz Internal Glass Mount Antenna; 5.0m SMA(M), is suitable for mounting inside a vehicles windscreen using the attached double-sided foam tape. Its slim, black, UV stable radome and low profile, blend effortlessly into any environment. The 5.0m coaxial cable, terminated with a SMA male connector, provides flexibility and reliability.
Features:
-
Dual-Band Operation: Operates on both 2.4 GHz and 5.0 GHz ISM bands, offering versatility for various WiFi applications.
-
Slim Design: Features a slim black radome with an extremely small profile, ensuring discreet integration into diverse environments.
-
Easy Installation: Mounts inside vehicle windshields effortlessly with attached double-sided foam tape.
-
5.0m Coaxial Cable: Provides flexibility in placement, terminated with a reliable SMA male connector.
-
Custom Connectors: Customize the antenna to the need with available custom connectors (MOQ may apply).
Electrical Specifications:
- Standards: WiFi, BT, ZigBee, ISM
- Bands GHz: 2.4 and 5.0
- Frequency MHz: 2410-2590 and 4920-5925
- Gain dBi (peak): 3.4 and 2.6
- VSWR: 2.0:1
- Impedance Ω: 50
- Radiation Pattern: Omni-directional
- Power W (max.): 25
Mechanical Specifications:
- Radome: Black ABS UV Stable
- Mounting: Adhesive Mount

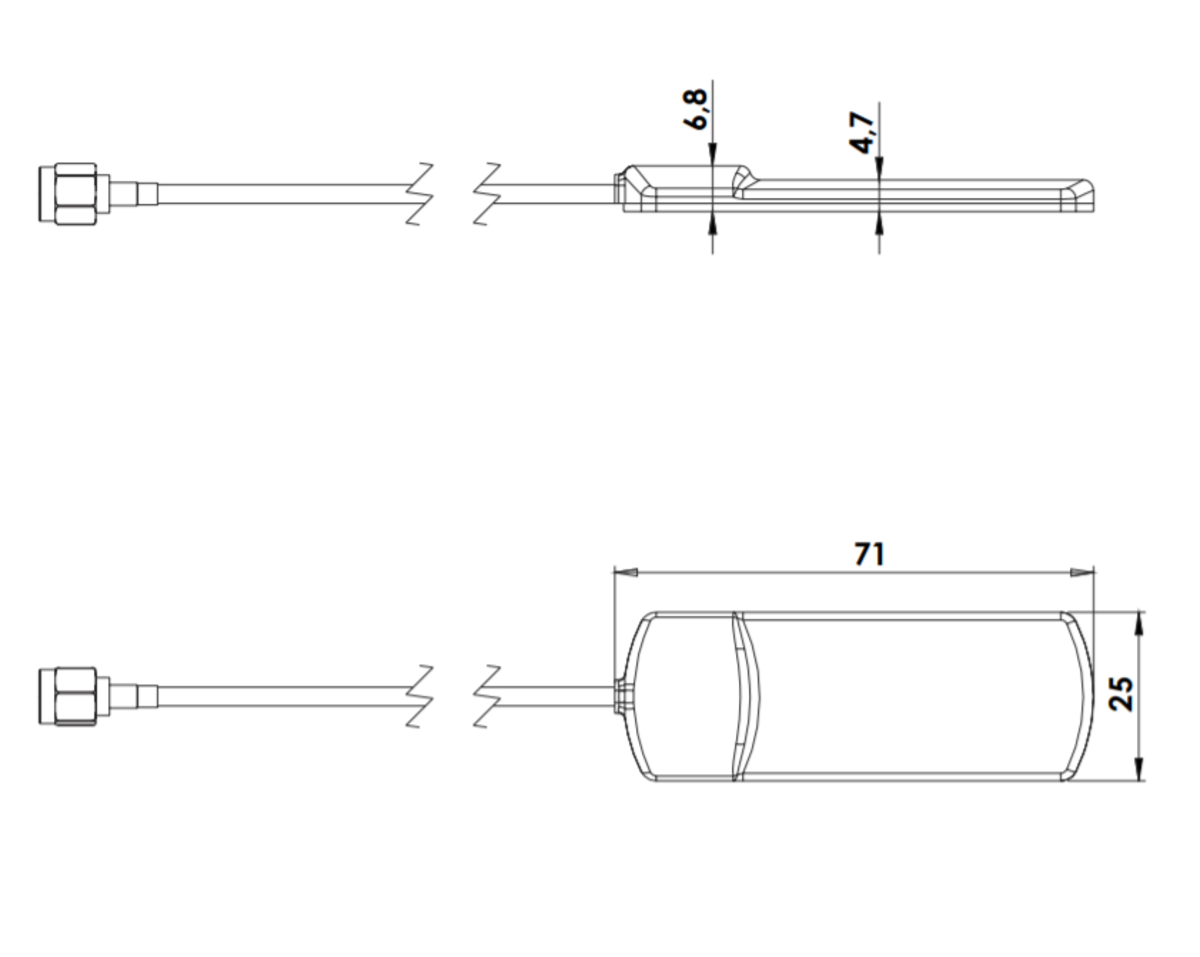

- Dimensions mm: 71 x 25 x 7
- Cable / Connector: 5M LMR100 / SMA male
- Operating Temp. °C: -40 to +85
Documents:
RFI T25-5M-SMA Antenna - Datasheet
