RFI T25-5M-QMA WiFi Terminal Antenna, 2410-5925 MHz, 2.4/5 dBi, Glass Mount, 5m, QMA-Male

RFI T25-5M-QMA WiFi Terminal Antenna, 2410-5925 MHz, 2.4/5 dBi, Glass Mount, 5m, QMA-Male

Available

Brand:
Item ID:
168014336
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
T25-5M-QMA
Send Request for Quote (RFQ) Discount Offers
RFI 2.4 and 5.0 GHz Internal Glass Mount WiFi Antenna; 5.0m LL100 QMA(M) - featuring dual-band operation, and easy installation for seamless communication.
Regular price $83.30
Regular price $0.00 Sale price $83.30
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

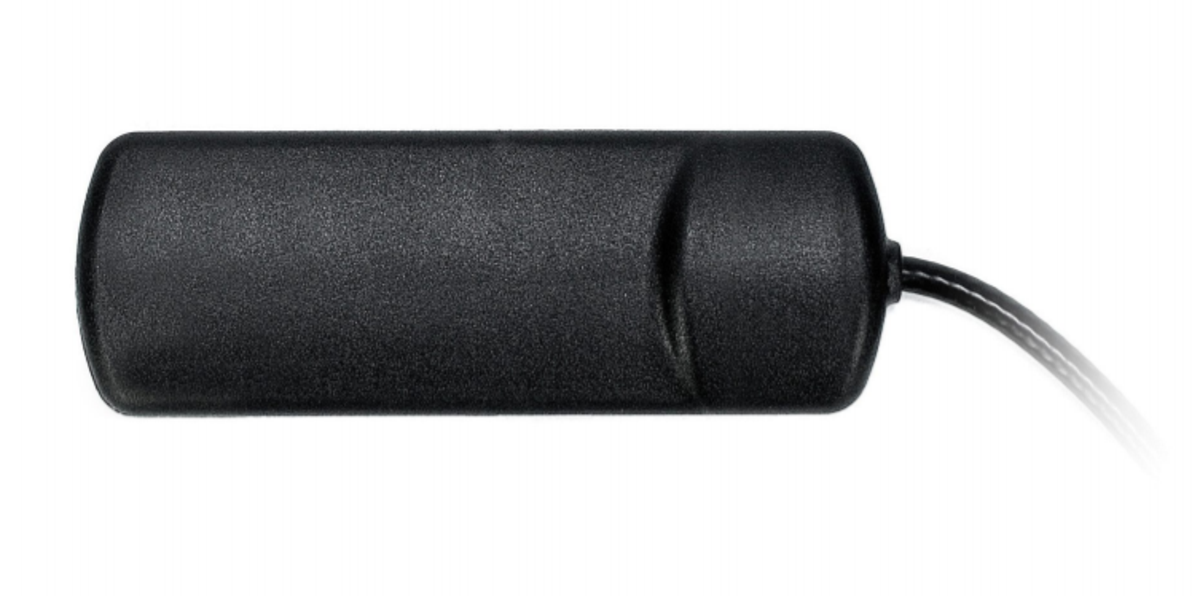

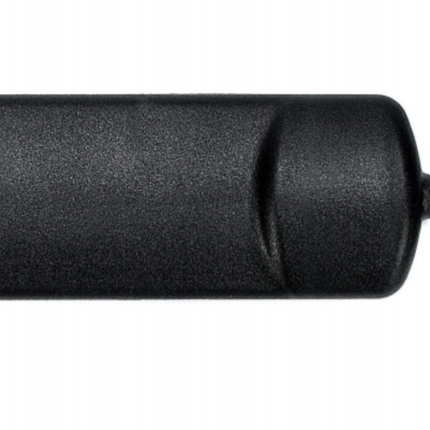

RFI 2.4 and 5.0 GHz Internal Glass Mount WiFi Antenna; 5.0m LL100 QMA(M), is suitable for mounting inside a vehicles windscreen using the attached double-sided foam tape. Its slim black radome and low profile blend effortlessly into any environment. The 5.0m coaxial cable, terminated with a QMA male connector, provides flexibility and reliability.

Features:

  • Dual-Band Operation: Operates on both 2.4 GHz and 5.0 GHz ISM bands, offering versatility for various WiFi applications.
  • Slim Design: Features a slim black radome with an extremely small profile, ensuring discreet integration into diverse environments.
  • Easy Installation: Mounts inside vehicle windshields effortlessly with attached double-sided foam tape.
  • 5.0m Coaxial Cable: Provides flexibility in placement, terminated with a reliable QMA male connector.
  • Custom Connectors: Customize the antenna to the need with available custom connectors (MOQ may apply).

Electrical Specifications:

  • Standards: WiFi, BT, ZigBee, ISM
  • Bands GHz: 2.4 and 5.0
  • Frequency MHz: 2410-2590 and 4920-5925
  • Gain dBi (peak): 3.4 and 2.6
  • VSWR: 2.0:1
  • Impedance Ω: 50
  • Radiation Pattern: Omni-directional
  • Power W (max.): 25

Mechanical Specifications:

  • Radome: Black ABS UV Stable
  • Mounting: Adhesive Mount

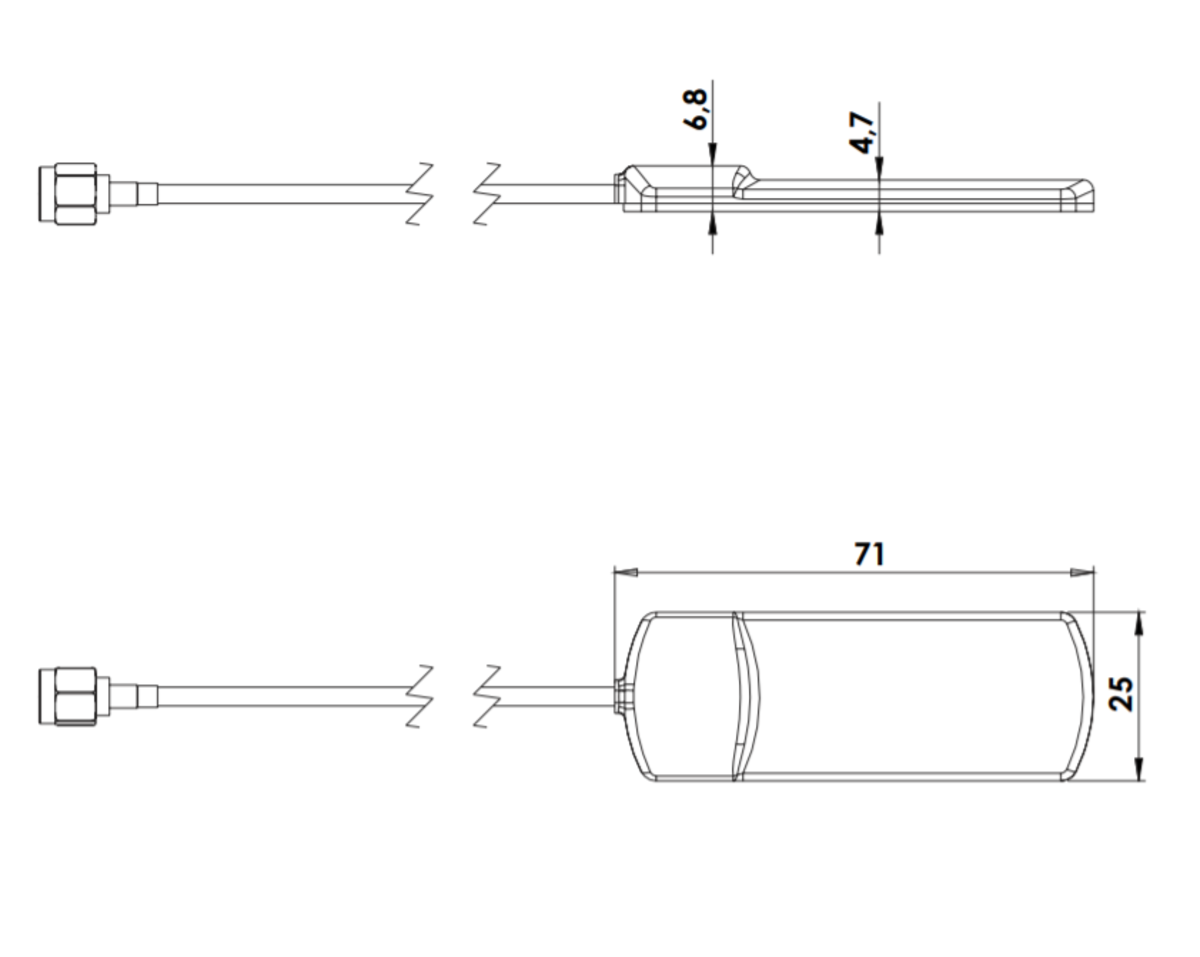

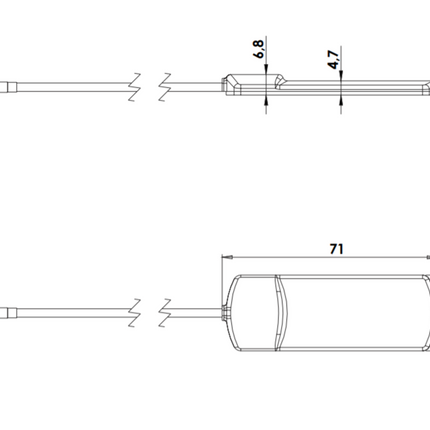

  • Dimensions mm: 71 x 25 x 7
  • Cable / Connector: 5M LMR100 / SMA male
  • Operating Temp. °C: -40 to +85

Documents:

RFI T25-5M-QMA Antenna - Datasheet

Product Specifications

MPN T25-5M-QMA
Antenna application Terminal Antenna, Vehicle Antenna
Antenna cable type LMR100
Antenna configuration SISO
Antenna features Omnidirectional
Antenna port connectors QMA (M)
Antenna type Omni
Band WiFi
Brands RFI
Cable and connector 5m MLR100 terminated with QMA(M) Connector
Cable length m 5
Construction Black UV Stable ABS
Coverage type Omni-directional
Frequency mhz 2410-2590|4920-5925
Height 0.7
Installation type Device mounting
Length 7.1
Low pim No
Max frequency mhz 5000
Max gain dbd dbi 2.6
Mimo support No
Min frequency mhz 2400
Min gain dbd dbi 3.4
Mount supported Adhesive mount
Mount supported detailed Adhesive mount
No of antenna ports 1
Nominal gain dbi 2.4 / 5.0
Packaging Plastic Bag
Polarisation Vertical
Power w 25
Technologies supported Wi-Fi
Tuned bandwidth Full
Vswr <2.0:1
Width 2.5
