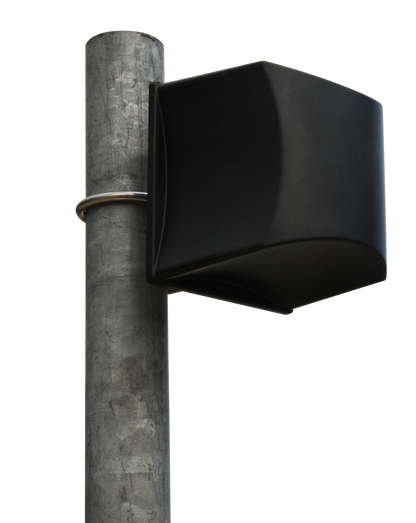

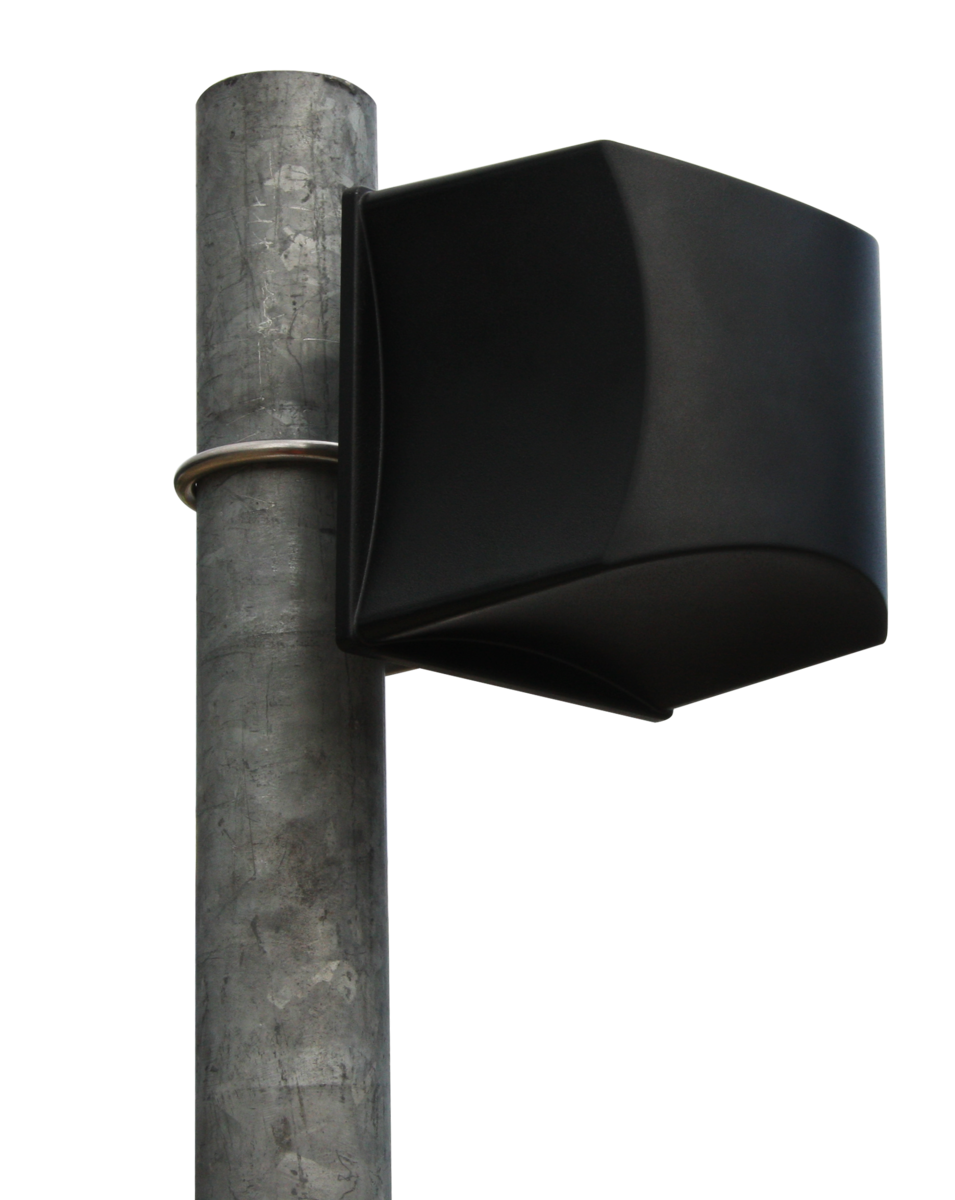

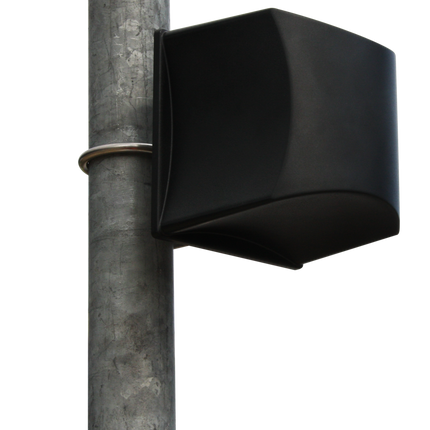

RFI PA-WIFI-N Directional Panel Antenna, 2.4 and 5 GHz, 12 dBi, Integrated N-Female

RFI PA-WIFI-N Directional Panel Antenna, 2.4 and 5 GHz, 12 dBi, Integrated N-Female

On backorder

Brand:
Item ID:
168014307
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
PA-WIFI-N
Send Request for Quote (RFQ) Discount Offers
RFI 2.4 and 5.0 GHz WiFi Directional Panel Antenna; Integrated N(F) provide extended coverage for both 2.4 GHz & 5.8 GHz wireless networks.
Regular price $143.50
Regular price $0.00 Sale price $143.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

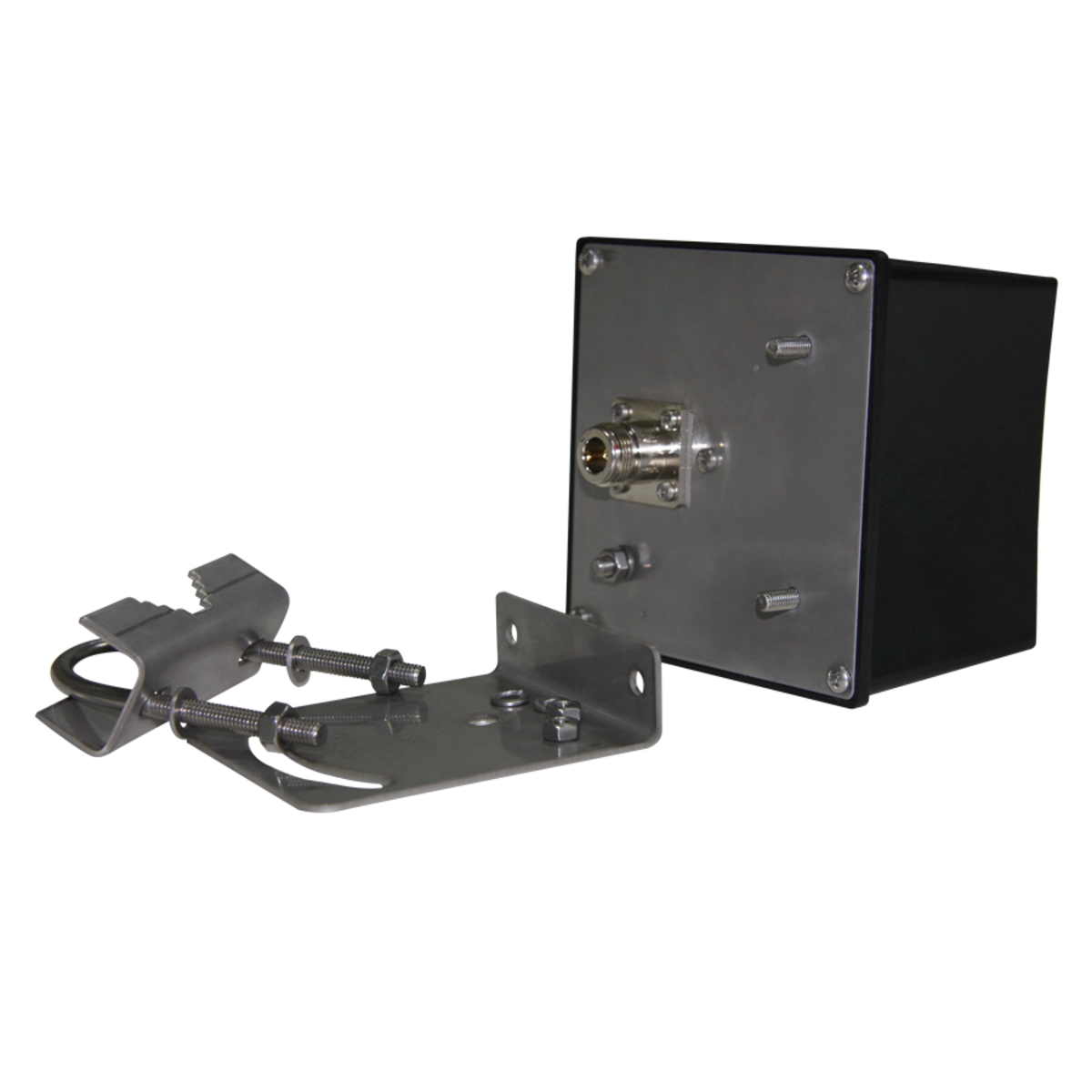

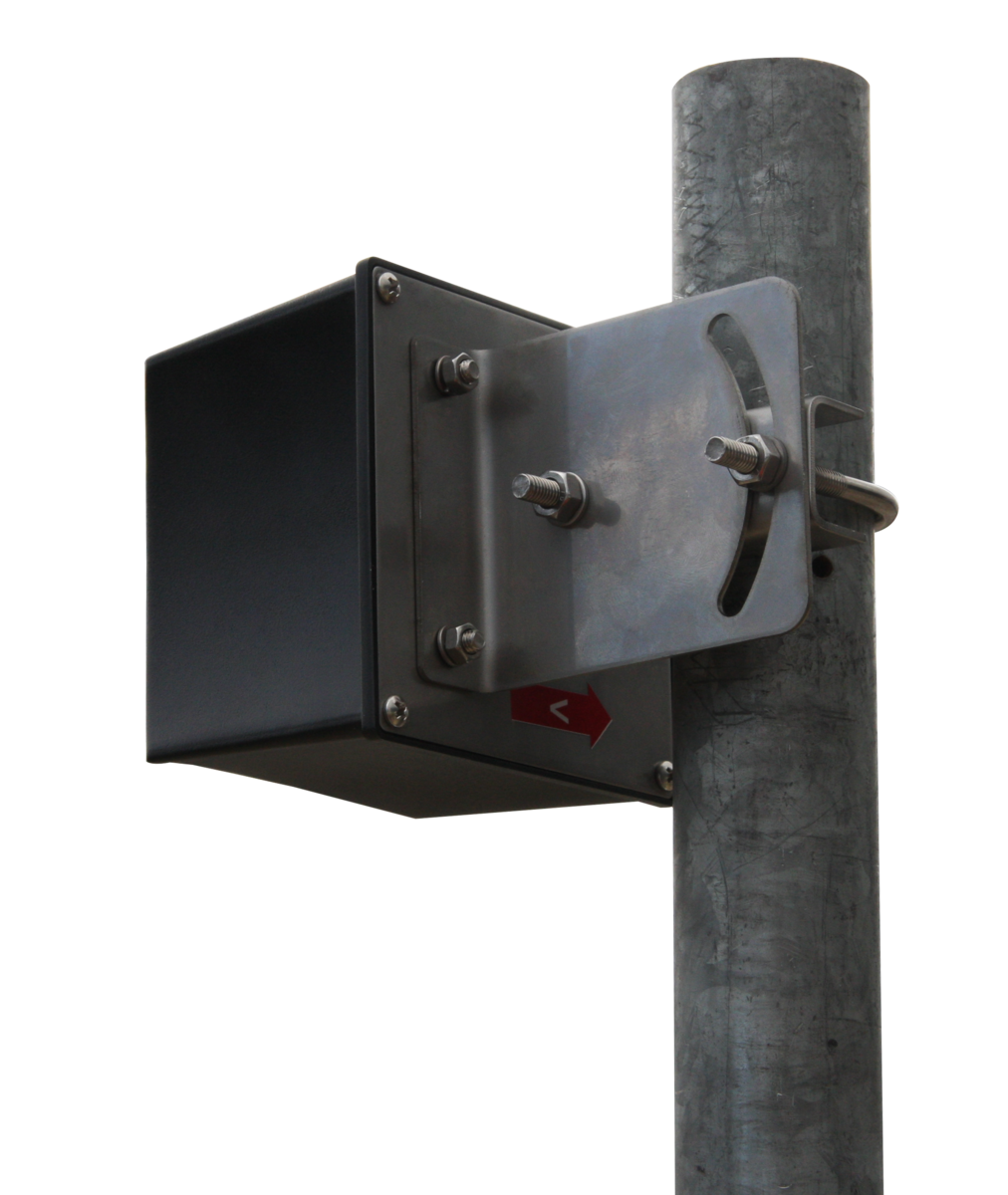

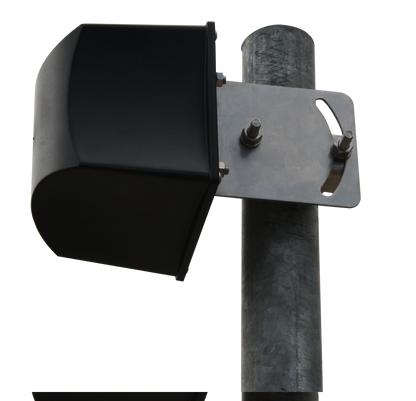

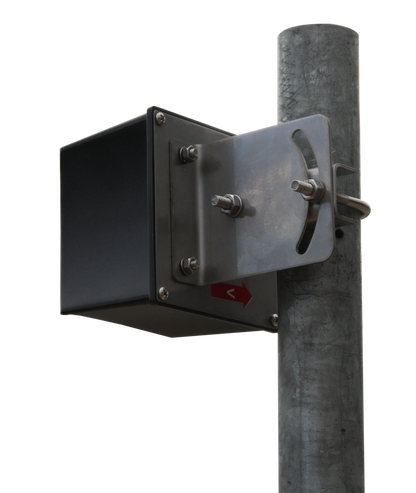

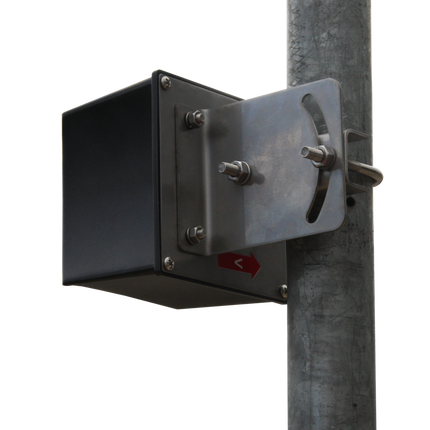

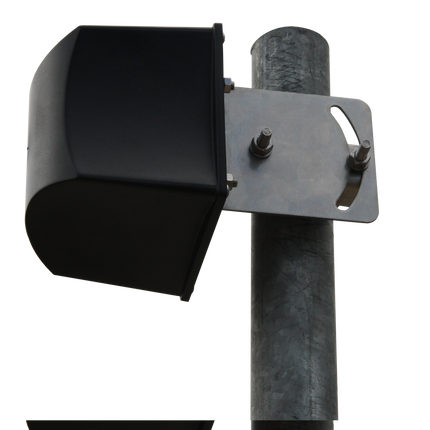

The PA-WIFI-N includes a pole mount which includes angle adjustment focusing signal in a specific direction. It has an integrated N type female connector on the back of the unit which allows customer cable installation.

Features:

  • Compact radome
  • Rugged construction
  • Easy installation
  • Adjustable pole mount bracket (45 mm max. / 23 mm min.)

Documents:

RFI PA-WIFI-N Antenna - Datasheet

Product Specifications

MPN PA-WIFI-N
Antenna application Terminal Antenna, Base Station Antenna
Antenna port connectors N (F)
Antenna type Directional SISO
Band WiFi
Brands RFI
Cable and connector Integrated N female connector
Construction ABS black radome with stainless steel back plate
Coverage type Directional
Frequency band Dual Band 2.4 & 5.8 GHz WiFi
Height 10
Horizontal beamwidth 40
Ingress protection ip IP65
Installation type External mounting
Ip rating IP65
Length 20
Low pim No
Max frequency mhz 5800
Max gain dbd dbi 12
Mimo support No
Min frequency mhz 2400
Min gain dbd dbi 12
Mount supported Clamp mount
Mount supported detailed U-bolt clamp
No of antenna ports 1
Nominal gain dbi 12
Packaging Carton
Power w 25
Technologies supported Wi-Fi
Termination Integrated N-type female
Tuned bandwidth Full. No tuning required
Vertical beamwidth 40
Vswr <3.0:1
Width 10
