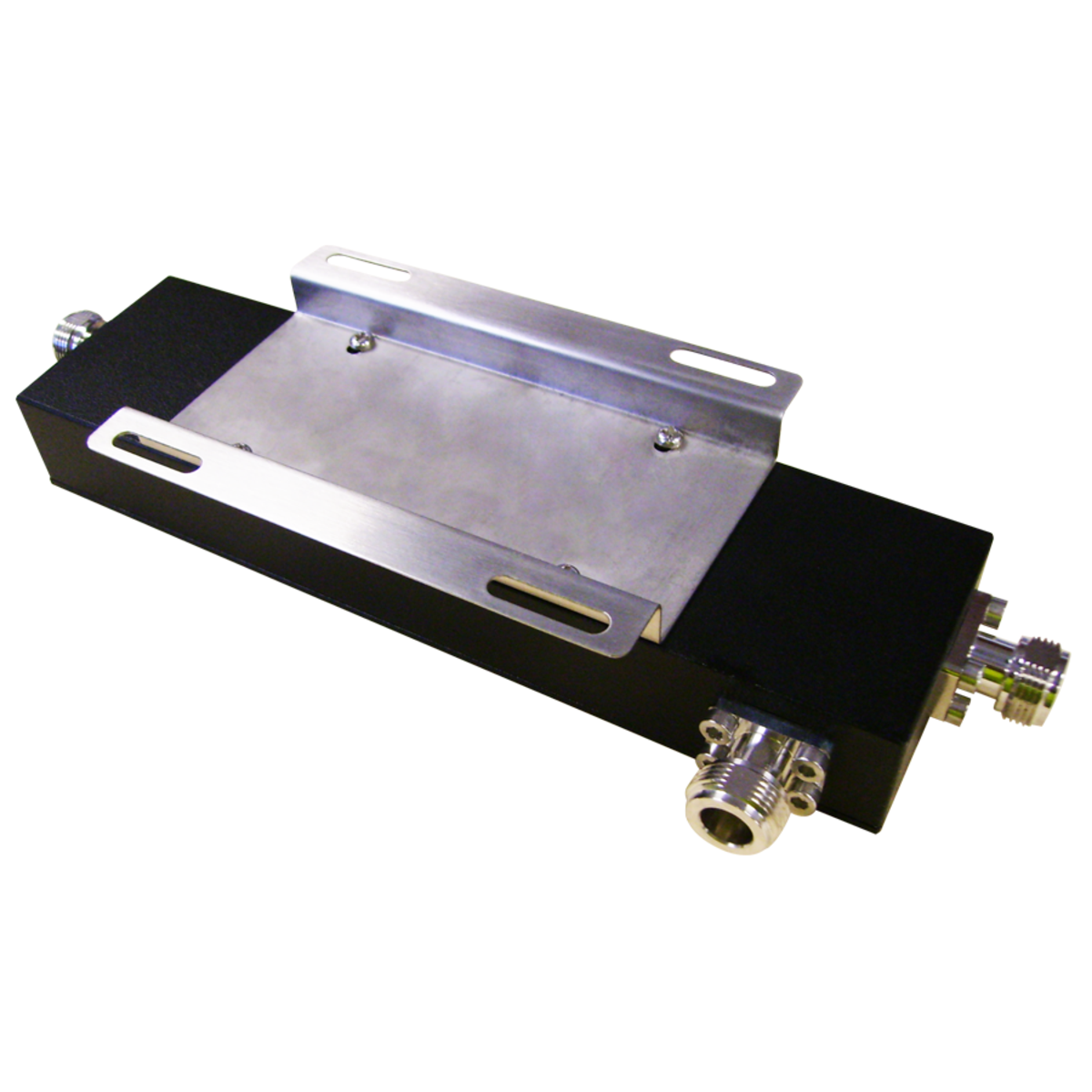

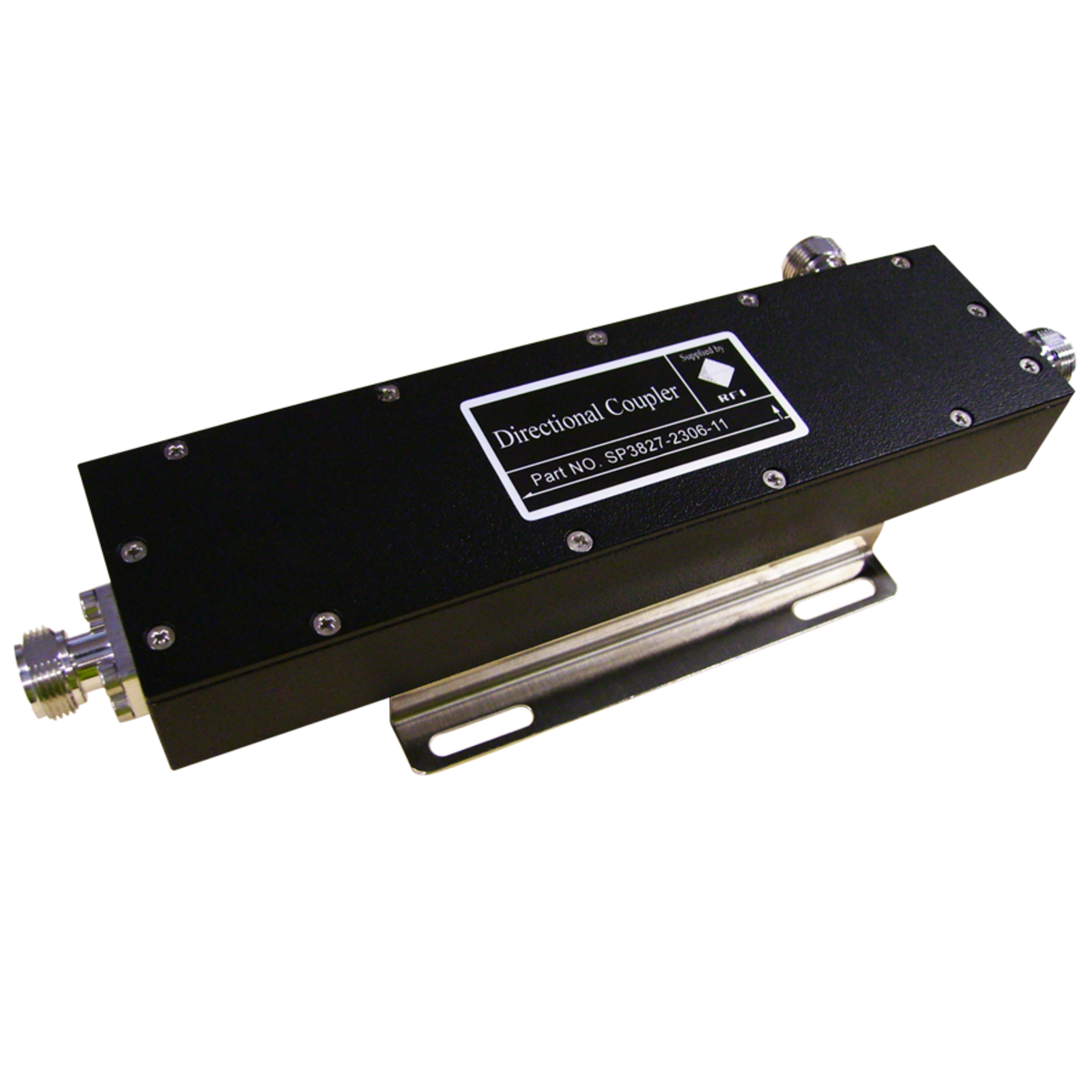

RFI SP3827-2330-11 Directional Coupler, 3-Port, 30 dB, 380-2700MHz, 200W, N-Female

RFI SP3827-2330-11 Directional Coupler, 3-Port, 30 dB, 380-2700MHz, 200W, N-Female

Brand:
Item ID:
168018963
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SP3827-2330-11
Send Request for Quote (RFQ)
RFI 3-Port Multiband UHF and Cellular DAS Directional Couplers are used in a variety of RF combining, sampling and power splitting applications.
Regular price $363.00
Regular price $0.00 Sale price $363.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI 3-Port Multiband UHF and Cellular DAS Directional Couplers

Features:

  • Multi-Band 380-2700 MHz covering UHF and Cellular bands.
  • Low PIM ≤ -150 dBc (3rd Order 2x43 dBm carriers).
  • Primarily used for optimising feeder cable signal distribution.
  • Suitable for use with simplex and duplex channels, analogue or digital radio communications.
  • Optional 7.16DIN Termination Connector SP3827-23xx-DIN range available.
  • Suitable for use in multi-carrier environments.
  • Wide range of coupling values.
  • Environmental IP 67 Rating.
  • Includes S/S Mounting bracket.

Documents:

RFI SP3827-2330-11 Directional Coupler - Datasheet
