RFI XG887 3G Vehicle Antenna, 820-960 MHz, 3 dB, 5m, FME-Female, MPL-Male

    RFI XG887 3G Vehicle Antenna, 820-960 MHz, 3 dB, 5m, FME-Female, MPL-Male

      Product form

      RFI 3G 3 dB External Glass Mount (820-960 MHz) Antenna; 5m FME(F); MPL(M) Adaptor designed for enhanced performance in the 3G850 and GSM900 cellular bands

      Brand
      RFI
      Export
      Accepted
      Item ID
      168014351
      MPN
      XG887
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $92.25

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

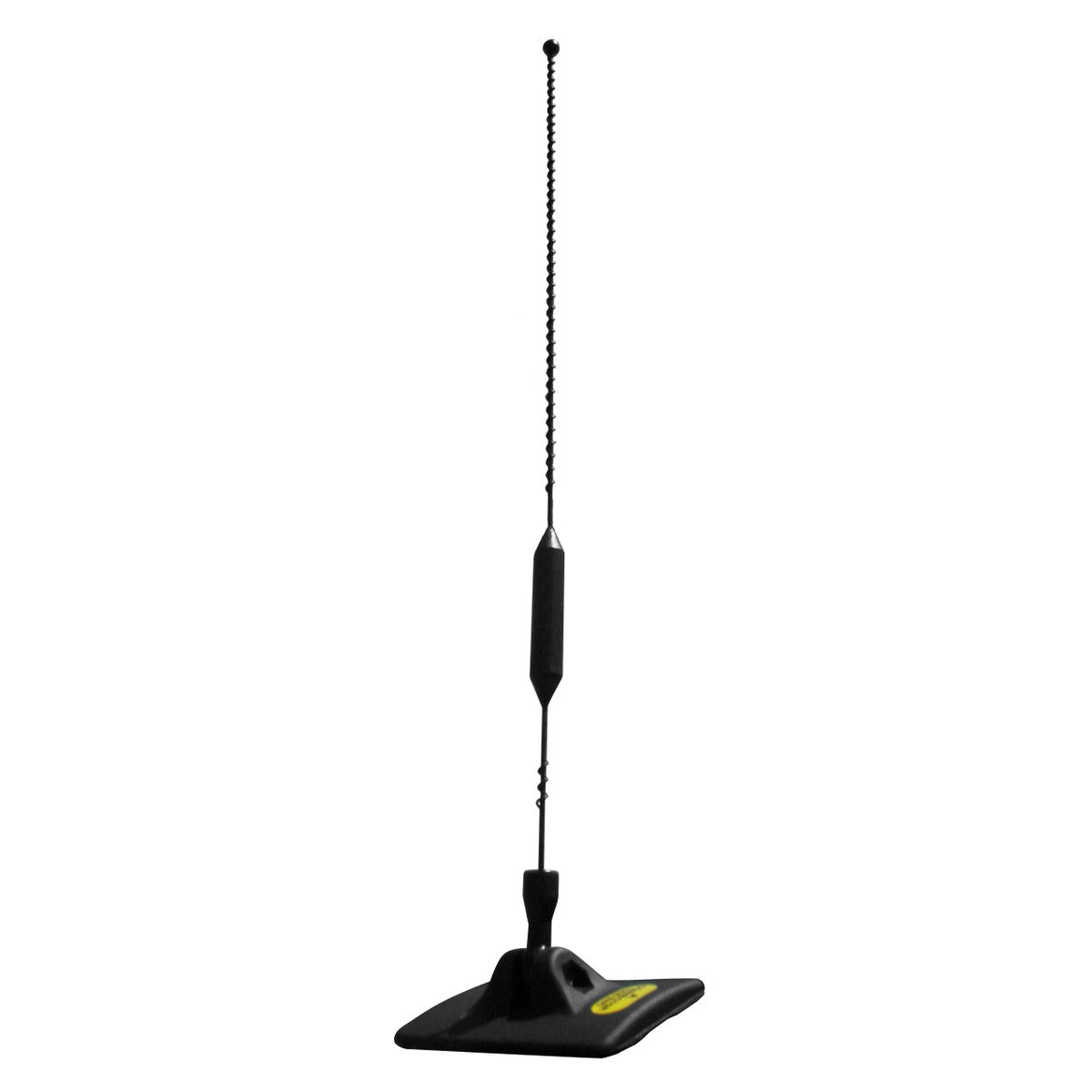

        The XG887 utilises a slot radiator in the coupling box, with a patch element housed in the mounting foot. The unique X-shaped patch element provides effective coupling of the multiple bands into the whip element, which has a fully moulded phasing coil. The XG887 is supplied complete with a pre-terminated lead of low loss, fully shielded coaxial cable.
        • Enhanced multi band performance in 3G850 and GSM900 bands
        • Extended bandwidth coverage to suit 800 MHz trunking applications
        • Fully shielded low loss FME pre-terminated cable with A-87 (FME-MPL) adaptor supplied
        • Available with additional adaptors on request

        Documents:

        RFI XG887 Cellular Antenna - Datasheet
        RFI XG887 Cellular Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length (cm) 38
        Width (cm) 5
        Height (cm) 3
        Antenna Application Vehicle Antenna
        Antenna Cable Type RG58
        Antenna Features Omnidirectional
        Antenna Port Connectors FME (F), MPL (M)
        Antenna Type Ground Independent, Glass Mounted
        Band 820-960 MHz
        Cable Length (m) 5
        Coverage Type Omni-directional
        Frequency [MHz] 820 to 896|890 to 960MHz
        Frequency Band Designed on order
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 2170
        Max Gain (dBd/dBi) 3
        MIMO Support No
        Min Frequency (MHz) 824
        Min Gain (dBd/dBi) 0
        Mount Supported Magnetic base
        Mount Supported - Detailed Magnetic base
        No. of Antenna Ports 1
        Nominal Gain [dBi] 0 @ 820-825MHz / 3 @ 824-960MHz
        Power [W] 50
        Technologies Supported 2G, 3G
        Tuned Bandwidth Entire specified band < 2.5:1MHz
        Tuning Supplied pre-tuned
        VSWR <2.5:1
        Whip Length mm 322
        Whip Material One piece black chrome plated stainless steel with plastic over moulding
