RFI XG884 3G Vehicle Antenna, Glass Mount, 824-2170 MHz, 3 dB, 5m, FME-Female, MPL(A)

    RFI XG884 3G Vehicle Antenna, Glass Mount, 824-2170 MHz, 3 dB, 5m, FME-Female, MPL(A)

      Product form
      Brand:
      RFI
      Item ID:
      168014350
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      XG884
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI 3G 3 dBi External Glass Mount Antenna (824-2170 MHz); 5m FME(F) MPL(A) designed specifically for 3G850, GSM900/1800 and 3G2100 applications.

      Available

      $100.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

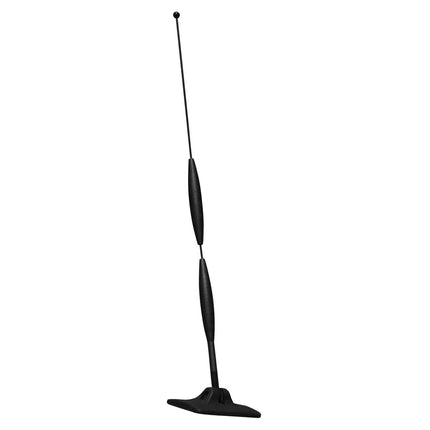

        The XG884 utilises a slot radiator in the coupling box, with a patch element housed in the mounting foot. The patch element is x-shaped to allow the coupling of multiple bands very effectively. The whip element is fully moulded with dual phasing coils, the result being an antenna that provides abundant gain in all bands. Featuring a new-look mounting foot and coupling box, XG884 is supplied complete with a pre-terminated lead of low loss, fully shielded coaxial cable.
        • Operates over 824MHz to 2,170 MHz
        • Fully shielded low loss FME pre-terminated cable with A-87 (FME-MPL) adaptor supplied
        • Available with additional adaptors on request
        • XG884 supplied with 0 dB and 3 dB gain whips

        Documents:

        RFI XG884 Cellular Antenna - Datasheet

        Product Specifications

        MPN XG884
        Antenna application Vehicle Antenna
        Antenna cable type RG58
        Antenna port connectors FME (F), MPL (M)
        Antenna type Ground Independent
        Band 824-960MHz / 1710-2170MHz
        Brands RFI
        Cable length m 5
        Coverage type Omni-directional
        Frequency band Designed on order
        Frequency mhz 824-960|1710-2170
        Height 3
        Installation type Vehicle mounting
        GTIN/EAN 9320110034933
        Length 38
        Low pim No
        Max frequency mhz 2170
        Max gain dbd dbi 3
        Mimo support No
        Min frequency mhz 824
        Min gain dbd dbi 0
        Mount supported Glass mount
        Mount supported detailed Glass mount
        No of antenna ports 1
        Nominal gain dbi 0 or 3 depending on whip used
        Power w 50
        Technologies supported 2G, 3G
        Tuned bandwidth Entire specified band <2.5:1MHz
        Tuning Supplied pre-tuned
        Vswr <2.5:1
        Whip length mm 155 (0dB) / 352 (3dB)
        Whip material One piece black chrome plated stainless steel with plastic over moulding
        Width 5
