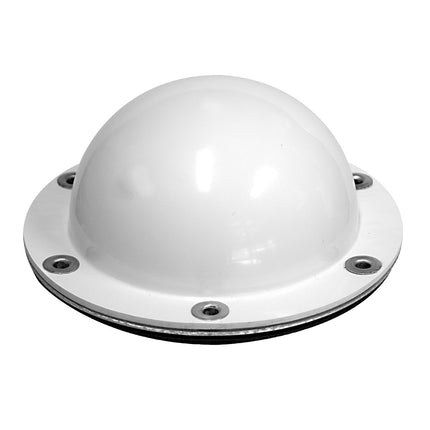

RFI TLA3100 3G Transit Antenna, 824-2170 MHz, 2x 5m, SMA-Male, MCX-Male

    RFI TLA3100 3G Transit Antenna, 824-2170 MHz, 2x 5m, SMA-Male, MCX-Male

      Product form

      RFI 3G/GPS Transit Antenna (824-2170 MHz); 2 X 5.0m SMA(M) MCX(M) is an ideal antenna solution for 3G 850, GSM 900/1800 and 3G 2100 data applications

      Brand
      RFI
      Export
      Accepted
      Item ID
      168014343
      MPN
      TLA3100
      Shipping
      Not available to ship
      Standard Warranty Global Insurance Except USA & Canada

      Sold-out

      $270.42

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI 3G/GPS Transit Antenna (824-2170 MHz); 2 X 5.0m SMA(M) MCX(M) Designed to offer true multi-band performance the TLA3100 is ready for use with the latest NEXT G modems. With a high-impact resistant vacuum-formed ABS radome and neoprene mounting gasket, the TLA3100 can be used for indoor or outdoor applications. . Applications include public vending machines, ATM kiosks, and industrial automotive use . Designed for use on conductive or nonconductive surfaces . TLA3100 model incorporates an integrated GPS antenna

        Product Specifications

        Brand RFI
        Length (cm) 13.5
        Width (cm) 13.5
        Height (cm) 6.1
        Antenna Application Vehicle Antenna
        Antenna Features Omnidirectional
        Antenna Port Connectors SMA (M), MCX
        Antenna Type Low Profile Transit
        Cable And Connector Cellular: 5m 9006 SMA(M) / GPS: 5m 9006 MXC(M) GPS: 5m of RG174 cable with an MCX connector
        Cable Length (m) 5.0
        Cable Type RG174, 9006
        Construction ASA Radome
        Coverage Type Omni-directional
        Frequency [MHz] 824-2170|GPS
        Frequency Band Multi-Band 700-2700 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 2170
        Max Gain (dBd/dBi) 2.0
        MIMO Support No
        Min Frequency (MHz) 824
        Min Gain (dBd/dBi) 2.0
        No. of Antenna Ports 2
        Nominal Gain [dBi] 2
        Power [W] 10.0, 10
        Radome Diameter Mm 135
        Technologies Supported 3G, GPS
        Tuned Bandwidth Full. No tuning required
        VSWR <2.5:1
