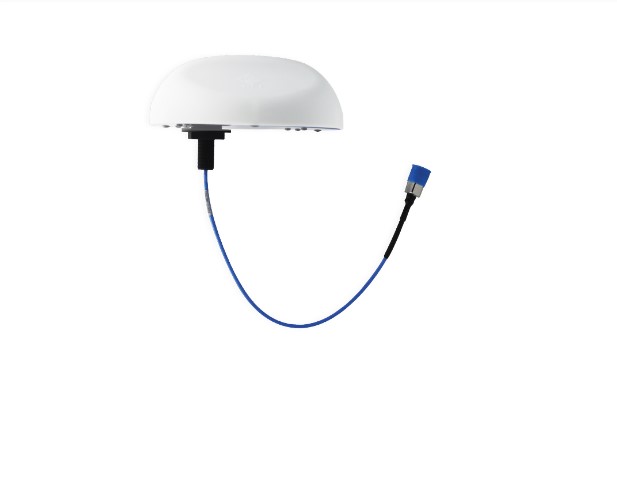

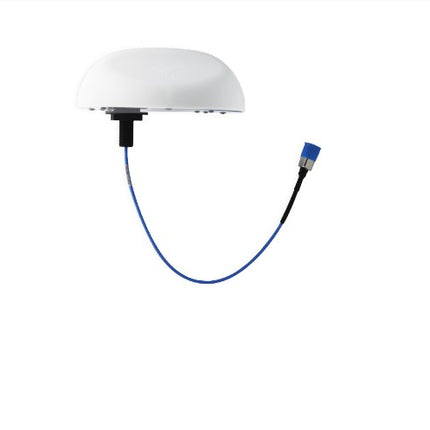

RFI DAS6942-SOC160 Cellular Antenna SISO, -160 dBc, 0.5m, 4.3-10-Female

RFI DAS6942-SOC160 Cellular Antenna SISO, -160 dBc, 0.5m, 4.3-10-Female

On backorder

Brand:
Item ID:
168028730
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
DAS6942-SOC160
Send Request for Quote (RFQ) Discount Offers
The RFI DAS6942-SOC160 Cellular Antenna SISO is a high-performance, ultra-low PIM rated omni-directional ceiling mount antenna, covering 698-4200 MHz.
Regular price $187.00
Regular price $0.00 Sale price $187.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI DAS6942-SOC160 Cellular Antenna SISO is a high-performance, ultra-low PIM rated omni-directional ceiling mount antenna, covering 698-4200 MHz. RFI's unique design provides wideband coverage with excellent low PIM characteristics. This antenna works on and off ground plane, making it suitable for LTE and 5G fixed in-building coverage applications.

Product Features:

  • This antenna offers industry-leading PIM performance of less than -160 dBc.
  • The ceiling mount design provides omni-directional patterns for comprehensive coverage.
  • It covers the full cellular band from 698-4200 MHz, ensuring wideband performance.
  • The stud mount design includes an RG141 tail and a 4.3-10 (F) connector for easy installation.
  • This antenna has a lower profile with a height of 75 mm, improving aesthetics.
  • It is Australian designed and manufactured, ensuring high quality and reliability.

Application Areas:

  • This antenna is ideal for LTE and 5G fixed in-building coverage applications.
  • It is suitable for use both on and off ground plane, providing versatile installation options.
  • This antenna is perfect for environments requiring ultra-low PIM performance and wideband coverage.

In the Box:

  • 1x RFI DAS6942-SOC160 Cellular Antenna SISO

Documents:

RFI DAS6942-SOC160 Cellular Antenna - Datasheet

Product Specifications

MPN DAS6942-SOC160
Antenna application DAS Antenna
Antenna cable type LMR240
Antenna features Omnidirectional
Antenna port connectors 4.3-10 (F)
Antenna type Omni SISO
Brands RFI
Cable length m 0.4
Coverage type Omni-directional
Frequency band Multi-Band 700 to 2700
Frequency range mhz 800 - 2500
Height 7.5
Installation type Internal mounting
Length 19.5
Low pim Yes
Max frequency mhz 4200
Max gain dbd dbi 8.5
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 3
Mount supported Ceiling mount
Mount supported detailed Ceiling mount
No of antenna ports 1
Power w 50
Technologies supported 4G, 5G
Width 19.5
