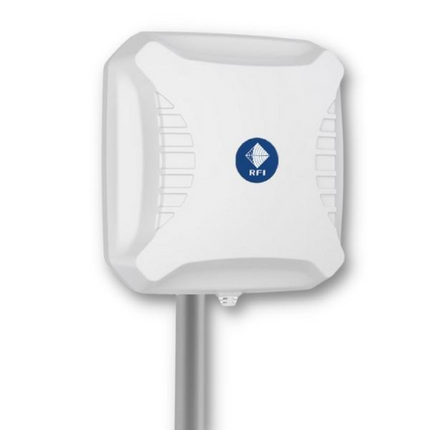

RFI LTE-XPOL-002-5G MIMO Directional Panel Antenna, 698-3800 MHz, 10m, SMA-Male

    RFI LTE-XPOL-002-5G MIMO Directional Panel Antenna, 698-3800 MHz, 10m, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014277
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      LTE-XPOL-002-5G
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 10m Twin HFT195 SMA(M) is the 3rd generation of this popular Cross Polarised (LTE-XPOL-002-V2)

      Available

      $419.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands! The weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors.

        Features:

        - 2-3dB higher gain over all the bands compared to “V2”  - New 3400MHz-3800MHz, 5G band with 11dBi gain  - Consistent broadband performance  - X-Polarised 2x2 MIMO antenna  - Wall or pole mountable  - Lightweight & rugged  - Weatherproof & waterproof (IP65)  - High pattern consistency across bands for 4G/5G carrier aggregation

        Documents:

        RFI XPOL2 5G Antenna - Datasheet RFI XPOL2 5G Antenna - Installation Guide

        Product Specifications

        MPN LTE-XPOL-002-5G
        Antenna application Base Station Antenna
        Antenna cable type HDF-195
        Antenna port connectors SMA (M)
        Antenna type Directional MIMO
        Brands RFI
        Cable length m 10
        Connector SMA(M)
        Construction Cream ABS
        Coverage type Omni-directional
        Frequency band Multi-Band 700-2700 MHz
        Height 9.5
        Ingress protection ip IP65
        Installation type External mounting
        Length 26
        Low pim No
        Max frequency mhz 3800
        Max gain dbd dbi 11
        Mimo support Yes
        Min frequency mhz 698
        Min gain dbd dbi 9
        Mount supported Wall mount, Pole mount
        Mount supported detailed Wall mount, Pole mount
        No of antenna ports 2
        Nominal gain dbi 9 dBi @ 698-960MHz, 10 dBi @ 1710-2700MHz, 11 dBi @ 3400-3800MHz
        Power w 20
        Technologies supported 2G, 3G, 4G, 5G
        Termination 10m of RG58 fitted with SMA (M) connector per feed
        Tuned bandwidth Full. No tuning required
        Vswr < 1.5:1 (over 95% of the band)
        Width 15
