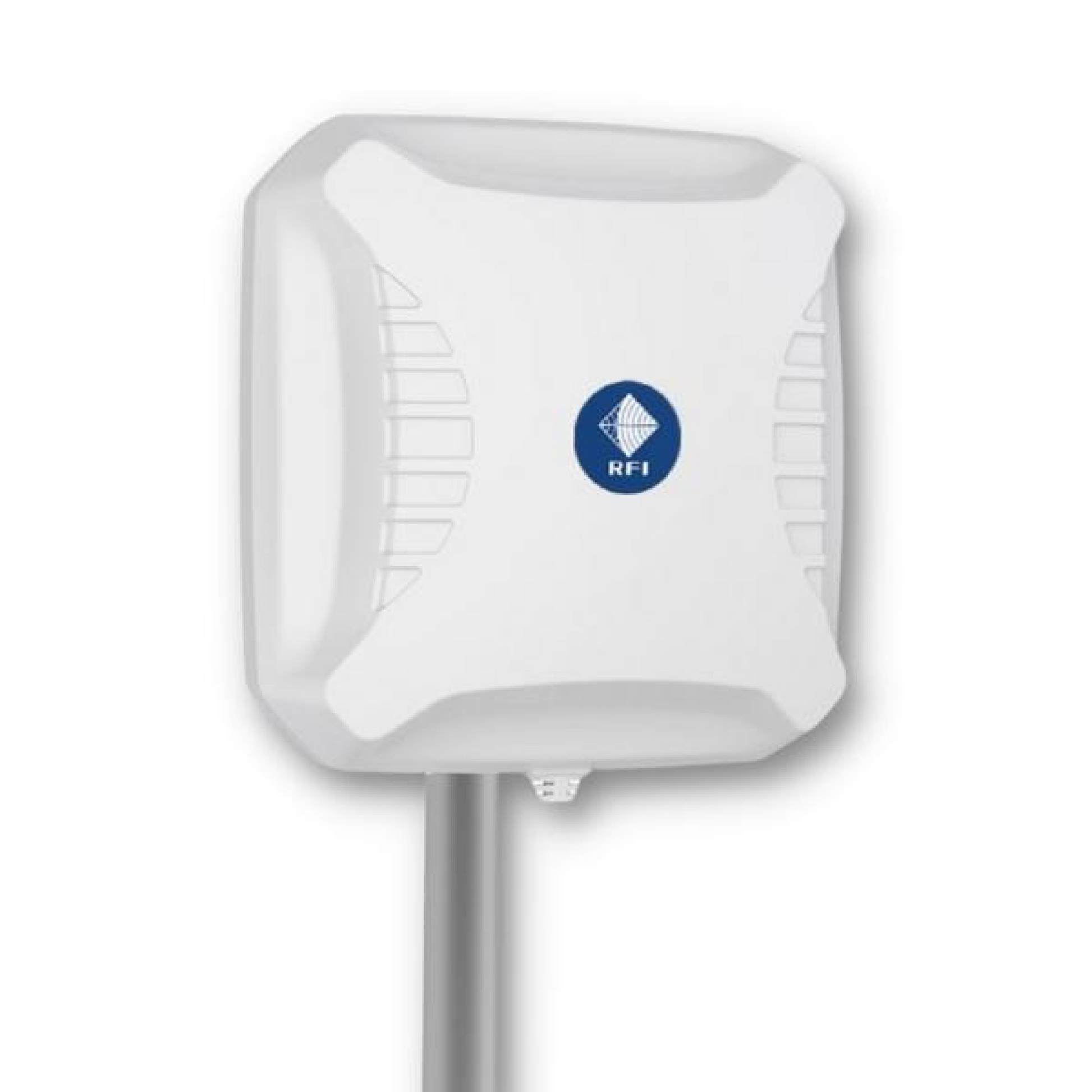

RFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna, 698-3800 MHz, 2x N-Female, No Cable

RFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna, 698-3800 MHz, 2x N-Female, No Cable

Available

Brand:
Item ID:
168014278
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LTE-XPOL-002-5G-NF
Send Request for Quote (RFQ) Discount Offers
RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz), featuring advanced technology, higher gain, extended 5G band and weatherproof design.
Regular price $352.50
Regular price $0.00 Sale price $352.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 2 X N(F) Bulkhead; No Cables (LTE-XPOL-002-5G(-NF)), is the third generation of the popular Cross Polarised series (LTE-XPOL-002-V2). The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. This advanced antenna, featuring Artificial Magnetic Conductors (AMC) and a patented radiator configuration, delivers exceptional improvements in bandwidth and gain. Designed for 2G, 3G, 4G, and 5G, it boasts 2-3 dB higher gain over the previous generation, covering an extended frequency range from 698 MHz to 3800 MHz.

Product Features:

  • Advanced Metamaterial Technology: Utilizes AMC and patented radiator configuration for superior bandwidth and gain improvements.
  • Extended Frequency Range: Covers 698 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz, and the new 3400 – 3800 MHz 5G band with 11 dBi gain.
  • Higher Gain: Achieves 2-3 dB higher gain over all bands compared to the previous generation.
  • X-Polarised 2x2 MIMO: Optimized for enhanced performance in 4G/5G carrier aggregation scenarios.
  • Weatherproof & Waterproof (IP65): Designed for reliable outdoor use, suitable for wall or pole mounting.
  • Consistent Broadband Performance: Ensures reliable connectivity with high pattern consistency across bands for 4G/5G carrier aggregation.

Application Areas:

  • Ideal for 2G, 3G, 4G, and 5G cellular networks
  • Suitable for both wall and pole mounting

In the Box:

  • RFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna
  • 2x N-Female connectors
  • No Cable

Documents:

RFI XPOL2 5G Antenna - Datasheet RFI XPOL2 5G Antenna - Installation Guide

Product Specifications

MPN LTE-XPOL-002-5G-NF
Antenna application Terminal Antenna
Antenna configuration 2x2 MIMO
Antenna port connectors N (F)
Antenna type Directional Panel
Brands RFI
Connector SMA(M)
Construction Cream ABS
Coverage type Directional
Frequency band Multi-Band 700-2700 MHz
Frequency range mhz 1710 - 2170, 2300 - 2700, 698 - 960, 3300-3800
Height 9.5
Ingress protection ip IP65
Installation type External mounting
Length 26
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 11
Mimo support Yes
Min frequency mhz 698
Min gain dbd dbi 9
Mount supported Pole mount
Mount supported detailed Pole mount
No of antenna ports 2
Nominal gain dbi 9 dBi @ 698-960MHz, 10 dBi @ 1710-2700MHz, 11 dBi @ 3400-3800MHz
Power w 20
Technologies supported 2G, 3G, 4G, 5G
Termination 10m of RG58 fitted with SMA (M) connector per feed
Tuned bandwidth Full. No tuning required
Vswr < 1.5:1 (over 95% of the band)
Width 15
