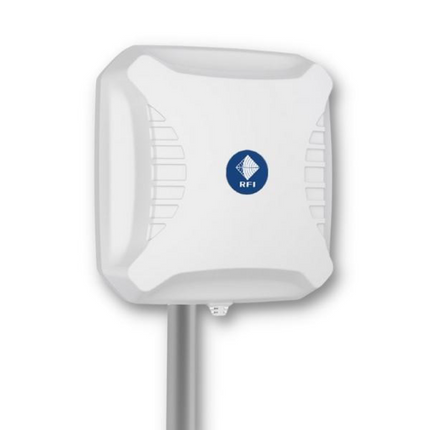

RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 2 X N(F) Bulkhead; No Cables (LTE-XPOL-002-5G(-NF)), is the third generation of the popular Cross Polarised series (LTE-XPOL-002-V2). The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. This advanced antenna, featuring Artificial Magnetic Conductors (AMC) and a patented radiator configuration, delivers exceptional improvements in bandwidth and gain. Designed for 2G, 3G, 4G, and 5G, it boasts 2-3 dB higher gain over the previous generation, covering an extended frequency range from 698 MHz to 3800 MHz.

Product Features:

• Advanced Metamaterial Technology: Utilizes AMC and patented radiator configuration for superior bandwidth and gain improvements.
• Extended Frequency Range: Covers 698 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz, and the new 3400 – 3800 MHz 5G band with 11 dBi gain.
• Higher Gain: Achieves 2-3 dB higher gain over all bands compared to the previous generation.
• X-Polarised 2x2 MIMO: Optimized for enhanced performance in 4G/5G carrier aggregation scenarios.
• Weatherproof & Waterproof (IP65): Designed for reliable outdoor use, suitable for wall or pole mounting.
• Consistent Broadband Performance: Ensures reliable connectivity with high pattern consistency across bands for 4G/5G carrier aggregation.

Application Areas:

• Ideal for 2G, 3G, 4G, and 5G cellular networks
• Suitable for both wall and pole mounting

In the Box:

• RFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna
• 2x N-Female connectors
• No Cable

Documents:

RFI XPOL2 5G Antenna - Datasheet RFI XPOL2 5G Antenna - Installation Guide
