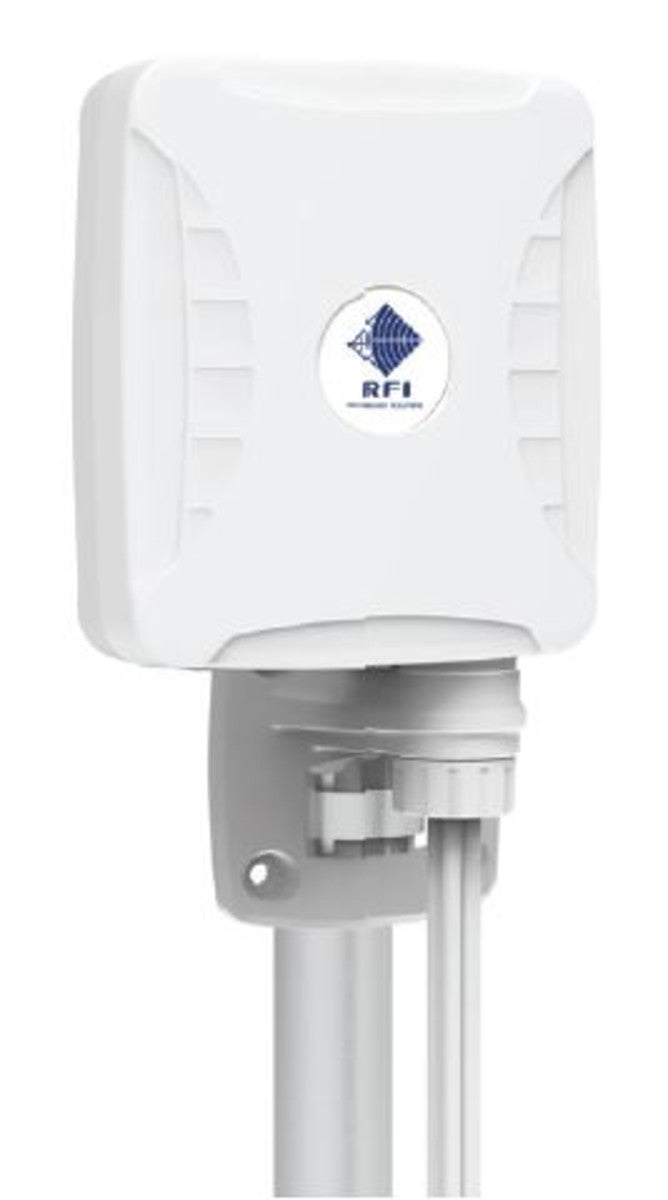

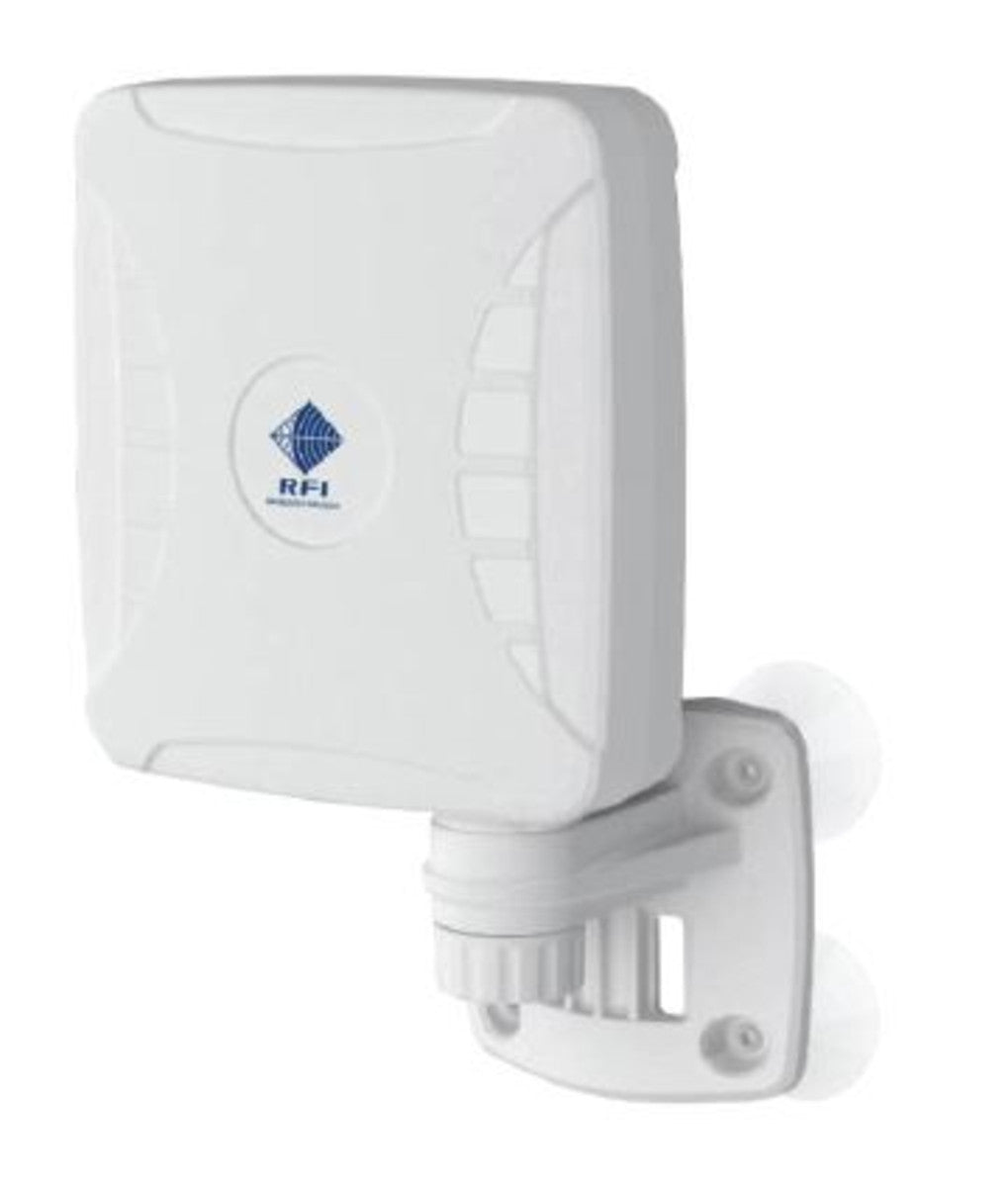

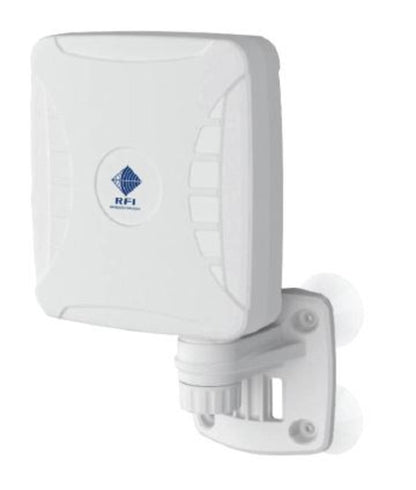

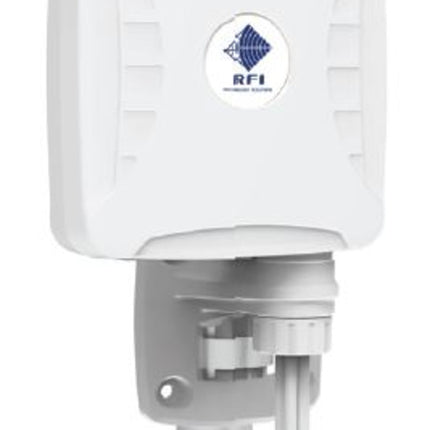

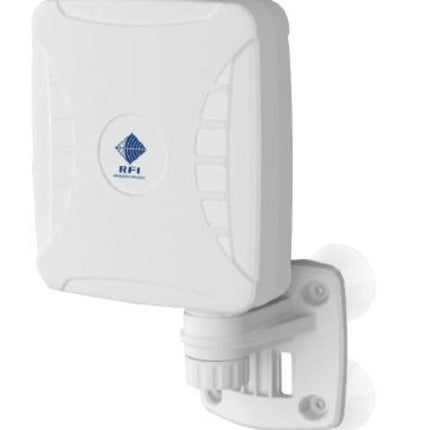

RFI LTE-XPOL-2X2-5G MIMO Omni-Directional Antenna, 698-3800 MHz, 2x 5m, SMA-Male

RFI LTE-XPOL-2X2-5G MIMO Omni-Directional Antenna, 698-3800 MHz, 2x 5m, SMA-Male

Sold out

Brand:
Item ID:
168014279
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LTE-XPOL-2X2-5G
Send Request for Quote (RFQ) Discount Offers
RFI 5G LTE 2x2 MIMO Omni-Directional Antenna (698-3800 MHz); 2x5m 2xSMA(M) exceptionally well in the following frequency bands; 698-960MHz, 1700-2700MHz &
Regular price $214.50
Regular price $0.00 Sale price $214.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI 5G LTE 2x2 MIMO Omni-Directional Antenna (698-3800 MHz); 2x5m 2xSMA(M)

  • Covers the new 5G & 4G bands
  • Cross polarised 2x2 MIMO
  • Wall, pole or window mounts
  • Lightweight & rugged

Product Specifications

MPN LTE-XPOL-2X2-5G
Antenna application Base Station Antenna
Antenna cable type RG58
Antenna port connectors SMA (M)
Antenna type Omni MIMO
Brands RFI
Cable and connector 2 x 5.0m RG58 Terminated with 2 x SMA(M)
Cable length m 5
Complementary products [{"id":9847441654058,"title":"RFI LTE-XPOL-002-5G MIMO Directional Panel Antenna, 698-3800 MHz, 10m, SMA-Male","handle":"rfi-5g-lte-2x2-mimo-directional-panel-antenna-698-3800-mhz-10m-twin-hft195-smam","description":"\u003cspan style=\"font-family: arial;\"\u003eThe LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G \u0026amp; 5G.\nThis antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz \u0026amp; 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands!\nThe weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors. \u003c\/span\u003e\n\n\u003ch2\u003e\u003cspan style=\"font-family: arial;\"\u003eFeatures:\u003c\/span\u003e\u003c\/h2\u003e\n\n\u003cspan style=\"font-family: arial;\"\u003e- 2-3dB higher gain over all the bands compared to “V2” \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- New 3400MHz-3800MHz, 5G band with 11dBi gain \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Consistent broadband performance \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- X-Polarised 2x2 MIMO antenna \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Wall or pole mountable \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Lightweight \u0026amp; rugged \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Weatherproof \u0026amp; waterproof (IP65) \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- High pattern consistency across bands for 4G\/5G carrier aggregation\u003c\/span\u003e\n\n\u003ch2\u003eDocuments:\u003c\/h2\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102694\u0026amp;c=3389566\u0026amp;h=Lm2mlJrSSgeDAKSOdYE0pTjHyNLW3X1o9jvo8Ov56u3XP19v\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Datasheet\u003c\/a\u003e\u003c\/span\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102471\u0026amp;c=3389566\u0026amp;h=QtiM0CEW9wz9ByLMKH7dzxhTzsHKHIvlKBIxYdS7KP94xCgF\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Installation Guide\u003c\/a\u003e\u003c\/span\u003e","published_at":"2023-04-16T08:13:17+10:00","created_at":"2025-07-26T00:12:49+10:00","vendor":"RFI","type":"","tags":["cellular-antennas","RFI Aerial","RFI Antenna"],"price":41900,"price_min":41900,"price_max":41900,"available":true,"price_varies":false,"compare_at_price":0,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50431828361514,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"168014277","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RFI LTE-XPOL-002-5G MIMO Directional Panel Antenna, 698-3800 MHz, 10m, SMA-Male","public_title":null,"options":["Default Title"],"price":41900,"weight":850,"compare_at_price":0,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G_RFI205G20LTE202x220MIMO20Directional20Panel20Antenna20698-380020MHz2010m20Twin20HFT19520SMA20M_1-1.png?v=1753452774"],"featured_image":"\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G_RFI205G20LTE202x220MIMO20Directional20Panel20Antenna20698-380020MHz2010m20Twin20HFT19520SMA20M_1-1.png?v=1753452774","options":["Title"],"media":[{"alt":"LTE-XPOL-002-5G_RFI205G20LTE202x220MIMO20Directional20Panel20Antenna20698-380020MHz2010m20Twin20HFT19520SMA20M_1-1.png","id":40616768504106,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G_RFI205G20LTE202x220MIMO20Directional20Panel20Antenna20698-380020MHz2010m20Twin20HFT19520SMA20M_1-1.png?v=1753452774"},"aspect_ratio":1.0,"height":2500,"media_type":"image","src":"\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G_RFI205G20LTE202x220MIMO20Directional20Panel20Antenna20698-380020MHz2010m20Twin20HFT19520SMA20M_1-1.png?v=1753452774","width":2500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cspan style=\"font-family: arial;\"\u003eThe LTE-XPOL-002-5G antenna includes the newer 3400 - 3800 MHz bands, which were not previously covered by our V2 and is suitable for 2G, 3G, 4G \u0026amp; 5G.\nThis antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz \u0026amp; 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands!\nThe weatherproof housing is designed for mast or wall mounting and is supplied with 2 x 10 metres of low loss RG58 cable terminated with SMA male connectors. \u003c\/span\u003e\n\n\u003ch2\u003e\u003cspan style=\"font-family: arial;\"\u003eFeatures:\u003c\/span\u003e\u003c\/h2\u003e\n\n\u003cspan style=\"font-family: arial;\"\u003e- 2-3dB higher gain over all the bands compared to “V2” \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- New 3400MHz-3800MHz, 5G band with 11dBi gain \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Consistent broadband performance \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- X-Polarised 2x2 MIMO antenna \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Wall or pole mountable \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Lightweight \u0026amp; rugged \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- Weatherproof \u0026amp; waterproof (IP65) \u003c\/span\u003e\n\u003cspan style=\"font-family: arial;\"\u003e- High pattern consistency across bands for 4G\/5G carrier aggregation\u003c\/span\u003e\n\n\u003ch2\u003eDocuments:\u003c\/h2\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102694\u0026amp;c=3389566\u0026amp;h=Lm2mlJrSSgeDAKSOdYE0pTjHyNLW3X1o9jvo8Ov56u3XP19v\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Datasheet\u003c\/a\u003e\u003c\/span\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102471\u0026amp;c=3389566\u0026amp;h=QtiM0CEW9wz9ByLMKH7dzxhTzsHKHIvlKBIxYdS7KP94xCgF\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Installation Guide\u003c\/a\u003e\u003c\/span\u003e"},{"id":9847441752362,"title":"RFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna, 698-3800 MHz, 2x N-Female, No Cable","handle":"rfi-5g-lte-2x2-mimo-directional-panel-antenna-698-3800-mhz-2-x-nf-bulkhead-no-cables","description":"RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 2 X N(F) Bulkhead; No Cables (LTE-XPOL-002-5G(-NF)), is the third generation of the popular Cross Polarised series (LTE-XPOL-002-V2). The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. This advanced antenna, featuring Artificial Magnetic Conductors (AMC) and a patented radiator configuration, delivers exceptional improvements in bandwidth and gain. Designed for 2G, 3G, 4G, and 5G, it boasts 2-3 dB higher gain over the previous generation, covering an extended frequency range from 698 MHz to 3800 MHz.\n\n\u003ch2\u003eProduct Features:\u003c\/h2\u003e\n\n\u003cul class=\"custom-list-tick\"\u003e\n \u003cli\u003e\n\u003cstrong\u003eAdvanced Metamaterial Technology:\u003c\/strong\u003e Utilizes AMC and patented radiator configuration for superior bandwidth and gain improvements.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eExtended Frequency Range:\u003c\/strong\u003e Covers 698 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz, and the new 3400 – 3800 MHz 5G band \u003cspan style=\"font-family: arial;\"\u003ewith 11 dBi gain\u003c\/span\u003e.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eHigher Gain:\u003c\/strong\u003e Achieves 2-3 dB higher gain over all bands compared to the previous generation.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eX-Polarised 2x2 MIMO:\u003c\/strong\u003e Optimized for enhanced performance in 4G\/5G carrier aggregation scenarios.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eWeatherproof \u0026amp; Waterproof (IP65):\u003c\/strong\u003e Designed for reliable outdoor use, suitable for wall or pole mounting.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eConsistent Broadband Performance:\u003c\/strong\u003e Ensures reliable connectivity with high pattern consistency across bands \u003cspan style=\"font-family: arial;\"\u003efor 4G\/5G carrier aggregation\u003c\/span\u003e.\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch2\u003eApplication Areas:\u003c\/h2\u003e\n\n\u003cul class=\"custom-list-tick\"\u003e\n \u003cli\u003eIdeal for 2G, 3G, 4G, and 5G cellular networks\u003c\/li\u003e\n \u003cli\u003eSuitable for both wall and pole mounting\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch2\u003eIn the Box:\u003c\/h2\u003e\n\n\u003cul class=\"custom-list-tick\"\u003e\n \u003cli\u003eRFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna\u003c\/li\u003e\n \u003cli\u003e2x N-Female connectors\u003c\/li\u003e\n \u003cli\u003eNo Cable\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch2\u003eDocuments:\u003c\/h2\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102694\u0026amp;c=3389566\u0026amp;h=Lm2mlJrSSgeDAKSOdYE0pTjHyNLW3X1o9jvo8Ov56u3XP19v\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Datasheet\u003c\/a\u003e\u003c\/span\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102471\u0026amp;c=3389566\u0026amp;h=QtiM0CEW9wz9ByLMKH7dzxhTzsHKHIvlKBIxYdS7KP94xCgF\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Installation Guide\u003c\/a\u003e\u003c\/span\u003e","published_at":"2023-04-16T08:13:17+10:00","created_at":"2025-07-26T00:12:56+10:00","vendor":"RFI","type":"","tags":["cellular-antennas","RFI Aerial","RFI Antenna"],"price":35250,"price_min":35250,"price_max":35250,"available":true,"price_varies":false,"compare_at_price":0,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":50431828558122,"title":"Default Title","option1":"Default Title","option2":null,"option3":null,"sku":"168014278","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna, 698-3800 MHz, 2x N-Female, No Cable","public_title":null,"options":["Default Title"],"price":35250,"weight":850,"compare_at_price":0,"inventory_management":"shopify","barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G-NF-1.png?v=1753452780"],"featured_image":"\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G-NF-1.png?v=1753452780","options":["Title"],"media":[{"alt":"LTE-XPOL-002-5G-NF-1.png","id":40616768930090,"position":1,"preview_image":{"aspect_ratio":1.0,"height":2500,"width":2500,"src":"\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G-NF-1.png?v=1753452780"},"aspect_ratio":1.0,"height":2500,"media_type":"image","src":"\/\/store.techwave.com.au\/cdn\/shop\/files\/LTE-XPOL-002-5G-NF-1.png?v=1753452780","width":2500}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"RFI 5G LTE 2x2 MIMO Directional Panel Antenna (698-3800 MHz); 2 X N(F) Bulkhead; No Cables (LTE-XPOL-002-5G(-NF)), is the third generation of the popular Cross Polarised series (LTE-XPOL-002-V2). The antenna enclosure effectively looks the same as the second generation V2” but has been completely redesigned on the inside. This advanced antenna, featuring Artificial Magnetic Conductors (AMC) and a patented radiator configuration, delivers exceptional improvements in bandwidth and gain. Designed for 2G, 3G, 4G, and 5G, it boasts 2-3 dB higher gain over the previous generation, covering an extended frequency range from 698 MHz to 3800 MHz.\n\n\u003ch2\u003eProduct Features:\u003c\/h2\u003e\n\n\u003cul class=\"custom-list-tick\"\u003e\n \u003cli\u003e\n\u003cstrong\u003eAdvanced Metamaterial Technology:\u003c\/strong\u003e Utilizes AMC and patented radiator configuration for superior bandwidth and gain improvements.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eExtended Frequency Range:\u003c\/strong\u003e Covers 698 – 960 MHz, 1700 – 2170 MHz, 2300 – 2700 MHz, and the new 3400 – 3800 MHz 5G band \u003cspan style=\"font-family: arial;\"\u003ewith 11 dBi gain\u003c\/span\u003e.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eHigher Gain:\u003c\/strong\u003e Achieves 2-3 dB higher gain over all bands compared to the previous generation.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eX-Polarised 2x2 MIMO:\u003c\/strong\u003e Optimized for enhanced performance in 4G\/5G carrier aggregation scenarios.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eWeatherproof \u0026amp; Waterproof (IP65):\u003c\/strong\u003e Designed for reliable outdoor use, suitable for wall or pole mounting.\u003c\/li\u003e\n \u003cli\u003e\n\u003cstrong\u003eConsistent Broadband Performance:\u003c\/strong\u003e Ensures reliable connectivity with high pattern consistency across bands \u003cspan style=\"font-family: arial;\"\u003efor 4G\/5G carrier aggregation\u003c\/span\u003e.\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch2\u003eApplication Areas:\u003c\/h2\u003e\n\n\u003cul class=\"custom-list-tick\"\u003e\n \u003cli\u003eIdeal for 2G, 3G, 4G, and 5G cellular networks\u003c\/li\u003e\n \u003cli\u003eSuitable for both wall and pole mounting\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch2\u003eIn the Box:\u003c\/h2\u003e\n\n\u003cul class=\"custom-list-tick\"\u003e\n \u003cli\u003eRFI LTE-XPOL-002-5G-NF MIMO Directional Panel Antenna\u003c\/li\u003e\n \u003cli\u003e2x N-Female connectors\u003c\/li\u003e\n \u003cli\u003eNo Cable\u003c\/li\u003e\n\u003c\/ul\u003e\n\n\u003ch2\u003eDocuments:\u003c\/h2\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102694\u0026amp;c=3389566\u0026amp;h=Lm2mlJrSSgeDAKSOdYE0pTjHyNLW3X1o9jvo8Ov56u3XP19v\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Datasheet\u003c\/a\u003e\u003c\/span\u003e\n\n\u003cspan class=\"documents-span\"\u003e\u003ci class=\"far fa-file-pdf documents-icon\"\u003e\u003c\/i\u003e\u003ca href=\"https:\/\/www.rfi.com.au\/core\/media\/media.nl?id=2102471\u0026amp;c=3389566\u0026amp;h=QtiM0CEW9wz9ByLMKH7dzxhTzsHKHIvlKBIxYdS7KP94xCgF\" target=\"_blank\" rel=\"noopener\"\u003eRFI XPOL2 5G Antenna - Installation Guide\u003c\/a\u003e\u003c\/span\u003e"}]
Coverage type Omni-directional
Frequency band Multi-Band 700-2700 MHz
Frequency mhz 698-960|1710-2700|3500-3800
Height 9.5
Ingress protection ip IP65
Installation type External mounting
Length 26
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 3
Mimo support Yes
Min frequency mhz 698
Min gain dbd dbi 3
Mount supported Wall mount, Pole mount, Window mount
Mount supported detailed Wall mount, Pole mount, Window mount
Mounting area Window (suction), wall or pole mount
No of antenna ports 2
Nominal gain dbi 3
Polarisation Cross Polarisation
Power w 20
Technologies supported 2G, 3G, 4G, 5G
Tuned bandwidth Full
Vswr < 2.5:1 over 90% of the band
Width 15
