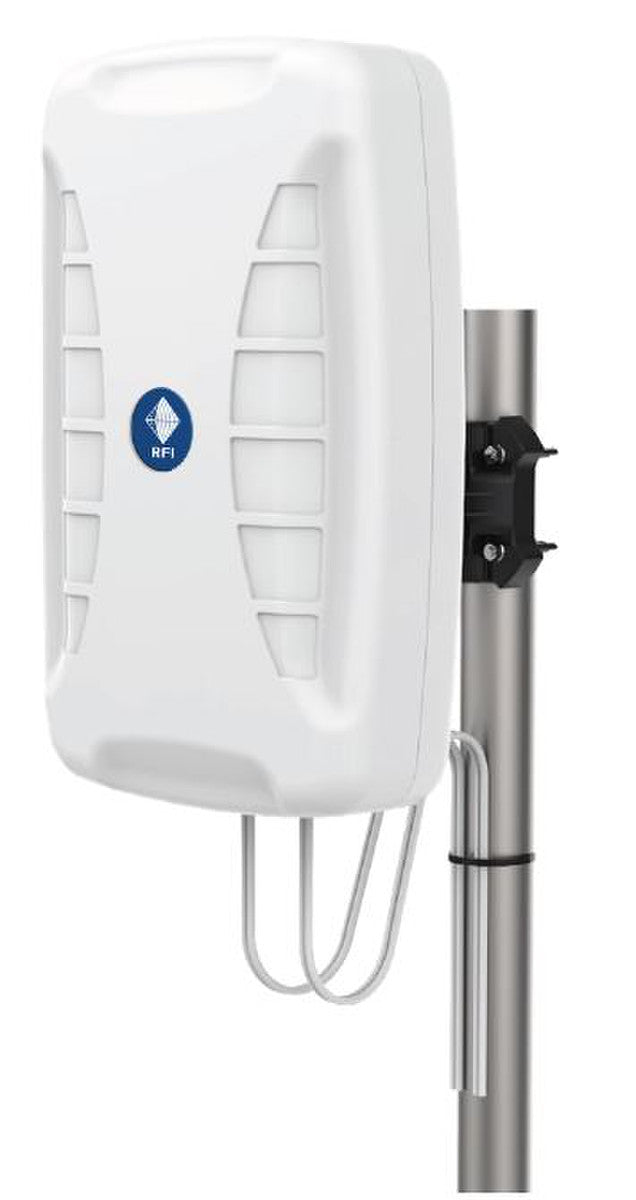

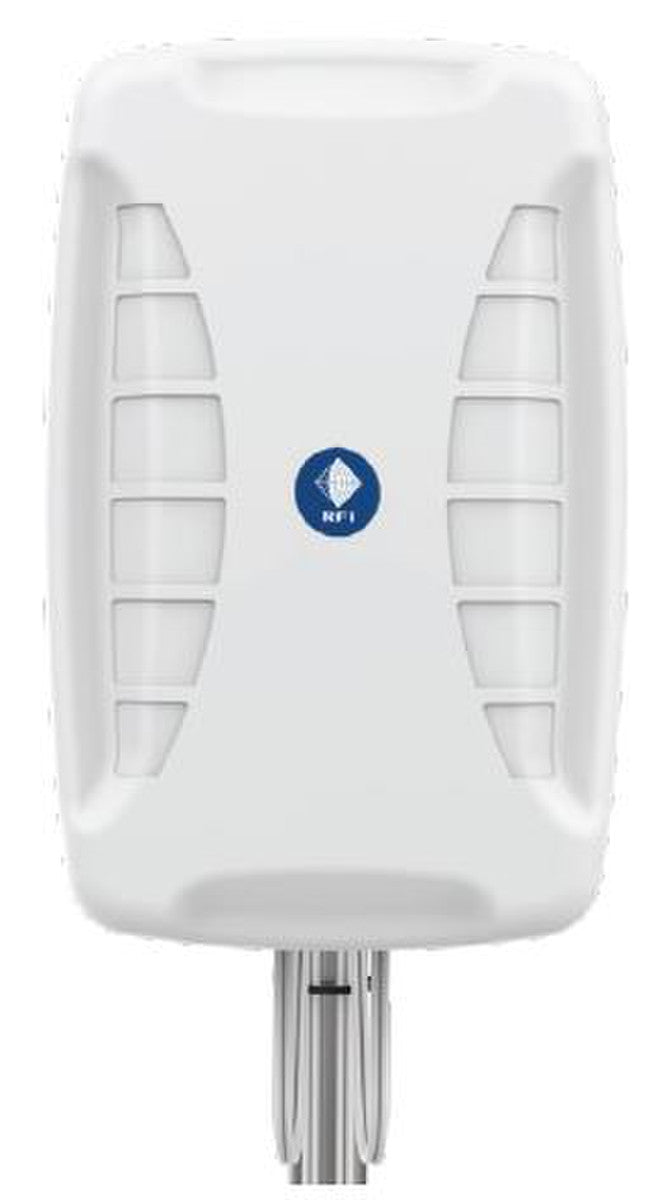

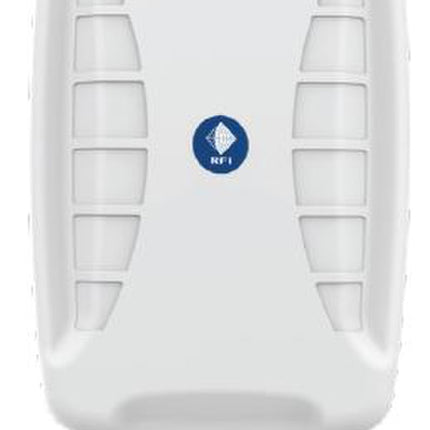

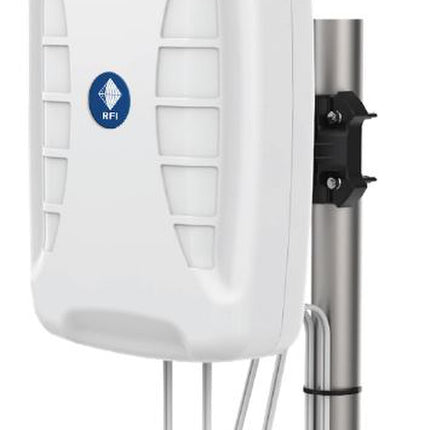

RFI LTE-XPOL-4X4-5G-D MIMO Directional Panel Antenna, 617-4200 MHz, 4x N-Female, No Cable

RFI LTE-XPOL-4X4-5G-D MIMO Directional Panel Antenna, 617-4200 MHz, 4x N-Female, No Cable

Sold out

Brand:
Item ID:
168014280
Export:
Accepted
Shipping:
Not available to ship
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LTE-XPOL-4X4-5G-D
Send Request for Quote (RFQ) Discount Offers
RFI 5G LTE 4x4 MIMO Directional Panel Antenna (617-4200 MHz), is weatherproof and ideal for current and future 5G/LTE deployments.
Regular price $707.00
Regular price $0.00 Sale price $707.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI 5G LTE 4x4 MIMO Directional Panel Antenna (617-4200 MHz); 4 X N(F) Bulkhead; No Cables (LTE-5G-XPOL-4X4(-NF)) revolutionizes the Cross Polarised (LTE-XPOL) range. It is incorporating advanced metamaterial technology with an Artificial Magnetic Conductor (AMC) and a patented configuration. This antenna offers unparalleled performance from 617 to 4200 MHz, with exceptional improvements in bandwidth and gain. These features making it the ideal solution for both current and future 5G/LTE deployments.

Product Features:

  • Advanced Metamaterial Technology: Incorporates AMC and a patented configuration for exceptional improvements in bandwidth and gain.
  • Wideband Frequency Coverage: Operates from 617 to 4200 MHz with a peak gain of 11 dBi, ensuring optimal performance across multiple frequency bands.
  • X-Polarised 4x4 MIMO: Tailored for current and future 5G/LTE technologies, supporting features like Carrier Aggregation (CA) for enhanced reception and throughput.

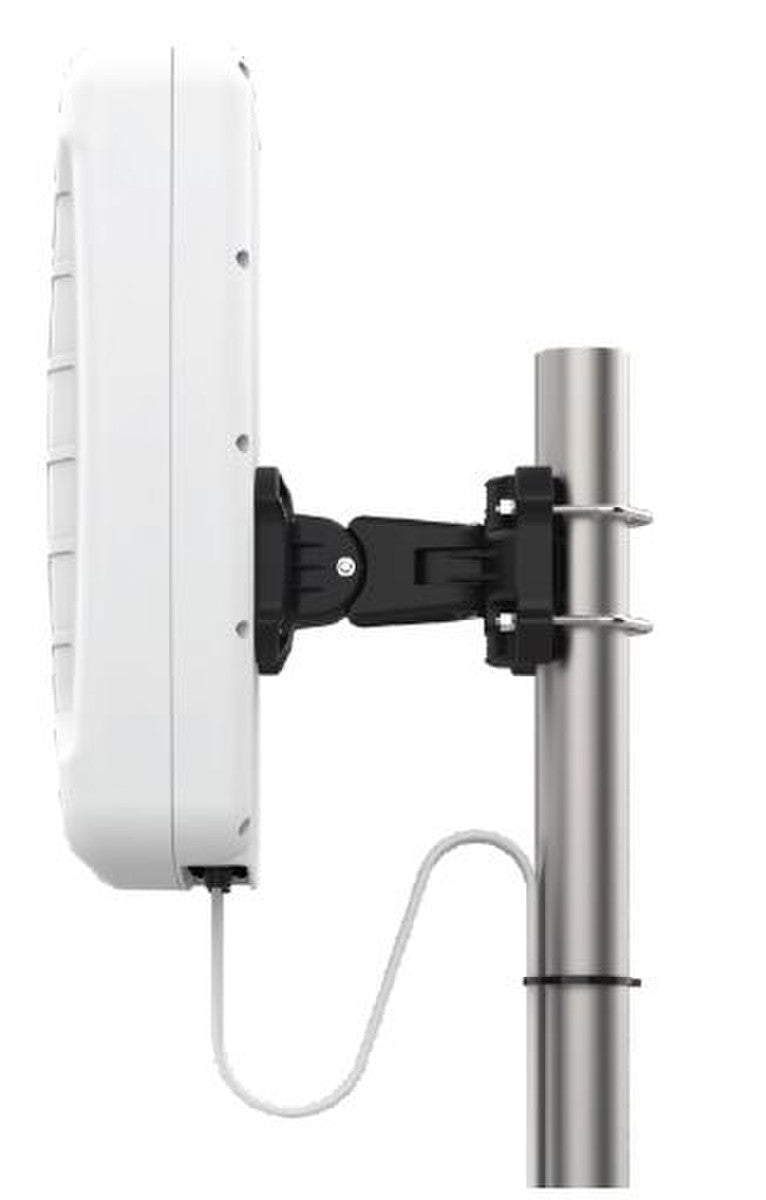

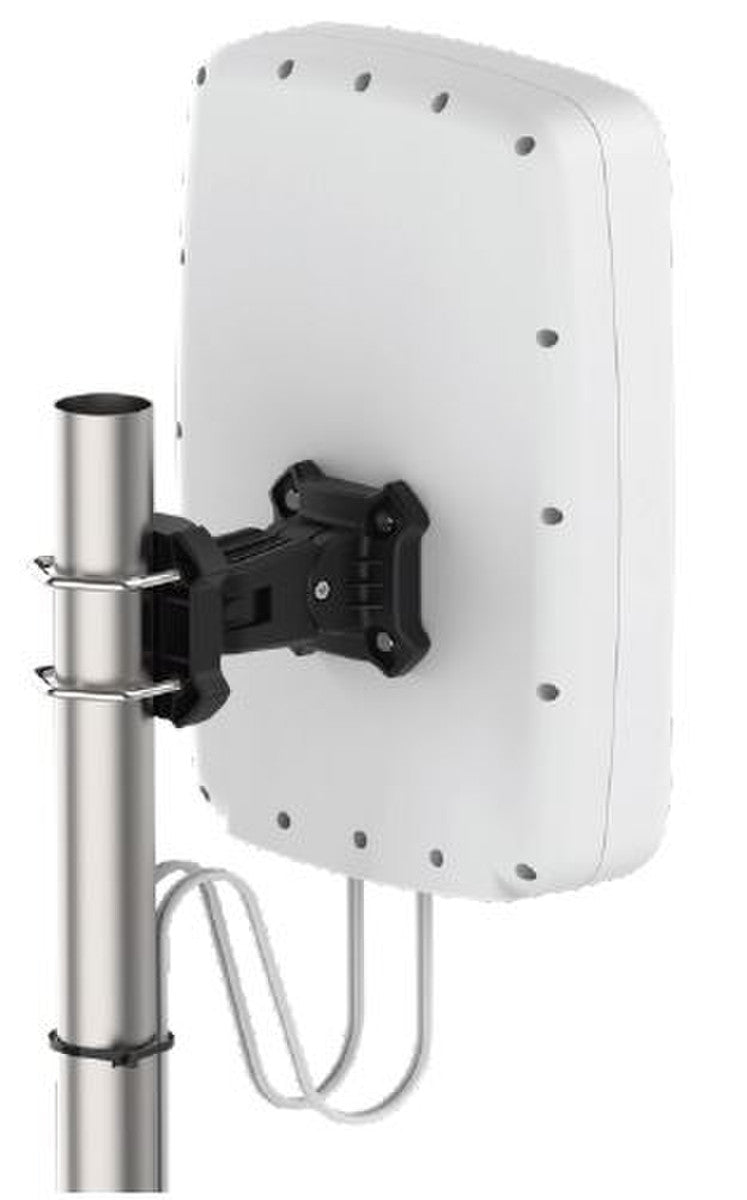

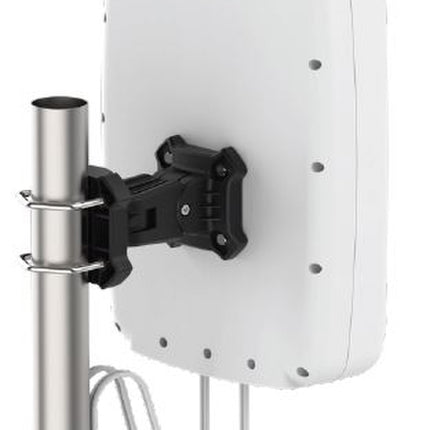

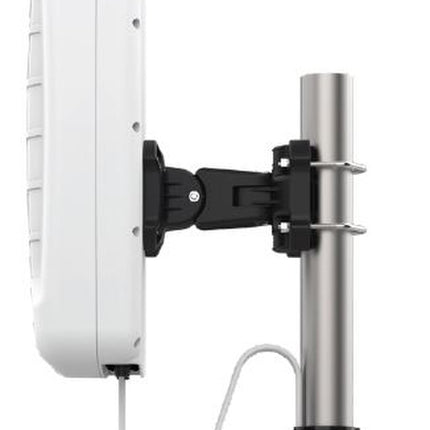

  • Various Mounting Options: Flexible installation options with pole or wall mounting capabilities for ease of deployment.
  • Weatherproof & Waterproof (IP65): Designed to withstand the elements, providing durability and longevity in outdoor environments.

Application Areas:

  • Ideal for 5G/LTE technologies
  • Perfect for Carrier Aggregation (CA) deployments

In the Box:

  • RFI LTE-XPOL-4X4-5G-D MIMO Directional Panel Antenna
  • 4x N-Female connector
  • No Cable

Documents:

LTE-XPOL-4X4-5G-D - 5G LTE 4×4 MIMO Directional Panel Antenna - Data Sheet

Product Specifications

MPN LTE-XPOL-4X4-5G-D
Antenna application Terminal Antenna
Antenna configuration 4x4 MIMO
Antenna features Multi Band Capable, Directional
Antenna port connectors N (F)
Antenna type Directional Panel
Brands RFI
Cable and connector 4 x Integrated N female bulkhead connectors
Colour White
Coverage type Directional
Frequency band Multi-Band 700-3800 MHz
Frequency range mhz 1710 - 2170, 2300 - 2700, 698 - 960, 3300-3800
Height 9.5
Ingress protection ip IP65
Installation type External mounting
Ip rating IP65
Length 26
Low pim No
Max frequency mhz 4200
Max gain dbd dbi 11
Mimo support Yes
Min frequency mhz 617
Min gain dbd dbi 8.5
Mount supported Pole mount
Mount supported detailed Pole mount
Mounting area wall or pole mount
No of antenna ports 4
Nominal gain dbi 11
Number of outputs 4
Packaging Cardboard Carton
Polarisation Cross Polarisation
Power rating maximum 10 W
Technologies supported 2G, 3G, 4G, 5G
Temperature range c -40 to +80
Tuned bandwidth Full
Vswr < 2.0:1
Width 15
Wind load 160km h n <160
