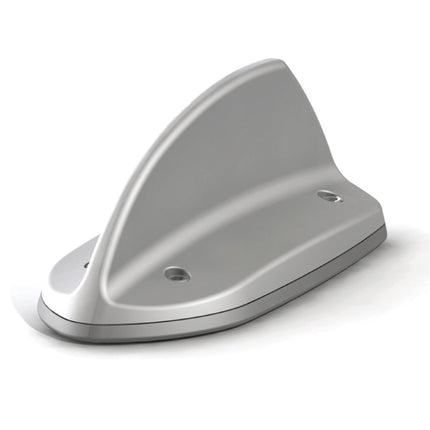

RFI TLA4200 5G+GPS Transit Antenna, Low Profile, 698-5800 MHz, N-Female and TNC-Female

    RFI TLA4200 5G+GPS Transit Antenna, Low Profile, 698-5800 MHz, N-Female and TNC-Female

      Product form
      Brand:
      RFI
      Item ID:
      168014345
      MPN:
      TLA4200
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI 5G LTE/GPS Low Profile Transit Antenna (698-5800 MHz); N(F) and TNC(F) is designed specifically for rail, light rail and bus applications

      Available

      $414.41

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        With a VSWR less than 2:1 covering 800-5800 MHz (off ground plane) and 2.5:1 (full band on a ground plane), the TLA4100/4200 operates in all cellular bands globally plus the 2.4 GHz & 5.8 GHz ISM bands. In addition,the TLA4200 incorporates an active GPS antenna for asset tracking and AVL applications. Designed utilising a high impact, UV stabilised low Flame, Smoke and Toxicity (FST) radome, the TLA4100/4200 is IP68 rated to fully protect against the ingress of dust and water. Designed to meet the following European Traction Industry Standards:
        • NF-F-16-101/102 (materials standard)
        • EN50155 (vibration standard)
        • EN50124-1 (electrical isolation standard)
        • Functions with or without a ground plane*
        * Nominated gain achieved using a 1m2 ground plane.

        Documents:

        RFI TLA4200 Antenna - Datasheet
        RFI TLA4200 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 21
        Width 12
        Height 10
        Antenna Application Vehicle Antenna
        Antenna Port Connectors N (F), TNC (F)
        Antenna Type Low Profile Transit
        Band 698-960MHz / 1710-2700MHz / 2400-2700MHz / 5700-5800MHz and GPS (1575.42MHz)
        Coverage Type Omni-directional
        Frequency [MHz] 824 to 960|1710-2170 (with GPS)
        Frequency Band UHF 380-520 MHz
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 5800
        Max Gain (dBd/dBi) 7
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 3
        Mount Supported Screw mount
        Mount Supported - Detailed Screw mount
        No. of Antenna Ports 2
        Nominal Gain [dBi] 5 @ 698 - 960MHz / 6 @ 1710 - 2700MHz / 3 @ 2400-2700MHz / 7 @ 5700-5800MHz & 28 @ GPS (1575.42MHz)
        Power [W] 50
        Technologies Supported 2G, 3G, 4G, 5G
        Termination Antenna Port: Fixed N-female GPS: TNC Female
        Tuned Bandwidth Full. No tuning required
        VSWR <2:1
