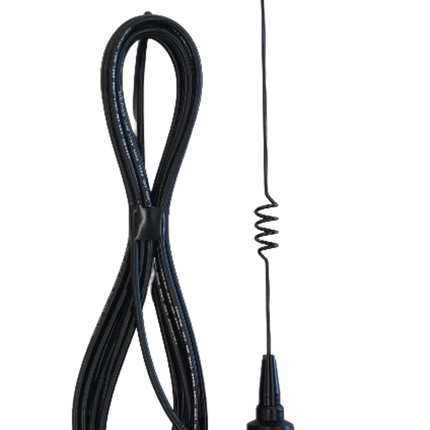

RFI SW1585 Roof Mount Antenna, 806-870 MHz, 3 dBi, MB14, 5m, No Connector

    RFI SW1585 Roof Mount Antenna, 806-870 MHz, 3 dBi, MB14, 5m, No Connector

      Product form
      Brand:
      RFI
      Item ID:
      168014332
      MPN:
      SW1585
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI 800 MHz 3 dBi Roof Mount Antenna (806-870 MHz); MB14 5m No Connector is a 3 dB gain antenna optimised for 806-870 MHz international trunked mobile bands

      Available

      $164.34

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        At the heart of the SW1585 is the MB14 antenna base. This base is intricately constructed, much like a coaxial connector. The precisely controlled termination which is achieved is reliable electrically and mechanically and provides a superb match, resulting in a broad bandwidth, and extremely low VSWR.

        Features:

        • High performance
        • Limited lifetime warranty
        • Roof mounting for optimum performance
        • MB14 base for superior match and bandwidth
        • Black high gloss plating won't scratch, chip or peel

        Documents:

        RFI SW1585 Antenna - Datasheet RFI SW1585 Antenna - Installation Guide

        Product Specifications

        Brand RFI
        Length 36
        Width 5
        Height 5
        Antenna Application Vehicle Antenna
        Antenna Cable Type Cellfoam
        Antenna Port Connectors No connector
        Antenna Type Ground Dependent
        Band 806 - 870MHz
        Cable And Connector connector not included, 5.0m CellFoam?
        Cable Length (m) 5
        Coverage Type Omni-directional
        Frequency [MHz] 806-870
        Frequency Band ISM Bands 300 MHz & 400 MHz & 8900 MHz
        Installation Type External mounting
        Low PIM No
        Max Frequency (MHz) 870
        Max Gain (dBd/dBi) 3
        MIMO Support No
        Min Frequency (MHz) 806
        Min Gain (dBd/dBi) 3
        Mount Supported Wall mount, Roof mount
        Mount Supported - Detailed MB14 base
        Mounting MB14 base (included)
        No. of Antenna Ports 1
        Nominal Gain [dBi] 3
        Power [W] 50
        Technologies Supported UHF
        Tuned Bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        VSWR <1.9:1
        Whip Length mm 310
        Whip Material 17-7PH Stainless steel with brass ferrule and black high gloss finish
