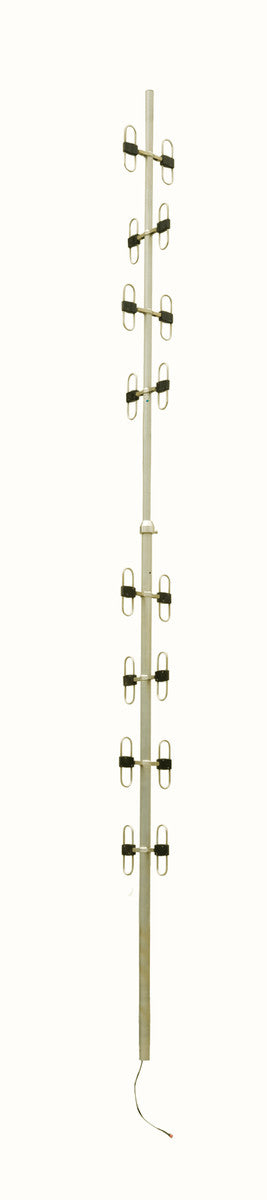

RFI BA160-67-P UHF Omnidirectional Antenna, 400-520 MHz, 4.3-10-Female

RFI BA160-67-P UHF Omnidirectional Antenna, 400-520 MHz, 4.3-10-Female

On backorder

Brand:
Item ID:
167015399
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
BA160-67-P
Discount Offers
RFI 9 dBd Omni-Directional Antenna (400-520 MHz), is engineered for high-population sites requiring long-haul, omnidirectional coverage.
Price on application
Open Request for Quote (RFQ) Form View full details

Product Description

RFI 9 dBd Omni-Directional Antenna (400-520 MHz); -140 dBc PIM 500W 4.3-10(F), is engineered for high-population sites requiring long-haul, omnidirectional coverage. This antenna ensures optimal performance for critical applications with features like extensive side lobe suppression, null fill characteristics, and an industry-leading PIM rating of -140 dBc.

Product Features:

  • High Performance: Ideal for highly populated sites requiring long-haul omnidirectional coverage.
  • Wide Band Operation: Operates over the entire 400-520 MHz band, and offer gains of 3, 6 or 9 dBd (depending on model) exhibiting a VSWR of <1.5:1 across the band.
  • Adjustable Tilt Options: Versions with 0°, 3°, 5°, or 8° of down-tilt available for enhanced close-in coverage characteristics.
  • Advanced Phasing Arrangement: Utilizes an internal phasing harness in PTFE-based double-screened coaxial cable with extra jacket to aid waterproofing and resist bird attack.
  • Robust Construction: All welded alodined aluminum construction minimizes intermodulation and noise, ensuring durability.
  • Lightning-Resistant Design: The entire array rests at ground potential, offering ultimate protection against lightning.

Application Areas:

  • Perfect for highly populated radio sites requiring long-haul omnidirectional coverage.
  • Suitable for high-power multiple transmitter applications with a 500W continuous input power level.

In the Box:

  • RFI BA160-67-P UHF Omnidirectional Antenna
  • 4.3-10-Female connector

Documents:

RFI BA160-67-P Binary Array - Datasheet

Product Specifications

MPN BA160-67-P
Antenna application Base Station Antenna
Antenna cable type RG142
Antenna configuration SISO
Antenna port connectors 4.3-10 (F)
Antenna type Omni
Brands RFI
Cable length m 0.5
Connector 4.3-10 (F)
Coverage type Omni-directional
Downtilt 0? Std, -3?
Frequency range mhz 400 - 520
Height 3
Horizontal beamwidth Omni +/- 0.5dB
Installation type External mounting
Length 99
Low pim Yes
Max frequency mhz 520
Max gain dbd dbi 11
Mimo support No
Min frequency mhz 400
Min gain dbd dbi 11
Mount supported Clamp mount
Mount supported detailed UC-114
No of antenna ports 1
Polarisation Vertical
Power w 500
Technologies supported UHF
Termination 4.3-10 female with 0.5m RG142 cable tail.
Torque nm 1802
Tuned bandwidth Full band
Vswr <1.5:1
Width 3
Wind gust km h 200
Wind thrust 767
