RFI APR153 On-Glass VHF Antenna operates at 150-174 MHz and offers easy installation with a 4.5m cable. The APR153 antenna is a sleek solution for VHF communication needs, featuring patented “On-Glassâ€Â® technology that allows RF transmission and reception through glass. This innovative design eliminates the need for external mounting, providing a seamless look while maintaining reliable performance.

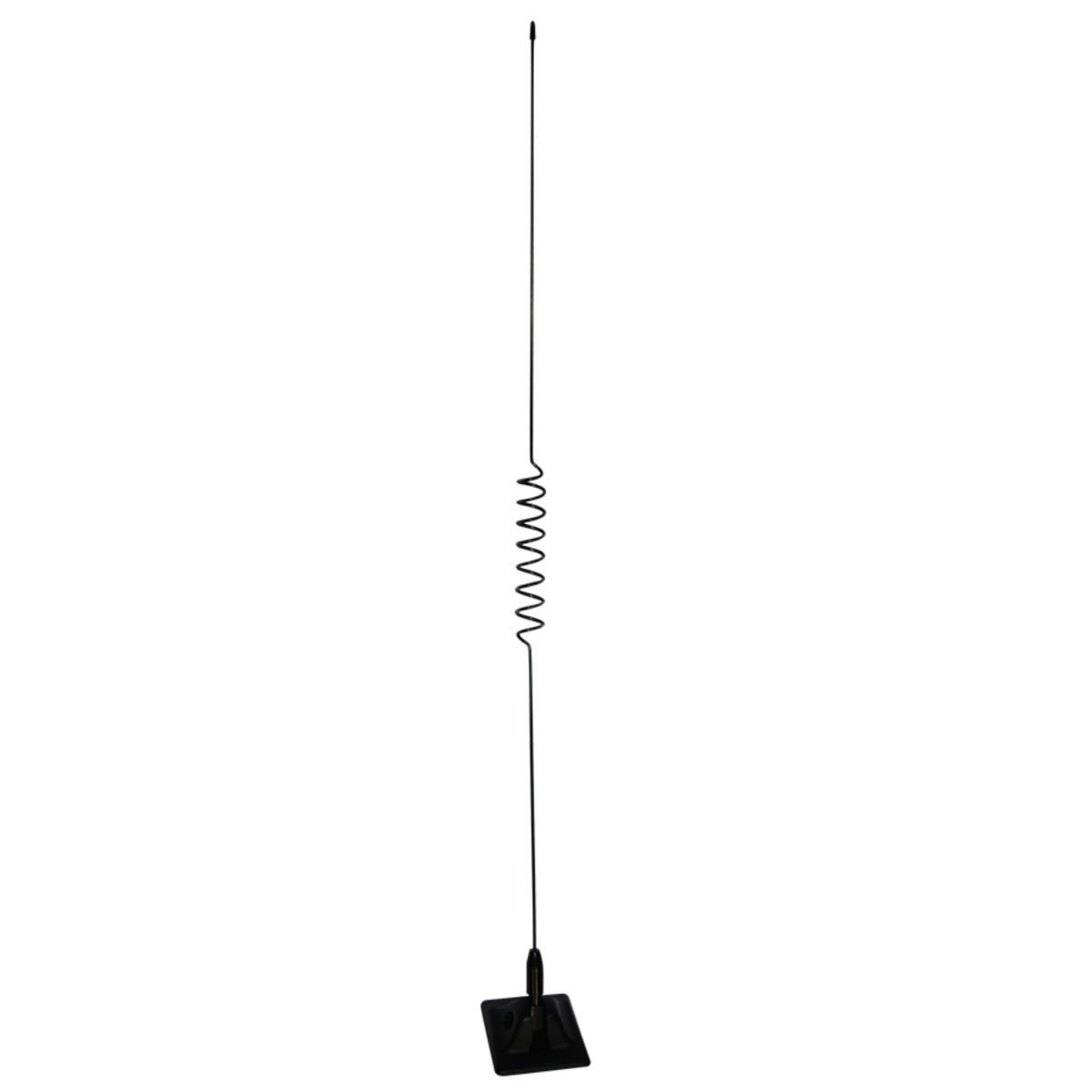

The antenna utilizes DUO-BONDâ„¢ mounting, which ensures a complete seal against moisture and offers long-lasting holding power. This mounting method also allows for installation without the need for drilling holes, making it easy to install and maintain. With its small, stylish coupling box mounted inside the vehicle and a centrally wound stainless steel whip section, the APR153 antenna offers a similar appearance to the 'pigtail' look popular with cellular on-glass antennas. This design not only enhances the aesthetics of the antenna but also contributes to its functionality.
Features:
-
Patented On-Glass® Technology: Transmit and receive signals through glass for seamless communication.
-
Efficient DUO-BONDâ„¢ Mounting: Allows for installation without drilling holes, ensuring a secure seal and durability.
-
Optimal Mounting: Mount high in the vehicle for optimal omni-directional coverage.
-
Adjustable Whip: The whip is easily adjustable to a vertical position and removable for car wash clearance.
-
Disguised Design: The antenna sports a disguised cellular look-alike appearance, ideal for covert public safety applications.
Product Specifications:
-
Model number (MPN): APR153
-
Frequency: 150-174 MHz
-
Gain: Unity
-
Maximum Power: 50 Watts
-
Impedance: 50 Ohms
-
VSWR: < 1.5:1
-
Radiator Material: Stainless steel, black DURA-COATâ„¢ finish
-

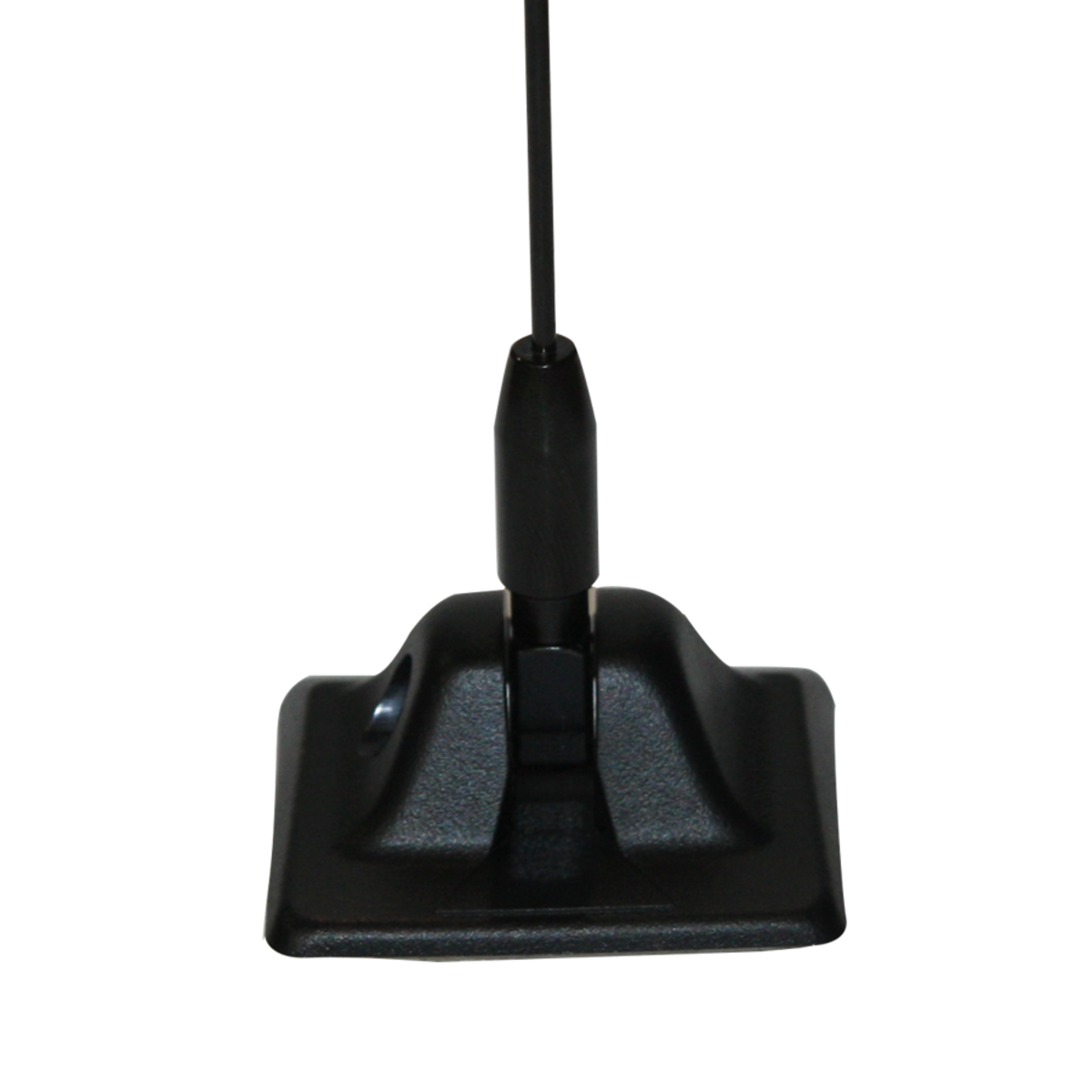

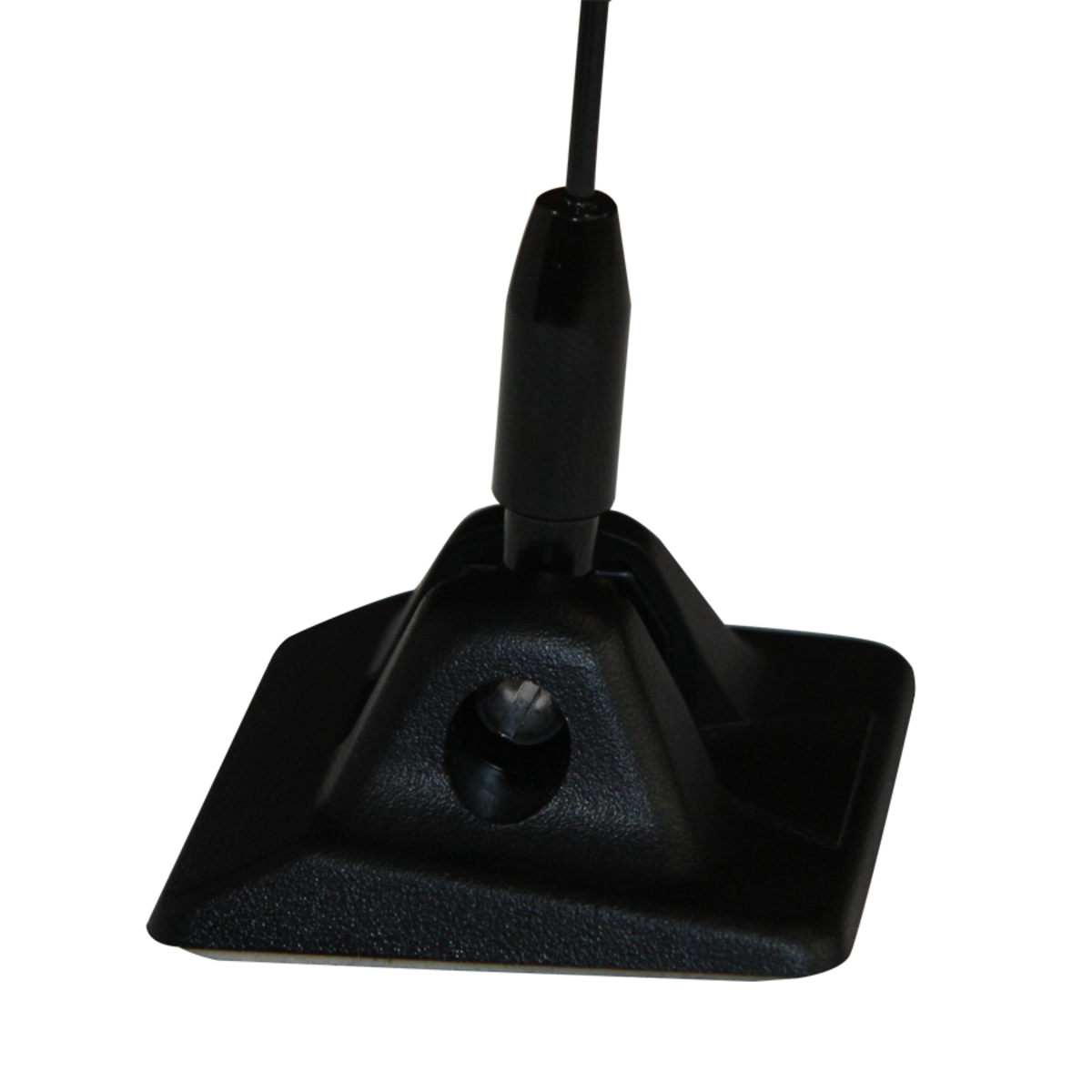

Coupling Unit: Polyurethane moulded foot with brass insert and stainless steel hardware
-
Whip Length: 503mm
-
Cable: 4.5M RG58C/U
-
Connector: Not supplied
-
Mounting Method: Glass Mount
-
Antenna Type: Omni
-
Antenna Application: Vehicle Antenna
-
Antenna Configuration: SISO
Documents:
15397 - RFI APR153 VHF On-Glass Antenna - Installation Guide
15397 - RFI APR153 VHF On-Glass Antenna - Datasheet
