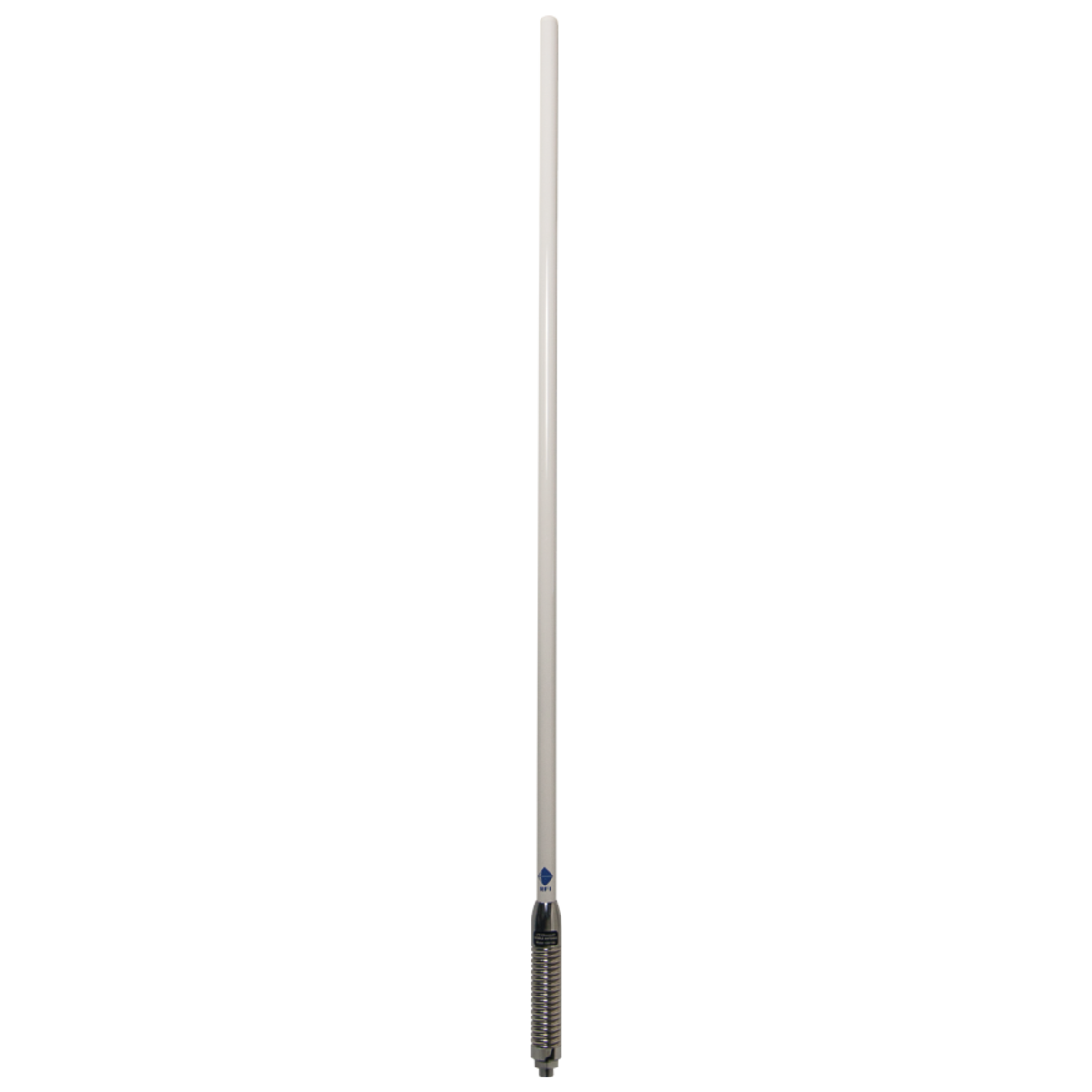

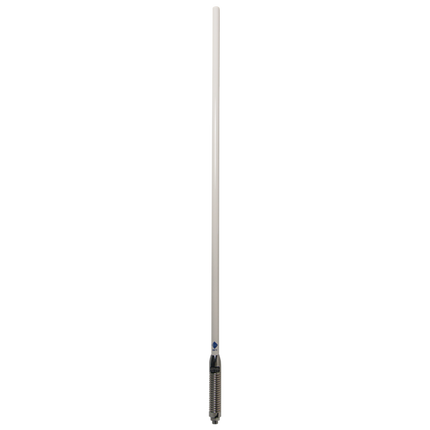

The RFI UHF CB Collinear Antenna CD5000-W is a 5 dBi antenna designed for the 477 MHz frequency. It comes with a 5.0m 9006 cable with FME-101 connector terminated and UHF adapter. The CD5000 Series antenna is a high-gain mobile antenna, perfect for applications in fringe areas and rural settings where performance is crucial. Its robust design features a fiberglass radome, available in black (CD5000-B) or white (CD5000-W), housing the radiating element. This radome is securely mounted to an integral heavy-duty electropolished stainless steel spring. RFI UHF CBRS Antenna is versatile and can be installed on various mounting brackets such as mirror mounts, bull bar mounts, gutter grips, or fender mounts with a 13 mm stud mount and ground-plane-independent design. It is well-suited for installation in commercial vehicles, four-wheel drives, and trucks, providing reliable communication in challenging environments.

Features:

• Robust Construction: Designed for heavy-duty applications, the RFI CB Collinear Antenna is built to withstand challenging conditions.
• Versatile Mounting Options: With a 13 mm stud mount and ground plane independent design, the antenna can be mounted on various brackets, including mirror, bull bar, gutter, or fender mounts.
• Suitable for Multiple Vehicles: Ideal for commercial vehicles, four-wheel drives, and trucks, the antenna offers reliable performance in diverse settings.
• Base Station Use: Its ground plane independent design also makes it suitable for use as a base station antenna.
• High Gain: Offers a genuine 5 dBi gain, perfect for fringe areas and country applications.
• Color Options: Available in black (CD5000-B) and white (CD5000-W).
• Patented PCB Design: Features a patented PCB-based collinear design for optimal pattern and gain stability.

Electrical Specifications:

• Gain: 5dB over a ¼ wave
• Frequency: 477MHz
• Power: 25W
• Tuned Bandwidth: Entire specified band @ <1.5:1 VSWR
• Tuning: Supplied pre-tuned

Mechanical Specifications:

• Whip Length: 900 mm
• Mounting: Threaded stud and nut assembly; requires a 16mm clearance hole
• Cable and Connector: Supplied with a 5.0m 9006 cable terminated with an FME-101 connector, with a UHF adapter supplied.

Documents:

RFI CD5000 UHF Antenna - Datasheet RFI CD5000 UHF Antenna - Installation Guide
