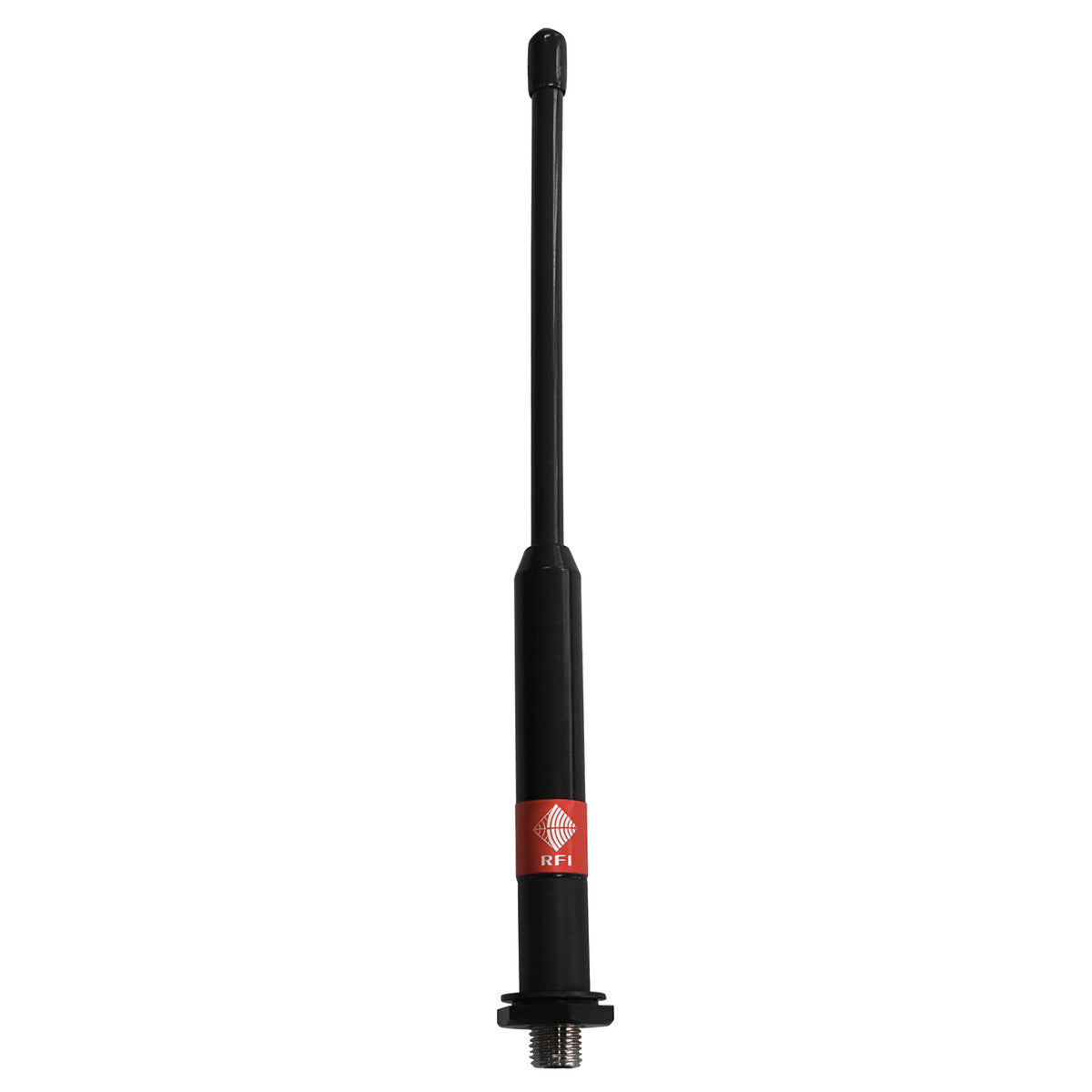

RFI CD1150 Mopole Antenna, E/Feed, 820-896 MHz, 1.5 dBi, 5m, No Connector

RFI CD1150 Mopole Antenna, E/Feed, 820-896 MHz, 1.5 dBi, 5m, No Connector

Low stock

Brand:
Item ID:
168014026
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD1150
Send Request for Quote (RFQ) Discount Offers
RFI CD1150 Mopole Antenna is an efficient, affordable and reliable solution. These 1.5 dB gain elevated feed antennas are ideal in applications where height and aesthetics are a consideration.
Regular price $106.50
Regular price $0.00 Sale price $106.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI CD1150 Mopole Antenna is a 1.5 dB gain elevated feed antenna designed for scenarios where height, aesthetics, and consistent performance are crucial. Its elevated feed structure lifts the radiating element above the vehicle roof, enabling a strong omnidirectional pattern. It's ground-independent design in antenna delivers reliable signal strength regardless of its mounting position.

Product Features:

  • A stud-mounted design simplifies installation on gutter or mirror mounts.
  • The flexible PVC-enclosed radiator enhances durability and allows for excellent bend resistance.
  • The antenna provides 1.5 dB gain over a ¼ wave for dependable signal coverage.
  • It supports the 820–896 MHz frequency range, ideal for mobile and fixed cellular applications.
  • With a power handling capacity of 50 watts and a tuned bandwidth of 70 MHz @ <2:1 VSWR.
  • The antenna is pre-tuned at the factory and ready for immediate installation without adjustments.
  • The whip is made of brass with an elevated feed, enclosed in durable, flexible PVC tubing.
  • It includes a threaded stud and nut assembly, requiring only a 16 mm clearance hole for mounting.

Application Areas:

  • Ideal for vehicles where antenna height and discreet aesthetics are a priority.
  • Perfect for commercial fleet vehicles and fixed installations requiring budget-friendly connectivity.
  • Suitable for use in urban, regional, and remote locations where dependable mobile coverage is necessary.
  • Recommended for use with gutter or mirror-mounted antenna setups on trucks, vans, and other service vehicles.

In the Box:

  • 1 x RFI CD1150 Mopole Antenna
  • 1 x 5.0m Cellfoam® cable
  • No connector

Documents:

RFI CD1150 Antenna - Datasheet

Product Specifications

MPN CD1150
Antenna application Vehicle Antenna
Antenna cable type Cellfoam
Antenna configuration SISO
Antenna port connectors No connector
Antenna type Ground Independent
Band 820 - 896MHz
Brands RFI
Cable and connector 5.0m Cellfoam? cable. Please specify connector
Cable length m 5
Coverage type Omni-directional
Frequency band ISM Bands 300 MHz & 400 MHz & 8900 MHz
Frequency mhz 820-896
Height 5
Installation type Vehicle mounting
Length 25
Low pim No
Max frequency mhz 896
Max gain dbd dbi 1.5
Mimo support No
Min frequency mhz 820
Min gain dbd dbi 1.5
Mount supported Stud mount
Mount supported detailed Stud mount
Mounting Threaded Stud
No of antenna ports 1
Nominal gain dbq 1.5
Power w 50
Technologies supported UHF
Tuned bandwidth Full. No tuning required
Tuning Supplied pre-tuned, ready for installation
Vswr <2.1:1
Whip length mm 195 (including elevated feed section)
Whip material Brass elevated feed, radiator enclosed in flexible PVC tubing
Width 5
