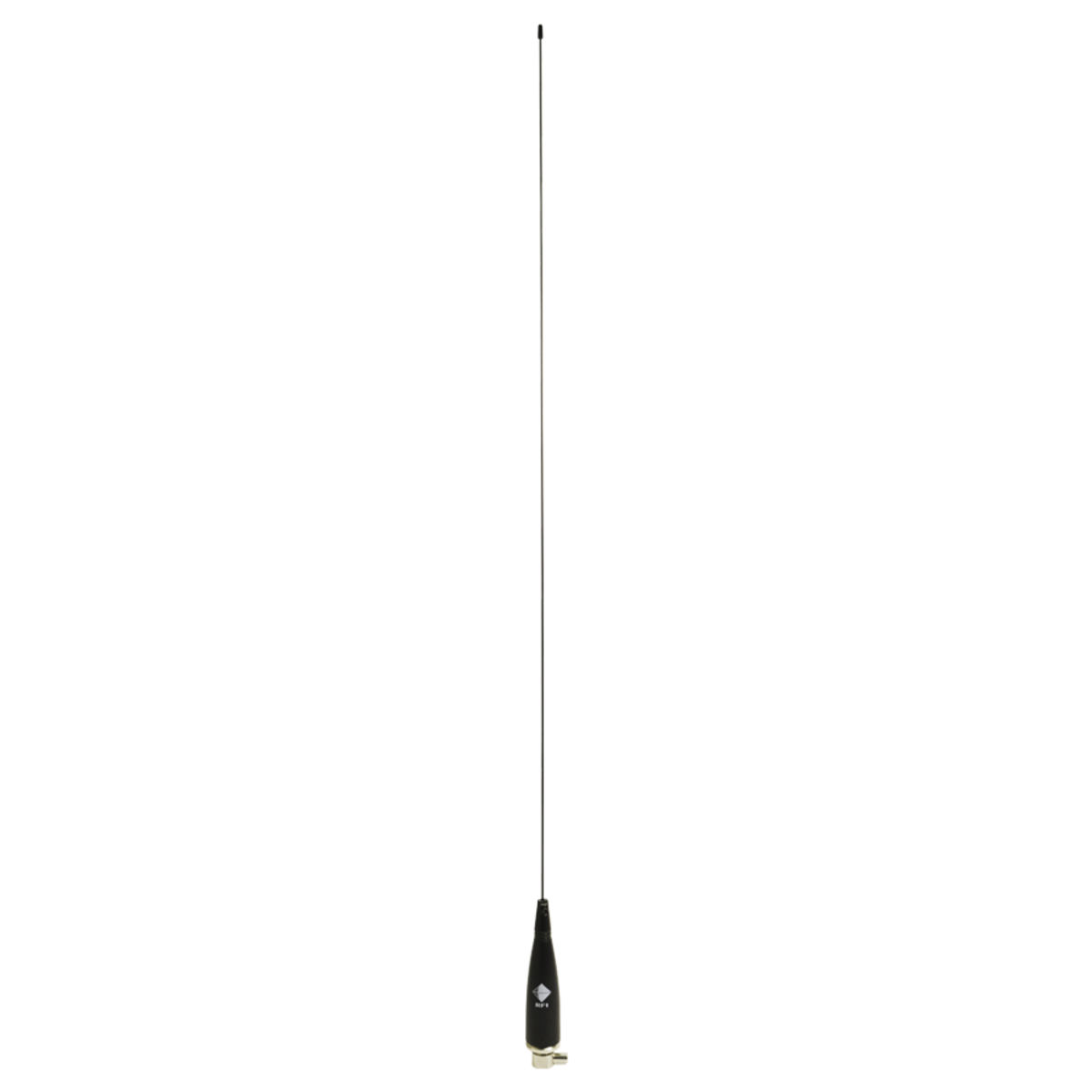

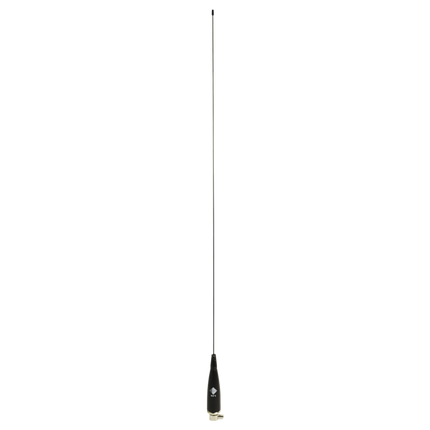

RFI CD19-7785-50 VHF Mid-Band Antenna, 77-85 MHz, 1.5 dB, MBC Base, No Cable

RFI CD19-7785-50 VHF Mid-Band Antenna, 77-85 MHz, 1.5 dB, MBC Base, No Cable

Available

Brand:
Item ID:
167015498
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD19-7785-50
Send Request for Quote (RFQ) Discount Offers
RFI CD19-7785-50 VHF Mid-Band 1.5 dB Broadband Antenna (77-85 MHz); MBC Base No Cable - features no-tune design and rugged construction.
Regular price $187.50
Regular price $0.00 Sale price $187.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI CD19-7785-50 Antenna; 1.5 dB Broadband VHF Mid-Band Mopole Antenna; 77-85 MHz with MBC Base and without Cable - offers exceptional bandwidth coverage without compromising performance. These antennas eliminate the need for field tuning, with a no-tune design, reducing installation costs and complexity and improve overall frequency coverage. RFI CD19 Antenna features an integrated matching circuit. These antennas are housed in a rugged, impact-resistant base for maximum durability. The tapered black powder-coated stainless steel highly flexible whip further enhances their resilience. Designed to interface seamlessly with standard MBC (Right Angle SO-239) mobile mounts. The CD19 antennas facilitate easy upgrades to existing installations. Whether used in fleet vehicles, public safety vehicles, or other mobile applications, the CD19 Series antennas provide reliable and efficient communication.

Features:

  • Integrated Matching Circuit: Housed in a rugged, impact-resistant base for maximum durability.
  • Flexible Whip: The RFI CD19 Antenna's whip is designed to be flexible yet durable, with a black powder coating for added protection.
  • Compatibility: Designed to interface with standard PL259 (MBC) mobile mounts for easy installation upgrades.
  • Ground Plane Dependent Design: The antenna's performance is optimized when installed with a ground plane, ensuring maximum efficiency.
  • Ultra-Broadband Coverage: The antenna offers wide frequency coverage 77-85 MHz without the need for manual tuning, simplifying installation and setup.
  • Virtually Indestructible Base: The antenna's base is constructed to withstand harsh environmental conditions, ensuring long-lasting durability.

Mechanical Specifications:

  • Whip Material: Tapered black powder-coated stainless steel
  • Length mm: 1040
  • Mounting: MBC (Right Angle SO-239)

Documents:

RFI CD19 Antenna - Datasheet RFI CD19 Antenna - Installation Guide

Product Specifications

MPN CD19-7785-50
Antenna application Vehicle Antenna
Antenna configuration SISO
Antenna features Omnidirectional
Antenna port connectors No connector
Antenna type Ground Independent, MBC Base Mount
Brands RFI
Coverage type Omni-directional
Frequency band VHF Mid Band 66-88 MHz
Height 2
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 85
Max gain dbd dbi 1.5
Mimo support No
Min frequency mhz 77
Min gain dbd dbi 1.5
Mount supported MBC base
Mount supported detailed MBC base - Right Angle
No of antenna ports 1
Nominal gain dbq 1.5
Polarisation Vertical
Power w 50
Technologies supported VHF
Vswr <1.8:1
Width 2
