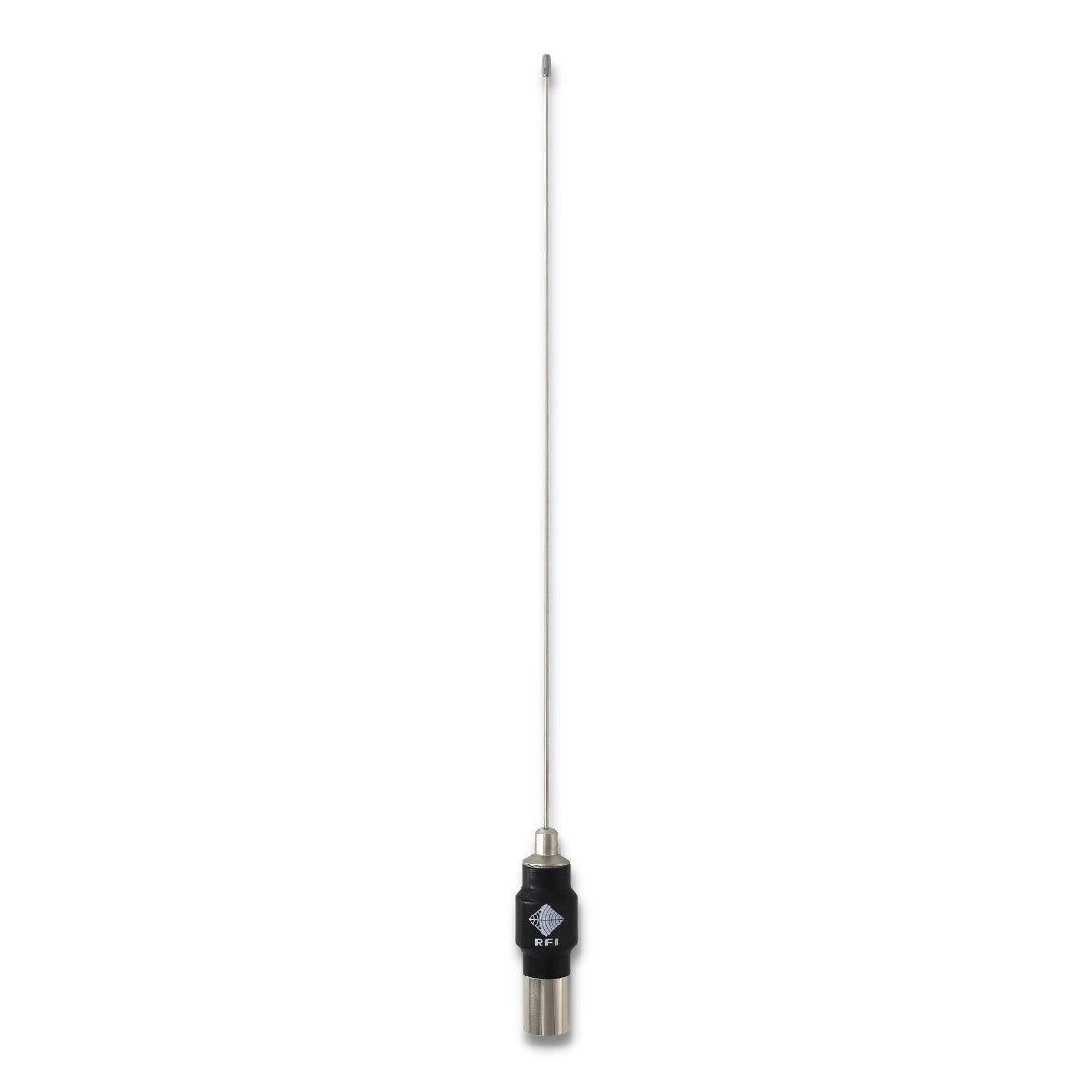

RFI CD50-68-53 UHF Mopole Antenna, 450-520 MHz, 4 dB, MBC Base, 5m, No Connector

RFI CD50-68-53 UHF Mopole Antenna, 450-520 MHz, 4 dB, MBC Base, 5m, No Connector

Available

Brand:
Item ID:
168015580
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD50-68-53
Send Request for Quote (RFQ) Discount Offers
RFI CD50-68-53 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 450-520 MHz frequency range with a versatile end-fed design and patented feed assembly.
Regular price $106.50
Regular price $0.00 Sale price $106.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI CD50-68-53 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 450-520 MHz frequency range with a versatile end-fed design and patented feed assembly. The CD50/CD51 antennas provide performance with a largely omni-directional pattern when they are mounted on a vehicle gutter or similar position. This is due to the low angle of radiation inherent in the dipole antenna pattern, resulting in a typical 4.0 dB improvement in performance compared to a 3-wave whip in the center of a metal roof.

Product Features:

  • The antenna features a unique end-fed transformer design in its base to ensure consistent RF performance.
  • The patented feed assembly enables precise impedance matching through coaxial dielectric trimming.
  • The omnidirectional radiation pattern delivers up to 4 dB of gain over a conventional ¼-wave antenna.
  • The low-angle radiation design allows reliable performance when mounted in non-center roof positions.
  • The MBC coaxial base supports flexible mounting and provides a permanent, sealed connection.
  • The rugged base coil construction ensures long-term durability under harsh environmental conditions.
  • The antenna offers a choice of stainless-steel (CD50 series) or nylon (CD51 series) whips to suit different installation needs.
  • The design is protected by Australian Patents #596830 and #656793.

Application Areas:

  • This antenna is ideal for vehicle-mounted radio communication systems used by emergency services and fleet management operators.
  • It is well suited for industrial and mining vehicles that require robust UHF antenna performance in demanding environments.
  • It performs reliably in installations where center-roof mounting is not possible, such as on fenders or bull bars.
  • It accommodates custom communications setups by using the MBC base for sealed, permanent mounting configurations.

In the Box:

  • 1 x RFI CD50-68-53 UHF 4 dB Mopole Antenna
  • 1 x MBC Coaxial Base
  • Cables and Connectors (sold separately)

Mounting Arrangements:

  • CD50-xx-70 and CD51-xx-70: Mount via a threaded stud and nut assembly, allowing easy termination, tuning, and re-termination in the field.
  • CD50-xx-50 and CD51-xx-50: Mate with the MBC coaxial base, providing an internal, permanent connection in a completely sealed unit.

Documents:

RFI CD50 UHF Antenna - Datasheet RFI CD50 UHF Antenna - Installation Guide

Product Specifications

MPN CD50-68-53
Antenna application Vehicle Antenna
Antenna cable type RG58C/U
Antenna configuration SISO
Antenna port connectors No connector
Antenna type Ground Independent
Band 450 - 520MHz
Brands RFI
Cable length m 5
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 450-520
Height 3
Installation type Vehicle mounting
Length 40
Low pim No
Max frequency mhz 520
Max gain dbd dbi 4
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 4
Mount supported MBC base
Mount supported detailed MBC base
Mounting MBC Base (Included)
No of antenna ports 1
Nominal gain dbi 4
Power w 50
Technologies supported UHF
Tuned bandwidth 13 MHz @ <1.5:1 VSWR
Tuning Field tune to minimum VSWR using supplied tuning chart
Vswr 13 MHz @ <1.5:1 VSWR
Whip length mm 395
Whip material 17-7 PH stainless steel
Width 3
