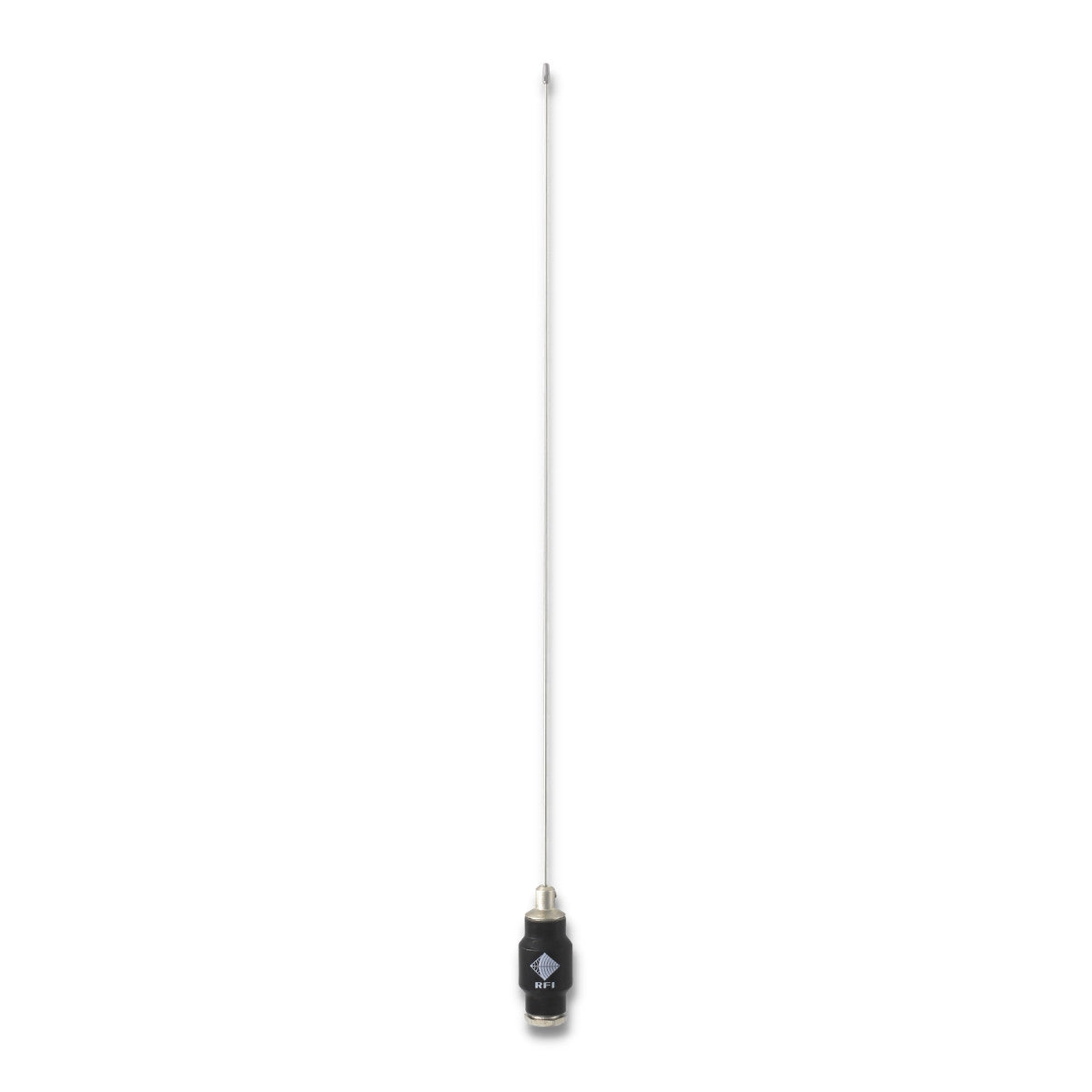

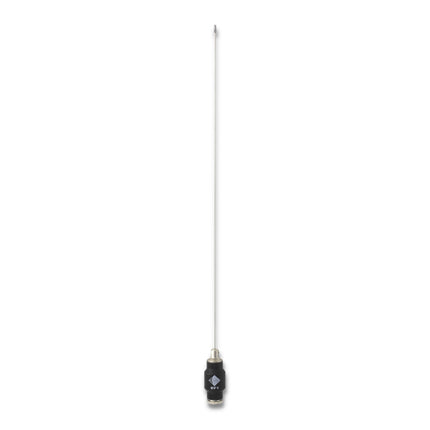

The RFI CD50-68-70 UHF Mopole Antenna is a high-performance, 4 dB gain antenna designed for reliable communication across the 450-520 MHz frequency range with a versatile end-fed design and patented feed assembly. The CD50/CD51 antennas provide performance with a largely omni-directional pattern when they are mounted on a vehicle gutter or similar position. This is due to the low angle of radiation inherent in the dipole antenna pattern, resulting in a typical 4.0 dB improvement in performance compared to a 3-wave whip in the center of a metal roof.

Product Features:

• The antenna features a unique end-fed transformer design in its base that ensures consistent RF performance.
• The patented feed assembly enables precise impedance matching through coaxial dielectric trimming.
• Its omnidirectional radiation pattern offers up to 4 dB of gain over a conventional ¼-wave antenna.
• It performs reliably in non-center roof mounting positions due to its low-angle radiation design.
• The MBC coaxial base supports flexible mounting and provides a permanent, sealed connection.
• Its rugged base coil construction ensures long-term durability under harsh environmental conditions.
• It offers a choice of whip materials stainless steel (CD50 series) or nylon (CD51 series) to suit different installation needs.
• The design is protected by Australian Patents #596830 and #656793.

Application Areas:

• This antenna is ideal for vehicle-mounted radio communication systems used by emergency services and fleet management operators.
• It is suitable for industrial and mining vehicles that require robust UHF antenna performance in demanding environments.
• It performs reliably in installations where center-roof mounting is not possible, such as on fenders or bull bars.
• It accommodates custom communications setups by using the MBC base for sealed, permanent mounting configurations.

In the Box:

• 1 x RFI CD50-68-70 UHF 4 dB Mopole Antenna
• 1 x Stud Mount
• Cables and Connectors (sold separately)

Mounting Arrangements:

• CD50-xx-70 and CD51-xx-70: Mount via a threaded stud and nut assembly, allowing easy termination, tuning, and re-termination in the field.
• CD50-xx-50 and CD51-xx-50: Mate with the MBC coaxial base, providing an internal, permanent connection in a completely sealed unit.
