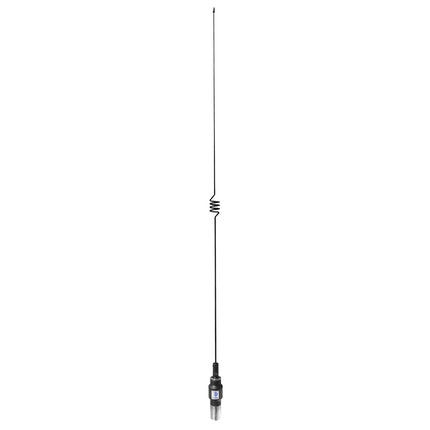

RFI CD63-71-53 UHF CB Antenna, 477 MHz, MBC Base, 5m, No Connector

RFI CD63-71-53 UHF CB Antenna, 477 MHz, MBC Base, 5m, No Connector

Available

Brand:
Item ID:
168015617
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CD63-71-53
Send Request for Quote (RFQ) Discount Offers

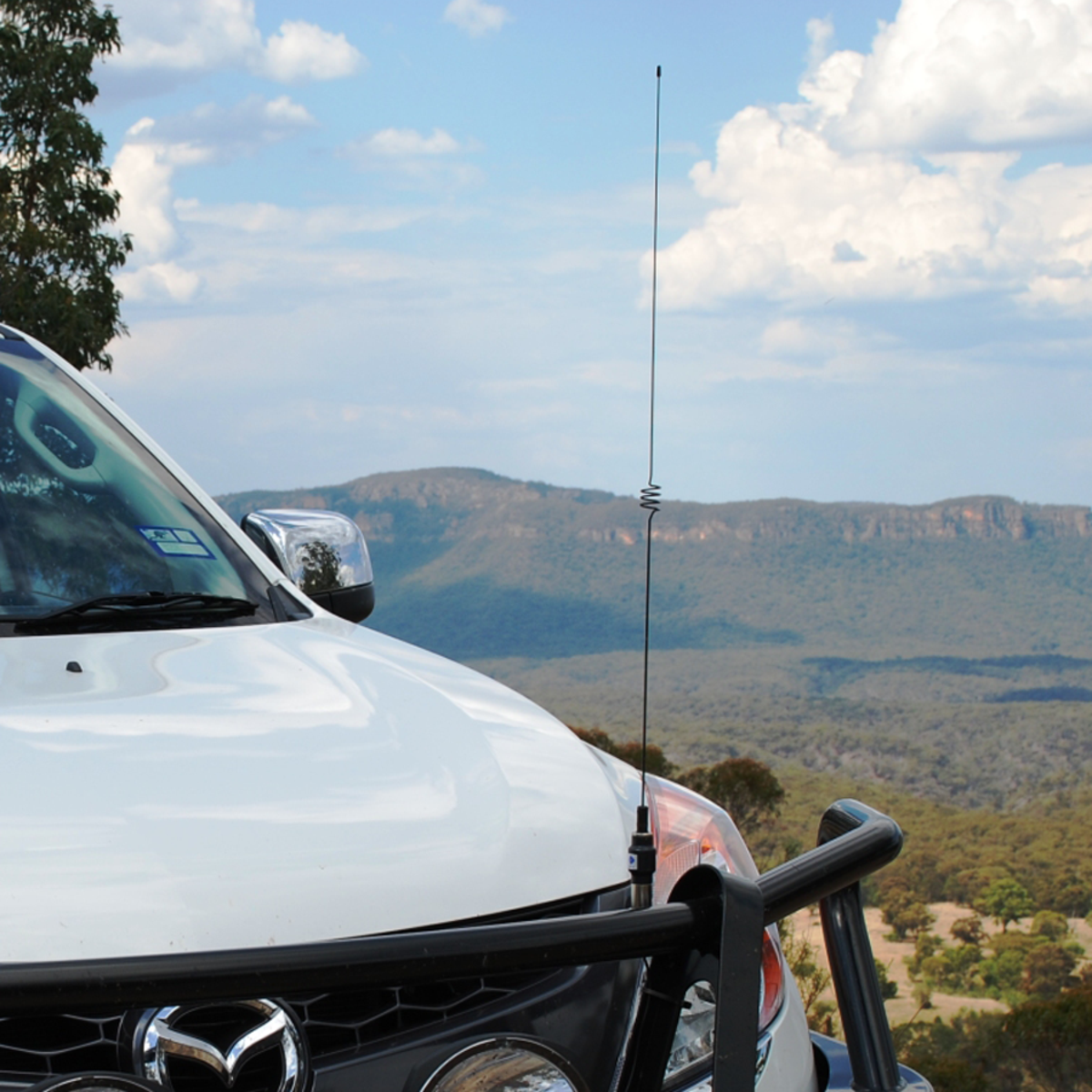

RFI CD63 UHF CB Mopole Antenna (477 MHz); MBC 5m No Connector allows mounting in a variety of positions including vehicle mirror, gutter or roof bar mounts.
Regular price $121.50
Regular price $0.00 Sale price $121.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

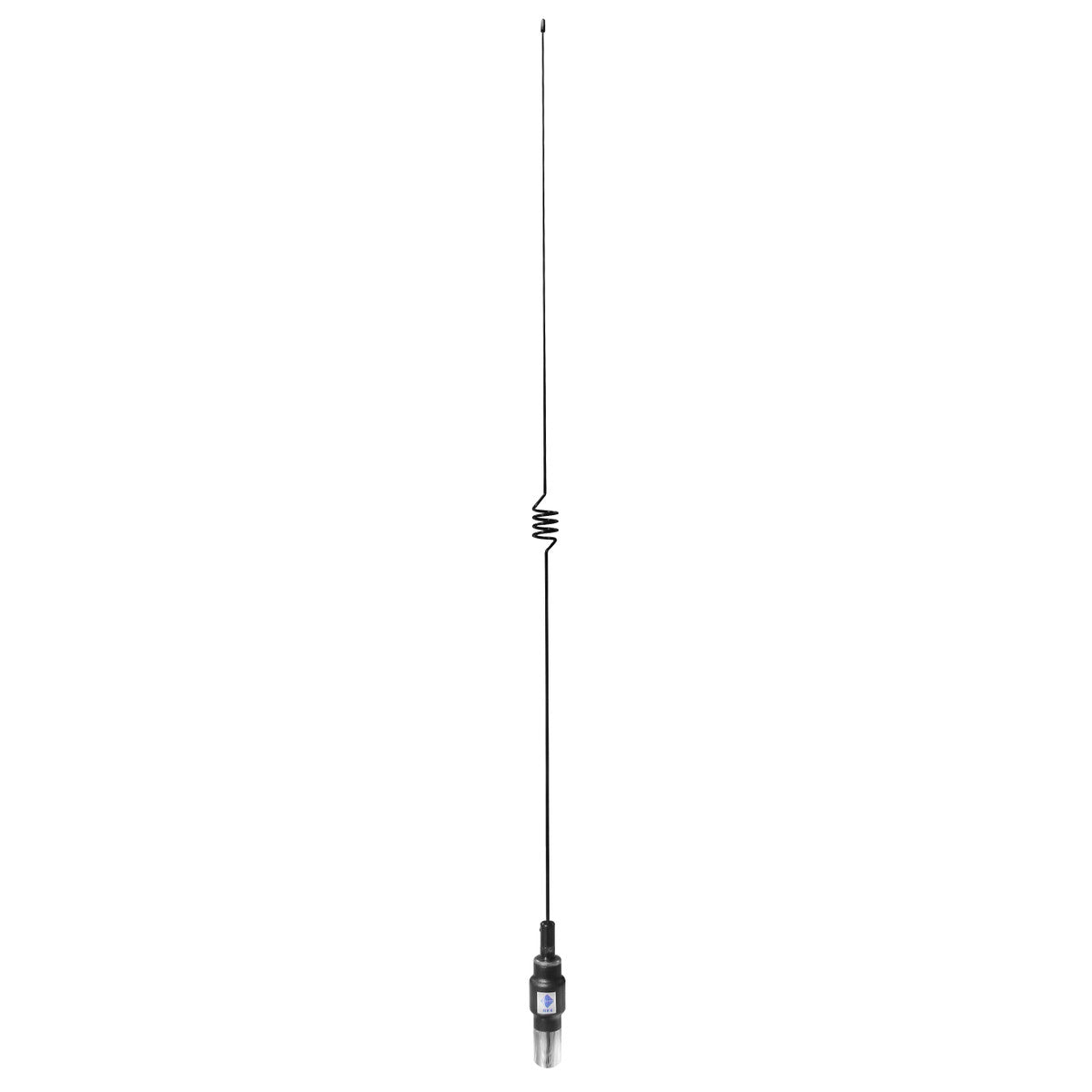

The RFI CD63 UHF CB Mopole Antenna stands out for its remarkable performance, thanks to its unique high impedance matching circuit in the base coil. This innovative design allows for the end feeding of the collinear whip section, enhancing signal reception. The antenna features a 5/8 over 1/2 wave radiator crafted from a single piece of high resilience 17-7PH stainless steel, ensuring durability and optimal performance. Designed for versatility, the CD63 antenna offers true ground independence, allowing it to be mounted in various positions such as vehicle mirrors, gutters, or roof bar mounts. It exhibits an impressive 6.0 dB gain over a ¼ wave whip when mounted in the center of a metal roof, highlighting its excellent performance. The stainless steel whip is flexible and returns to its original shape after bending, while the base coil, housed in a high-impact thermoplastic molding, ensures rugged durability. The antenna's stylish black finish complements vehicle styling, making it a practical and attractive choice for UHF CB communication needs. Mopole antennas like the CD63 demonstrate a notable 6 dB improvement in received signal level in practical field conditions compared to a ¼ wave whip. However, in pattern tests, they only show a 1.5 to 2 dB improvement over a ¼ wave, which is equivalent to 1.5-2 dBq. This enhanced performance is due to the lower radiation angle level of these ground-independent antennas. The CD63 Series Mopole Antennas are available in two mounting options: removable MBC style (CD63-71-5x) or threaded stud and nut (CD63-71-7x). The MBC base includes a 5m RG58C/U cable (no connector), providing a convenient and reliable solution for UHF CB communications.

Features:

  • Versatile Mounting: Offers true ground independence, allowing mounting in various positions such as vehicle mirrors, gutters, or roof bar mounts.
  • Excellent Performance: Exhibits 6.0 dB gain over a ¼ wave whip mounted in the center of a metal roof.
  • Flexible Whip: The stainless steel whip returns to its original shape after bending.
  • Rugged Construction: The base coil is housed in a high impact thermoplastic molding, ensuring durability.
  • Stylish Design: Features an attractive black finish that complements vehicle styling.

Electrical Specifications:

  • Frequency Range: 476-478 MHz
  • VSWR: <1.5:1
  • Gain: 6 dBq
  • Tuned Bandwidth: Full
  • Power Handling: 20 W

Mechanical Specifications:

  • Whip Material: 17-7PH Stainless Steel
  • Whip Length: 800 mm
  • Mounting: MBC base (supplied)
  • Cable & Connector: 5m RG58 (No connector)

Documents:

RFI CD63 Antenna - Datasheet RFI CD63 Antenna - Installation Guide

Product Specifications

MPN CD63-71-53
Antenna application Vehicle Antenna
Antenna cable type RG58
Antenna configuration SISO
Antenna features Omnidirectional
Antenna port connectors Not included, order separately
Antenna type Ground Independent
Band UHF CB
Brands RFI
Cable and connector None supplied
Cable length m 5
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 476-478
Height 3
Installation type Vehicle mounting
Length 80
Low pim No
Max frequency mhz 478
Max gain dbd dbi 6
Mimo support No
Min frequency mhz 476
Min gain dbd dbi 6
Mount supported MBC base
Mount supported detailed MBC base
Mounting MBC Base (Included)
No of antenna ports 1
Nominal gain dbq 6
Packaging Clear hanging bag
Polarisation Vertical
Power w 20
Technologies supported UHF CB
Technology type UHF
Tuned bandwidth Full. No tuning required
Vswr <1.5:1
Whip length mm 800 (whip and coil only)
Whip material 17-7PH Stainless steel
Width 3
