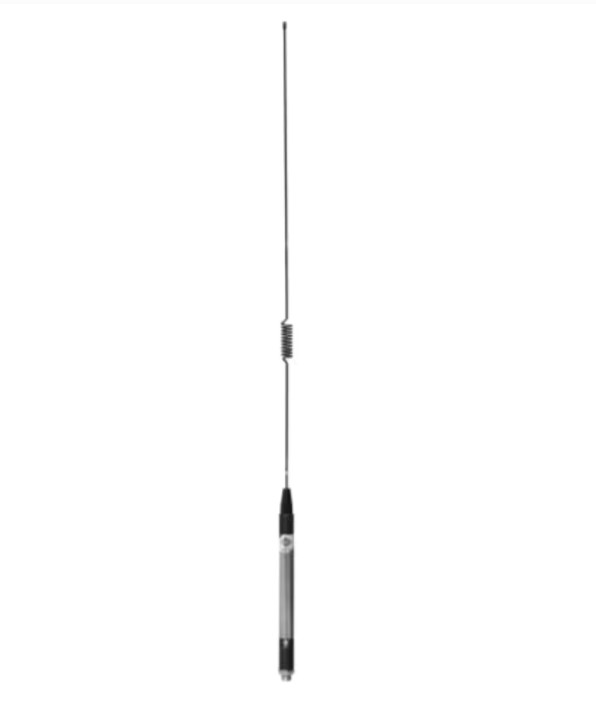

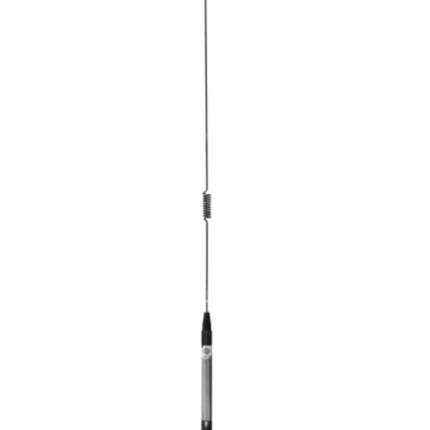

This model CD93-72-70 supports operation over 490 MHz to 520 MHz and is not supplied with any cable. The CD93 Series is high performance elevated feed mobile antennas which can be used in virtually any mounting position. When gutter or roof bar mounted, high above a vehicle and delivers a full 6.5dB of gain over a 1/4 wave whip.

Products Features:

• Totally ground plane independent
• Elevated feed boosts radiating element above obstructions - Phasemaster whip section provides superior performance and strength
• High quality construction
• Choke assembly is crafted from chrome plated solid brass
• Can be used with a variety of mounts

Mopole antennas such as the CD93-72-70 has been shown to exhibit a 6.5 dB improvement in received signal level in the field when compared to a ¼ wave whip however in pattern tests exhibit only 1.5 to 2 dB over a ¼ wave (equivalent to 1.5-2 dBi). This improvement in performance can be attributed to a lower radiation angle level of these ground independent antennas.

Documents:

RFI CD93 Antenna - Datasheet
