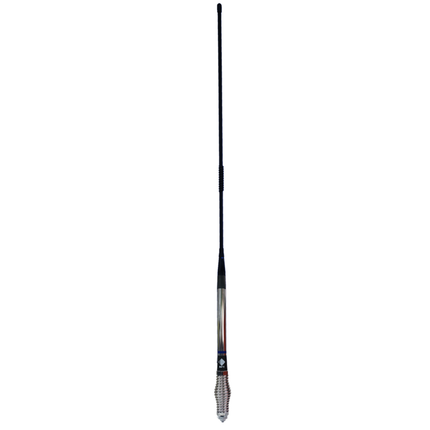

The RFI CD953 CB Antenna with spring offers a 6.5 dB gain and operates in the 470-490 MHz frequency range. It includes 5m cable terminated with FME female & supplied with FME to UHF adaptor, providing reliable performance for UHF CB applications. The CD900 Series offers high-performance elevated feed mobile antennas suitable for a wide range of mounting positions. When mounted on a gutter or roof bar, high above the vehicle, these antennas provide a significant 6.5 dB gain over standard 1/4 wave whip antennas, ensuring enhanced signal reception.
Even when mounted in other positions, such as on a vehicle fender or bull bar, the elevated feed design of the CD900 Series antennas ensures optimal performance. By placing a large portion of the antenna above the vehicle cabin, these antennas deliver consistent, all-round performance regardless of the mounting position. Engineered for versatility and performance, the CD900 Series antennas are an excellent choice for professionals seeking reliable communication solutions. Whether used for commercial, emergency, or recreational purposes, these antennas provide superior signal reception and performance, making them a valuable addition to any communication setup.
Product Features:
- Ground plane independent design allows for flexible mounting locations without performance loss.
- Elevated feed structure raises the radiating element above the vehicle to improve signal transmission and reception.
- FW15-HD heavy-duty fibreglass whip delivers exceptional durability and signal performance.
- Precision-engineered choke assembly made from solid brass, available in chrome or black finishes for added resilience and style.
- Supplied pre-terminated with an FME female connector and includes a UHF male adaptor for quick and easy installation.
- Compatible with a variety of vehicle mount types, offering installation flexibility for different vehicle configurations.
Application Areas:
- UHF CB communications in commercial fleets and utility vehicles.
- Emergency response vehicles requiring dependable wide-area communication.
- Recreational 4WD or caravan users operating in remote or rugged terrain.
- Installations requiring robust and elevated antennas for maximum signal coverage.
In the Box:
- 1 x RFI CD953-71-75 UHF CB Antenna with spring
- 1 x FW15-HD Fibreglass Whip
- 1 x 5m Cable with FME(F) Connector
- 1 x FME(F) to UHF(M) Adaptor
Documents:
RFI CD953 Antenna - Datasheet
RFI CD953 Antenna - Cabling Instructions
