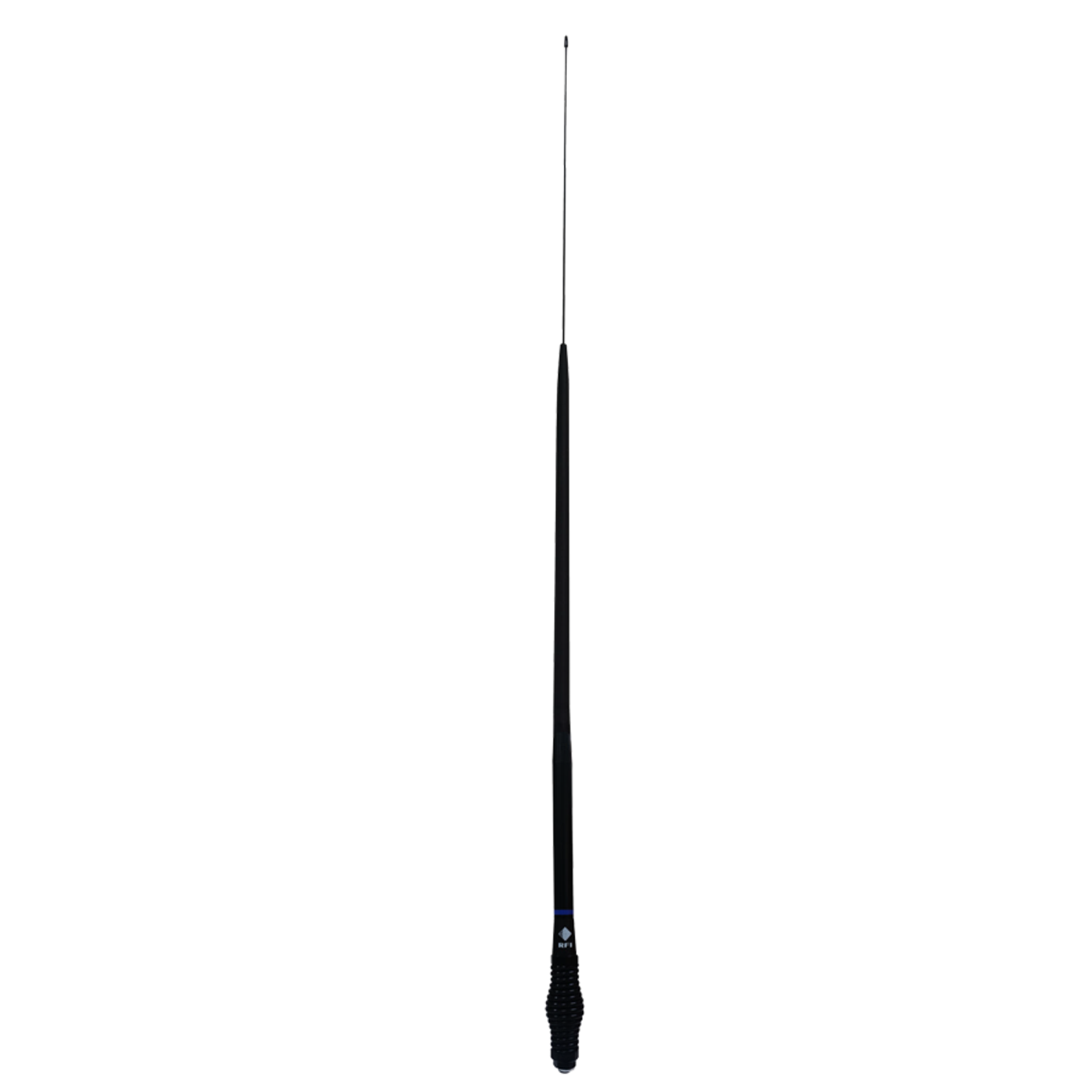

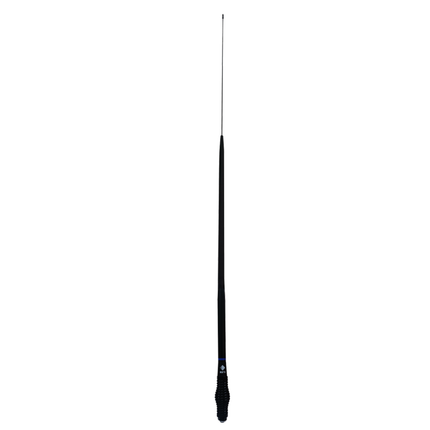

The RFI CD961-71-75 UHF CB Antenna offers a 6.5 dB gain and operates in the 470-490 MHz frequency range. It includes 5m cable terminated with FME female & supplied with FME to UHF adaptor, providing reliable performance for UHF CB applications. The CD900 Series offers high-performance elevated feed mobile antennas suitable for a wide range of mounting positions. When mounted on a gutter or roof bar, high above the vehicle, these antennas provide a significant 6.5 dB gain over standard 1/4 wave whip antennas.
Even when mounted in other positions, such as on a vehicle fender or bull bar, the elevated feed design of the CD900 Series antennas ensures optimal performance. By placing a large portion of the antenna above the vehicle cabin, these antennas deliver consistent, all-round performance regardless of the mounting position. Engineered for versatility and performance, the CD900 Series antennas are an excellent choice for professionals seeking reliable communication solutions. Whether used for commercial, emergency, or recreational purposes, these antennas provide superior signal reception and performance, making them a valuable addition to any communication setup.
Product Features:
- Ground plane independent design allows for flexible mounting on various vehicle locations.
- Elevated feed design raises the radiating element above obstructions for superior performance.
- Equipped with the MSW35 Phasemaster whip for unmatched strength and signal reliability.
- Includes a robust spring assembly to absorb vibrations and impacts during off-road or mobile use.
- Choke assembly crafted from solid brass with chrome and black finish options for durability and aesthetics.
- Pre-terminated with a 5m FME(F) cable and supplied with a UHF(M) adaptor for hassle-free installation.
- Compatible with a variety of vehicle and base mounts for broad application use.
Application Areas:
- UHF CB communication for commercial and logistics fleets.
- Emergency service and public safety vehicles operating in remote areas.
- 4WD and off-road vehicles requiring rugged, flexible antenna systems.
- Rural and outback applications where high gain and impact resistance are critical.
In the Box:
- 1 x RFI CD961-71-75 UHF CB Antenna with Spring
- 1 x MSW35 Phasemaster Whip with Spring Assembly
- 1 x 5m Cable with FME(F) Connector
- 1 x FME(F) to UHF(M) Adaptor
Documents:
RFI CD961 Antenna - Datasheet
RFI CD961 Antenna - Cabling Instructions
