      RFI CDM2406-WB is a mobile WiFi antenna designed for 2.4 GHz frequency with a 6 dBi gain. It features a 5-meter cable with an SMA(M) connector.

      Available

      $172.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

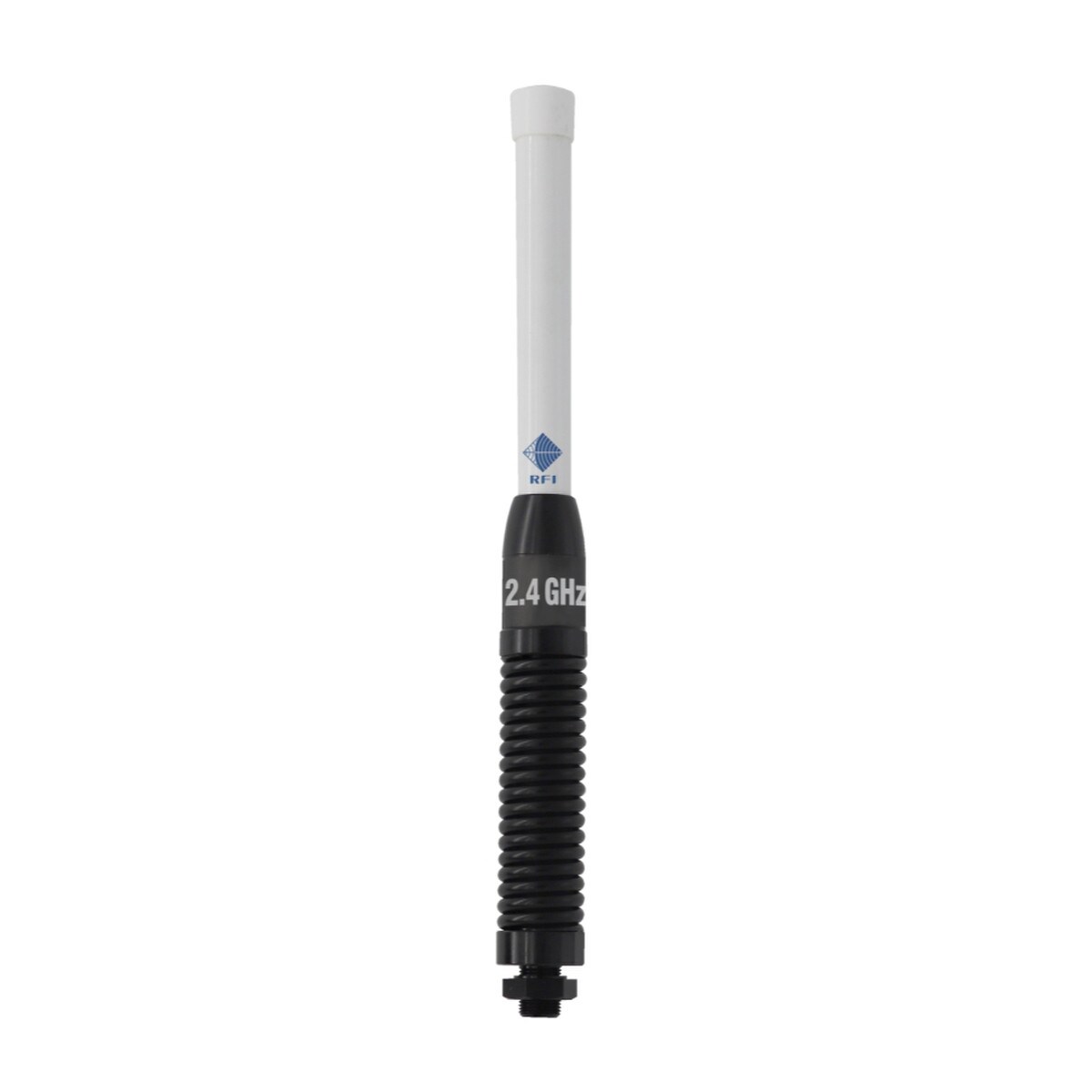

        The RFI CDM2406-WB mobile antenna is designed for 2.4 GHz frequency with a 6 dBi gain. It features a 5-meter cable with an SMA(M) connector and comes with a white radome and black spring for added durability and flexibility. Ii is deal for mobile or vehicle-based WiFi applications. The CDM2400 series utilise a patented PCB based collinear design offering the ultimate in pattern stability. Their ground independent design makes them suitable for a variety of mounting positions including bullbar, gutter and roof rack.

        Product Features:

        • Robust construction
        • Integrated heavy duty spring
        • Outstanding performance

        Application Areas:

        • Vehicle & Fleet Connectivity
        • Remote & Outdoor IoT Applications
        • Marine & Off-Road Communication
        • Construction & Mining Sites
        • Fixed Wireless Internet & Hotspots

        In the Box:

        • RFI CDM2406-WB Mobile WiFi Antenna
        • Cable: 5m

        Documents:

        RFI CDM2406-WB Mobile WiFi Antenna - Datasheet

        Product Specifications

        MPN CDM2406-WB
        Antenna application Vehicle Antenna
        Antenna configuration SISO
        Antenna port connectors SMA (M)
        Antenna type Ground Independent, Spring Mount, Vehicle
        Brands RFI
        Cable and connector Supplied with 5.0m CELLFOIL cable terminated with SMA male connector.
        Cable length m 5.0
        Cable type CellFoil
        Coverage type Omni-directional
        Frequency mhz 2400 - 2500
        Height 8
        Installation type External mounting
        Length 48
        Low pim No
        Max frequency mhz 2500
        Max gain dbd dbi 6.0
        Mimo support No
        Min frequency mhz 2400
        Min gain dbd dbi 6.0
        Mount supported Stud mount
        Mount supported detailed Stud mount
        Mounting Threaded Stud
        No of antenna ports 1
        Nominal gain dbi 6
        Packaging Plastic Bag
        Polarisation Vertical
        Technologies supported Wi-Fi
        Tuned bandwidth Full. No tuning required
        Vswr <1.5:1 VSWR
        Width 8
