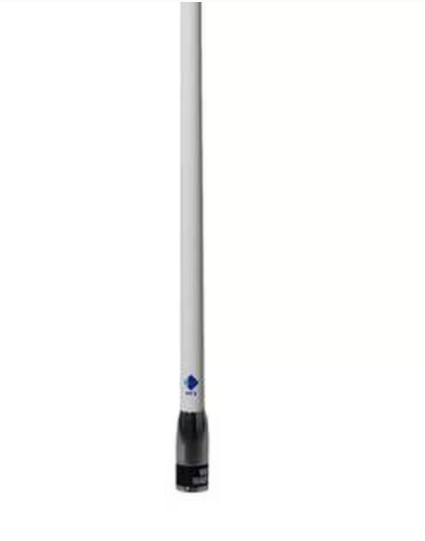

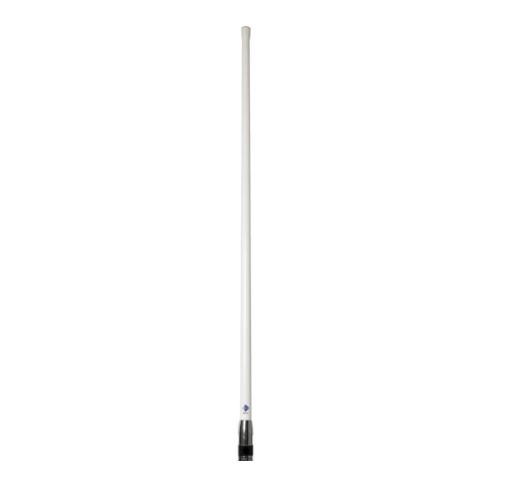

The RFI CDQ29 marine antenna whip operates within the 156-163 MHz frequency range and offers a 3dBi gain for enhanced signal strength. It features a robust white fiberglass radome and uses the proven Q-Fit system for easy installation on CDQ marine bases. This antenna is designed to withstand harsh marine environments The antenna is an elevated broad band center fed dipole making the constructed using highly repeatable via co-planar PCB technology. The PCB is housed in a robust fibreglass radome using our proven Q-Fit® interface allowing for easy fitment on various marine CDQ bases. It is DC grounded through integral shunt matching for protection from lightning and static build-up.

CD29 VHF Marine Antenna Options:

• RFI CDQ29-156163-95 VHF Marine Antenna - This antenna comes with CDQ29-156163 whip mounted on a plastic K/down mount.
• RFI CDQ29-156163-75 VHF Marine Antenna - This antenna comes with CDQ29-156163 whip mounted on CDQ spring base.
• RFI CDQ29-156163-00 VHF Marine Antenna Whip - This is whip only and does not include any mount or cable.

Product Features:

• Ideal antenna for marine applications requiring durability and performance
• Fits CDQ spring or K/down mounting
• Supports 156-163 MHz frequencies with a fantastic 3 dbi gain
• Comes factory tuned.
• PCB Radiator

Installation:

This whip can be installed on a CDQ spring or plastic K/down mount.

In the Box:

• 1x RFI CDQ29-156163 VHF Marine Antenna Whip

Documents:

RFI CDQ29-156163-00 VHF CDQ Marine Antenna Whip - Datasheet
