RFI CDQ5000 + CDQ3000 UHF CB Antenna Pack, 477 MHz - Black

    RFI CDQ5000 + CDQ3000 UHF CB Antenna Pack, 477 MHz - Black

      Product form
      Brand:
      Item ID:
      167028533
      Export:
      Restricted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      CDQ5000-B+CDQ3000

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

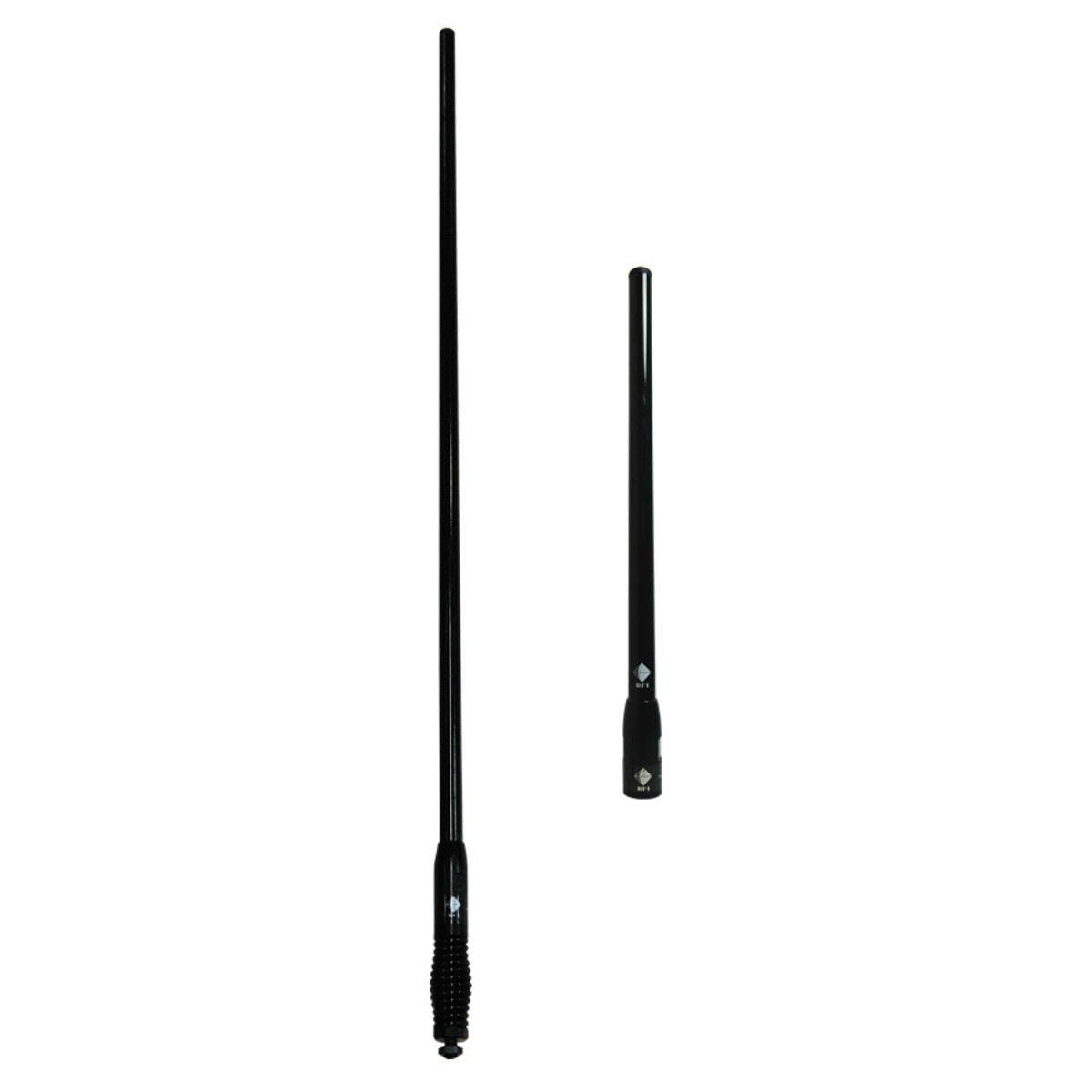

      RFI UHF CB 5 dBi Collinear Antenna (477 MHz); 5m FME(F); UHF(M) Adaptor + CDQ3000 - Black - This kit includes our successful CDQ5000 and CDQ3000 whip.

      Available

      $411.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        This RFI CDQ5000 CB UHF antenna town and country pack is suitable for use in both rural and urban areas on 477 MHz CB radio band. In country areas, the CDQ5000 antenna provides excellent gain.

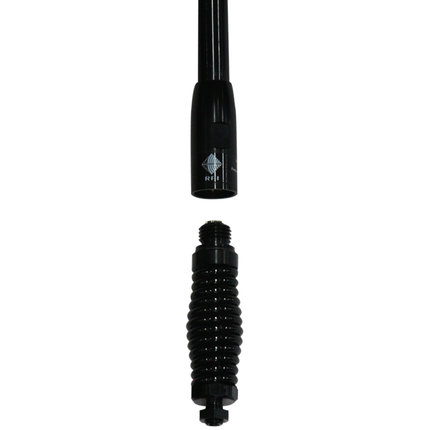

        This CDQ5000 kit includes the new CDQ3000 which both employ the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes.

        Product Features:

        • Patented PCB based Meander collinear design offering the ultimate in pattern and gain stability.
        • 5 dBi (CDQ5000) & 3 dBi (CDQ3000) gain across the full 477 MHz UHF CB band.
        • Q-Fit removable whip system for ease of removal in low height environments such as multi-story car parks, car wash's or for security.
        • Ground Independent

        In The Box:

        • 1x RFI CDQ5000 antenna of selected color with 5m cable and FME(F) termination
        • 1x CDQ3000 whip
        • 1x FME-UHF adapter

        Documents:

        RFI CDQ5000 Antenna - Datasheet

        Product Specifications

        MPN CDQ5000-B+CDQ3000
        Antenna application Vehicle Antenna
        Antenna cable type 9006
        Antenna configuration SISO
        Antenna port connectors FME (F), UHF (M)
        Antenna type Omni
        Band 477MHz
        Brands RFI
        Cable and connector 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
        Cable length m 3
        Connector FME(F), UHF(M)
        Coverage type Omni-directional
        Frequency band UHF 380-520 MHz
        Frequency mhz 477
        Frequency range mhz 470 - 490
        Height 3
        Installation type Vehicle mounting
        Length 99
        Low pim No
        Max frequency mhz 490
        Max gain dbd dbi 3
        Mimo support No
        Min frequency mhz 470
        Min gain dbd dbi 3
        Mount supported Spring base
        Mount supported detailed Spring base
        Mounting Spring Assembly with threaded stud & nut
        No of antenna ports 2
        Nominal gain dbi 3
        Packaging Clear hanging bag
        Power w 25
        Radome diameter mm 22.5 -18.5
        Technologies supported UHF CB
        Tuned bandwidth Full. No tuning required
        Tuning Supplied pre-tuned
        Vswr <1.5:1
        Whip material PCB radiating element housed in tapered high impact fibreglass
        Width 3
