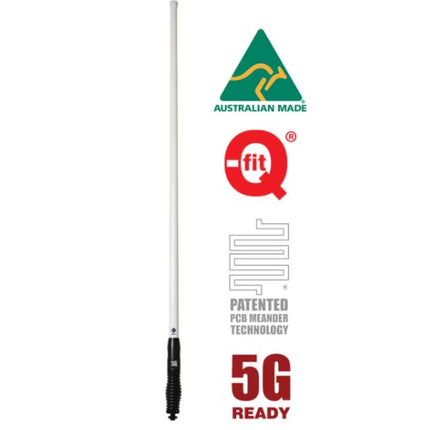

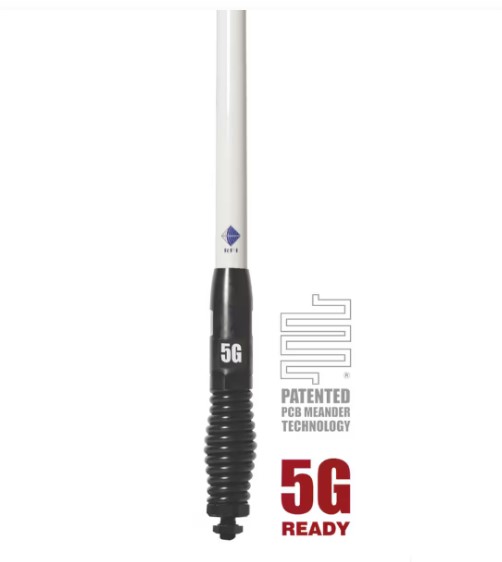

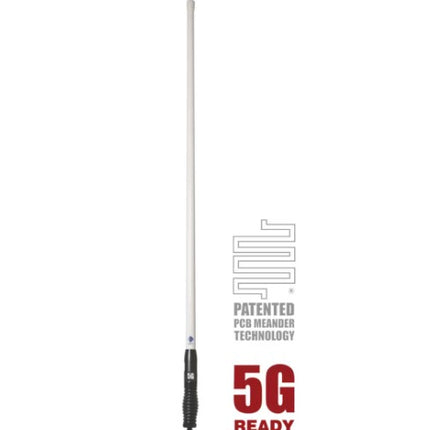

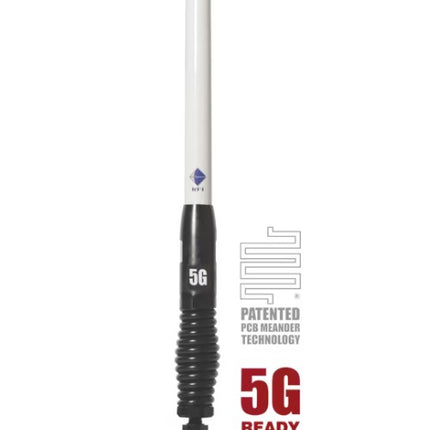

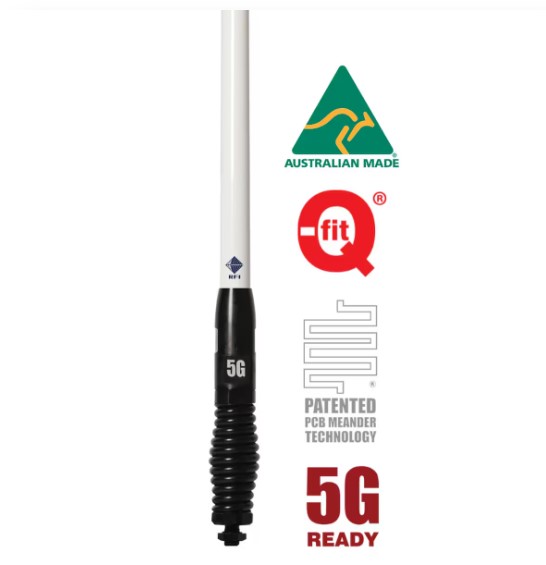

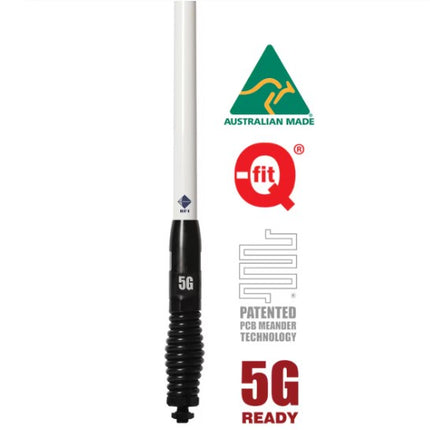

The RFI CDQ8197-WB is a 5G LTE collinear antenna designed for frequencies between 698 and 3800 MHz, offering a 7.5 dBi gain. It includes a 5m cable with SMA(M) connector. The antenna is built with a white radome and a black spring for durability and ease of installation.
TheCDQ8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). It is ideal for use with cellular modems & active repeaters, especially when signal is poor.
The outstanding performance of the CDQ8100 series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. It is flagship product and is designed for the harsh Australian conditions. Includes an integrated spring with threaded stud/nut for easy installation on vehicles. The CDQ8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.
Product Features:
- Patented PCB based collinear design offering the ultimate in pattern and gain stability.
- Ideal for new 5G/LTE networks with true multi-band coverage.
- High gain across all bands making it suiting fringe and rural applications.
- Q-Fit® removable whip system for ease of removal in low height environments such as multi-story car parks, car washes or for security.
Application Areas:
- Ideal for use in 5G LTE networks, covering frequencies from 698 MHz to 3800 MHz.
- Perfect for cellular modems & active repeaters, especially in areas with poor signal strength.
- Designed to operate across all mobile phone networks globally, making it a versatile solution for mobile network applications.
- Suitable for use in harsh Australian conditions due to its durable build.
- Excellent for vehicle installations, with an integrated spring for easy mounting and removal.
In the Box:
- RFI CDQ8197-WB 5G LTE Collinear Antenna
- White Radome
- Black Spring Assembly
- 5m SMA(M) cable
Documents:
RFI CDQ8197-WB Collinear Antenna - Datasheet
RFI CDQ8197-WB Collinear Antenna - Specifications
RFI CDQ8197-WB Collinear Antenna - Installation Guide
