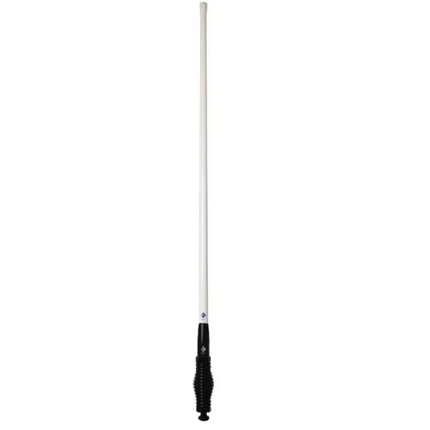

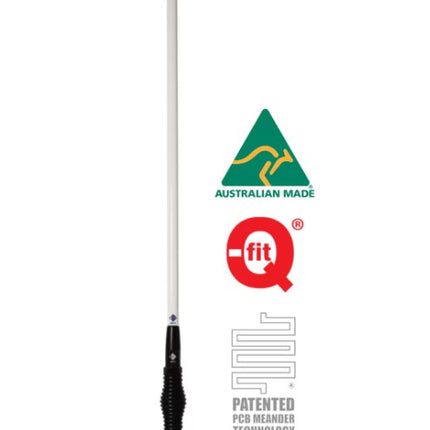

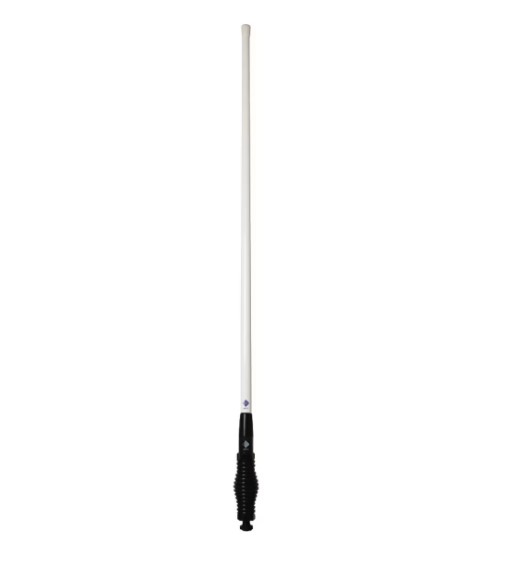

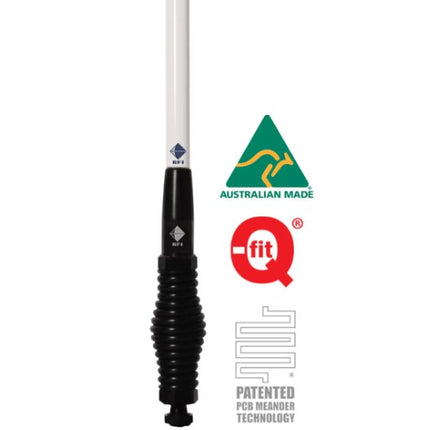

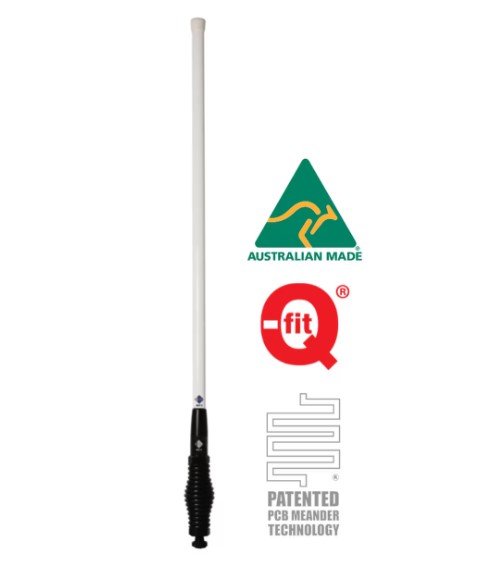

The RFI CDR5000-WB is a UHF CB collinear antenna that operates on 477 MHz with a 5 dBi gain. It comes with a 5-meter cable, an FME(F) connector, and a UHF(M) adaptor. The antenna has a white radome and a black spring, making it durable for outdoor or mobile use.
The CDR5000 series is a light weight version of our CDQ5000 which is ideal for mounting on guards, mirrors or bull bars. It utilises Patented PCB based Meander™ collinear design offering the ultimate in pattern and gain stability and employs our Q-Fit® removable whip system.
The antennas we supplied with our medium duty spring assembly which included 5 metres of low loss 9006 cable terminated with an FME female connector and includes a UHF to FME adaptor.
Product Features:
- Patented PCB based Meanderâ„¢ collinear design offering the ultimate performance & robustness.
- 5 dBi gain across the full 477 MHz UHF CB band.
- Q-Fit™ removable whip system for ease of removal in low height environments such as multi-story car parks, car wash’s or for security
- Totally ground plane independent.
- Available in black radome fitted to an integrated black chrome stainless steel spring (CDR5000-B), white radome fitted to an integrated black chrome stainless steel spring (CDR5000-WB) or white radome fitted to an integrated electro-polished stainless-steel spring (CDR5000-W).
Application Areas:
- Ideal for UHF CB communication networks operating at 477 MHz.
- Suitable for installation on guards, mirrors, or bull bars of commercial and off-road vehicles.
- Designed for both urban and rural environments.
- Ideal for mobile applications without compromising performance.
In the Box:
- 1x RFI CDR5000-WB UHF CB Collinear Antenna, White Radome
- 1x Black Medium-Duty Spring Assembly fitted with 5m Low-Loss RG58 Cable and FME(F) Connector
- 1x UHF(M) to FME(F) Adaptor
- 1x CDQ dust cap
Documents:
RFI CDR5000-WB Collinear Antenna - Datasheet
