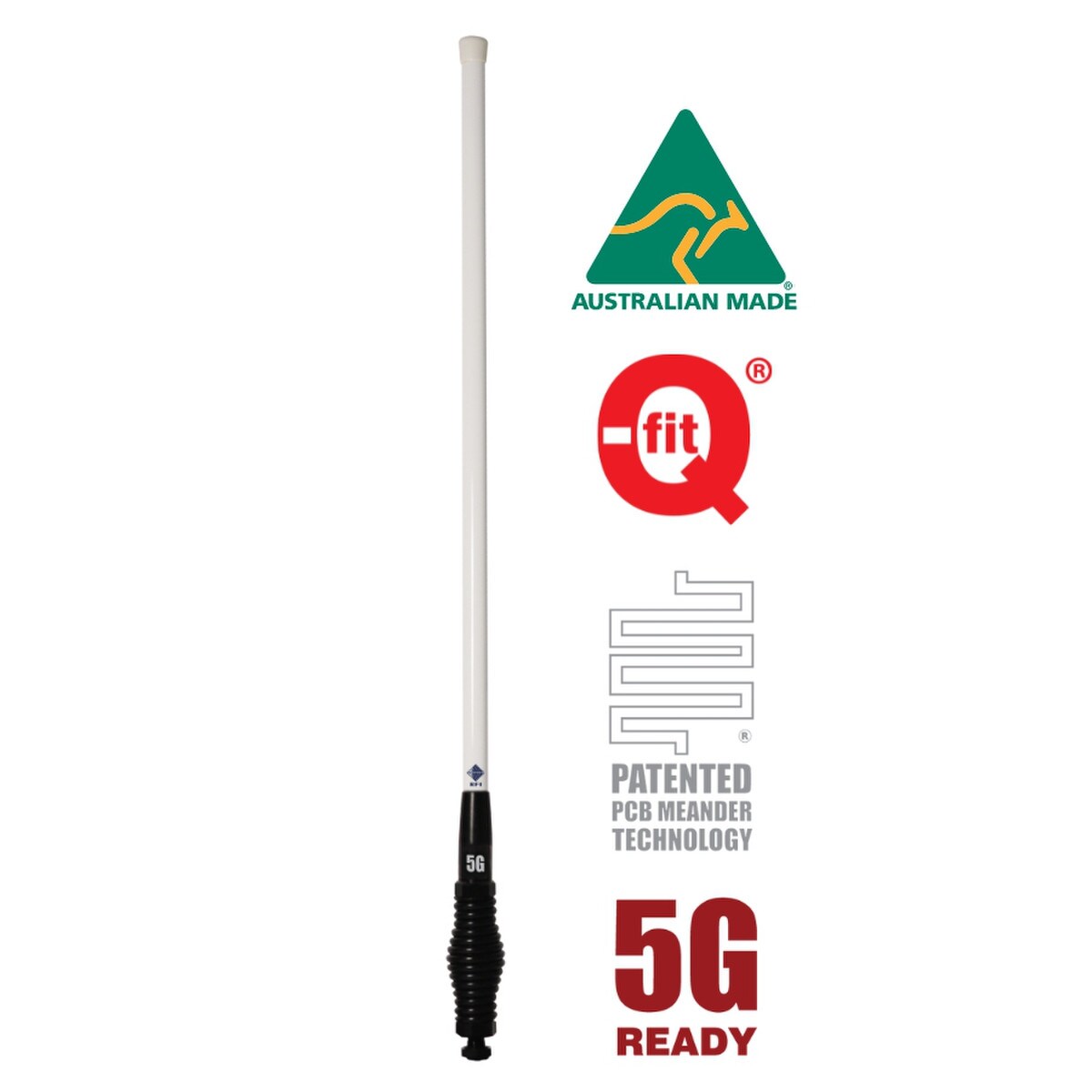

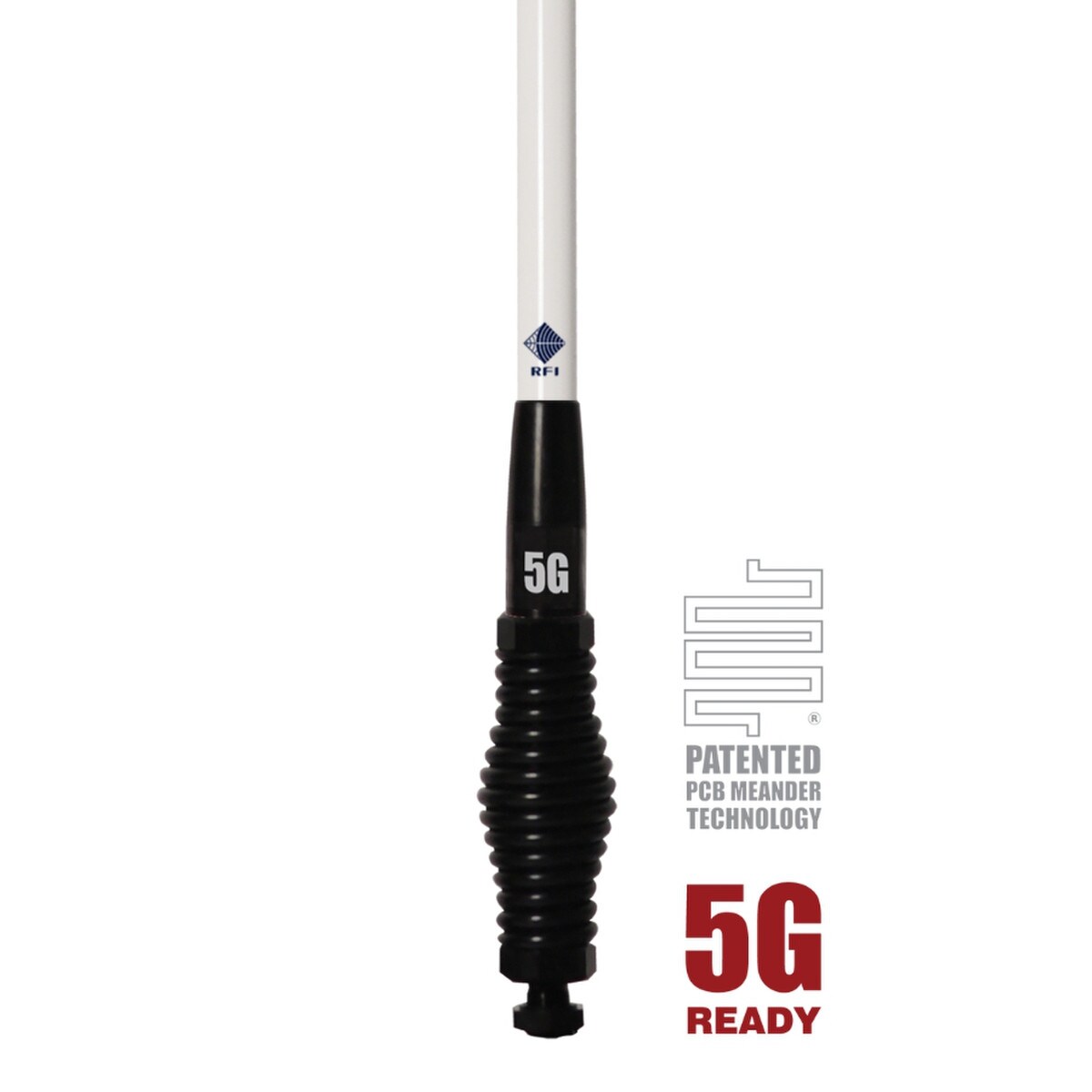

The RFI CDR8195-WB is a 5G LTE collinear antenna that operates on frequencies from 698 to 3800 MHz with a 6.5 dBi gain. It comes with a 5m cable and an SMA(M) connector. The antenna features a white radome and a black spring. The CDR8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). It is ideal for use with cellular modems & active repeaters especially when signal is poor. The outstanding performance of the CDR8100 Series lies in the use of the patented Meander® radiating elements. These Meander® circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in the one unit. The CDR8100 Series sits neatly in between our lighter duty CD8100 Series & our heavy duty CDQ8100 Series. Includes an integrated spring with threaded stud/nut for easy installation on vehicles . The CDR8100 Series whips can be removed via the integrated N male connector in the whip and N female connector on the spring assembly.

Product Features:

• The patented PCB-based collinear design offers the ultimate in pattern and gain stability.
• This product is ideal for new 5G/LTE networks with true multi-band coverage.
• It provides high gain across all bands, making it suitable for fringe and rural applications.
• The Q-Fit® removable whip system allows for easy removal in low-height environments such as multi-story car parks, car washes, or for security.

Application Areas:

• The product is perfect for use with cellular modems, routers, and active repeaters to enhance signal strength in poor reception areas.
• This design is suitable for mobile phone networks globally, providing consistent coverage and reliability.
• It is ideal for vehicle installations, offering easy mounting with the black spring assembly for secure attachment.
• The product is built to withstand harsh environmental conditions, making it suitable for outdoor and rugged installations.

In the Box:

• RFI CDR8195-WB 5G LTE Collinear Antenna
• White Radome
• Black Spring Assembly
• 5m SMA(M) cable

Documents:

RFI CDR8195-WB Antenna - Datasheet RFI CDR8195-WB Antenna - Specifications RFI CDR8195-WB Antenna - Installation Guide
