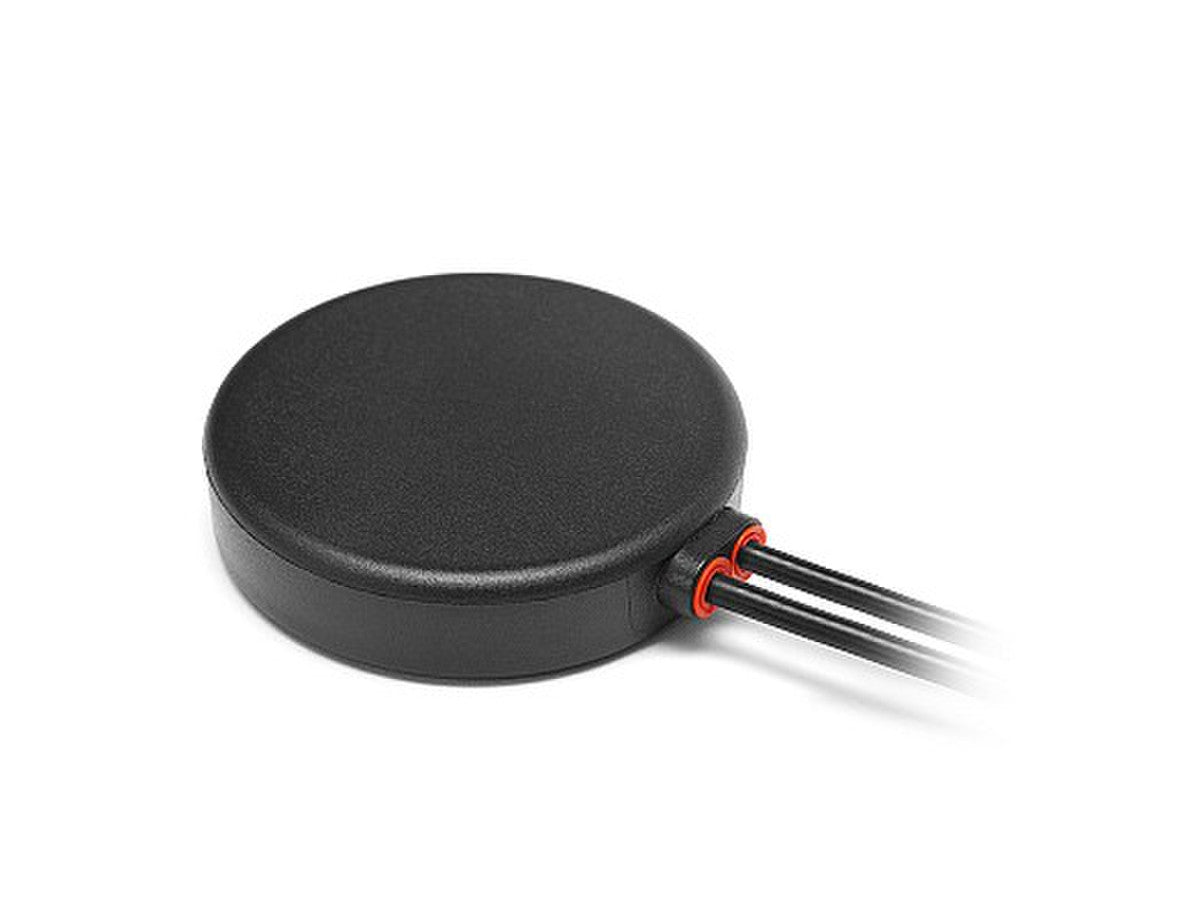

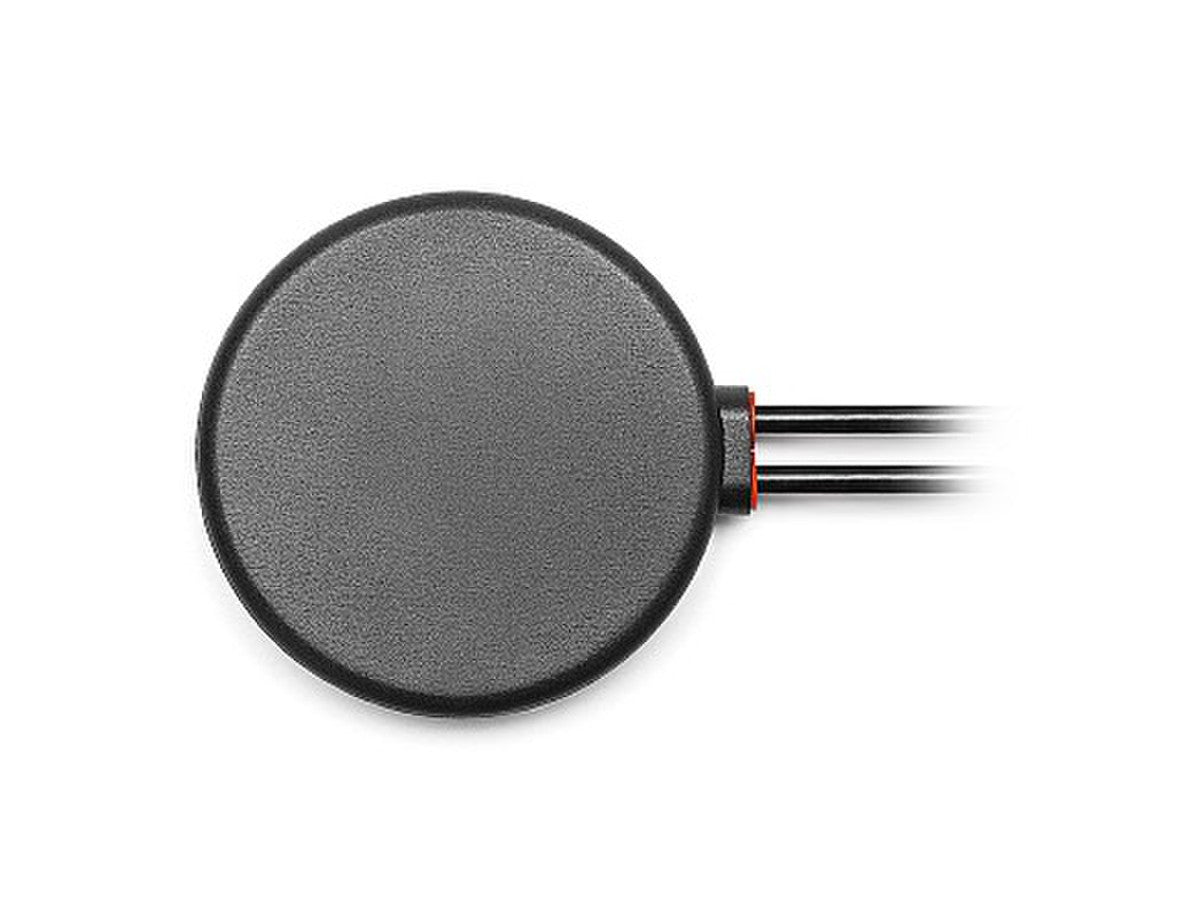

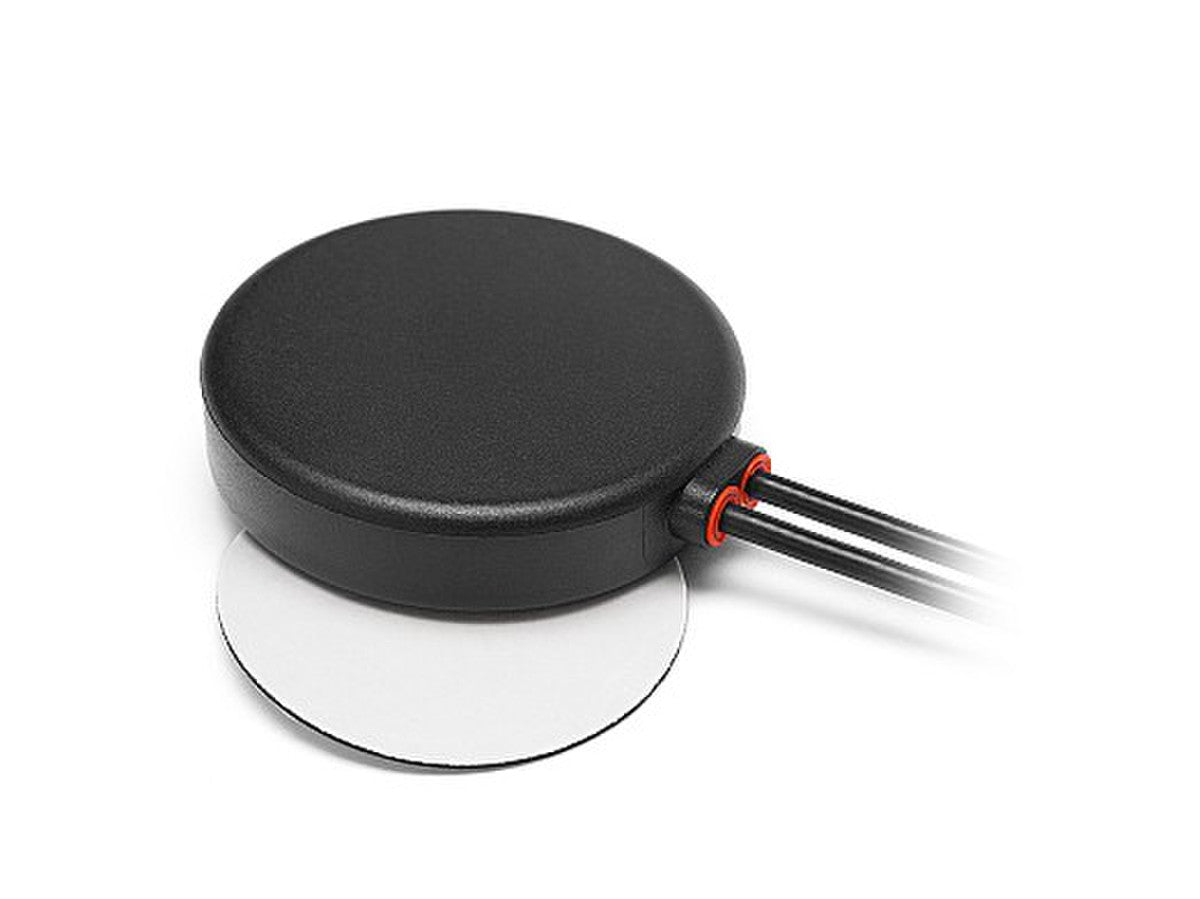

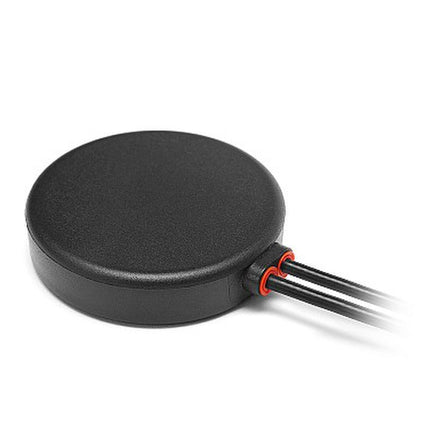

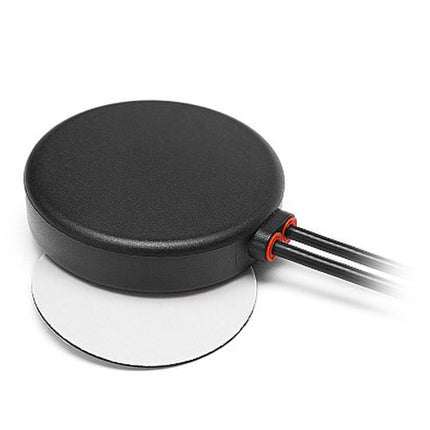

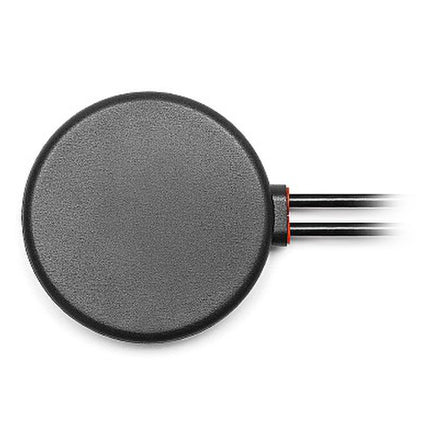

RFI CMHP900 3G/GPS Mini Puck Antenna, Ahdesive, Magnetic, 3m, FME-Female to SMA-Male

    RFI CMHP900 3G/GPS Mini Puck Antenna, Ahdesive, Magnetic, 3m, FME-Female to SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014125
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      CMHP900-GPS-3M-FS
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI CMHP900-GPS-3M-FS Cellular Antenna (824-2400 MHz); Adhesive/Magnetic 3m FME(F) SMA(M), provides seamless cellular and GPS connectivity.

      Available

      $59.10

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI CMHP900 GPS antenna provides seamless cellular and GPS connectivity. It is compact, efficient, and reliable partner in staying connected.

        Cellular:

        • Standards: 2G/3G compatibility for versatile cellular connectivity.
        • Frequency: Covers 824-960, 1710-2170 MHz for robust signal reception.
        • VSWR: Maintains signal integrity with VSWR 1.9:1, 2.1:1.
        • Peak Gain (dBi): ~1.2 for efficient 3G performance, ~-3.1 for enhanced reception.
        • Impedance (Ohm): 50 ohms ensures optimal signal transfer.
        • Polarisation: Linear polarization for consistent signal quality.
        • Max. Input Power (W): Handles up to 25W for reliable performance.

        GPS/Glonass:

        • Standards: GPS/QZSS/Galileo/GLONASS compatibility for precise navigation.
        • Frequency: 1575.42, 1598-1610 MHz for accurate GPS/Glonass reception.
        • Impedance (Ohm): 50 ohms for efficient signal transfer.
        • Active Gain (dB): 26 @ 3V for enhanced GPS/Glonass performance.
        • Saw Filter Type: Pre-Filter ensures signal purity.
        • Voltage (V): Operates at 2.7 - 5.5V for flexible power supply.
        • Current (mA): 15 - 25 mA for energy-efficient operation.
        • Power Consumption (mW): 40 - 137 mW for optimized energy usage.

        Product Specifications

        MPN CMHP900-GPS-3M-FS
        Antenna application Terminal Antenna
        Antenna cable type RG58
        Antenna configuration SISO
        Antenna port connectors SMA (M), FME (F)
        Antenna type Omni
        Brands RFI
        Cable length m 3
        Connector SMA(M), FME(F)
        Coverage type Omni-directional
        Height 3
        Installation type Internal mounting
        Length 5
        Low pim No
        Max frequency mhz 2170
        Max gain dbd dbi 3.1
        Mimo support No
        Min frequency mhz 824
        Min gain dbd dbi 1.2
        Mount supported Adhesive mount
        Mount supported detailed Adhesive mount
        No of antenna ports 2
        Power w 25
        Technologies supported 2G, 3G, GPS
        Width 5
