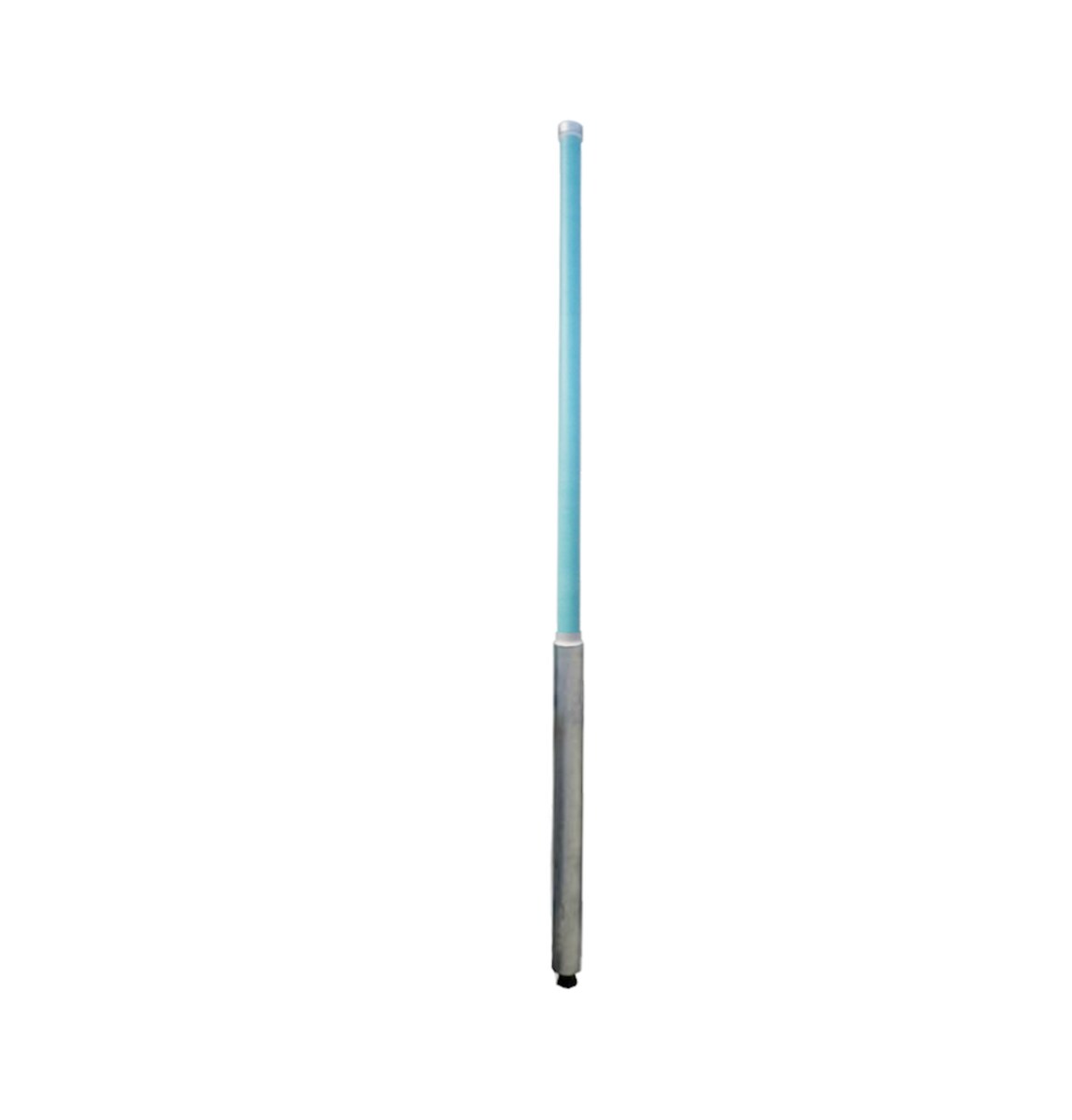

The RFI COL81-870-P is a meander collinear antenna designed to operate within the 806-870 MHz frequency range, offering unity gain and -150 dBC PIM performance. It features a 4.3-10(F) connector and is ideal for various wireless communication applications. This range of Meanderâ„¢ collinear antennas has been specifically designed for wireless applications requiring high performance, broad bandwidth and exceptional PIM and PIP specifications.
Product Features:
- Excellent bandwidth providing full band coverage
- Internally DC grounded for lightning protection and the reduction of precipitation noise
- Patented Meanderâ„¢ PCB design for optimum RF pattern stability
- Industry leading PIM ratings (-150dBc) providing low IM and low noise characteristics for optimum network performance
- Excellent Peak Instantaneous Power (PIP) rating (25kW)
- Also available with N connector
- The patented Meanderâ„¢ collinear element design allows multiple half wave elements to be stacked without the variations in cable lengths and mechanical joints which have typified the construction techniques in high gain collinear antennas
- With the dipole elements being printed on a single sided PCB the susceptibility to passive intermodulation is practically eliminated
- Placing the elements on a board not only controls PIM but also removes manufacturing variations so that each and every antenna will provide the same pattern, tilt and VSWR characteristics over its operating bandwidth
Application Areas:
- Optimized for wireless communication networks requiring high-performance coverage.
- Supports public safety, critical communications, and commercial LTE networks.
- Designed for base station and fixed-site deployments.
- Ideal for applications requiring low Passive Intermodulation (PIM) performance.
- Suitable for urban and rural network expansions.
In the Box:
- RFI COL81-870-P Meander Collinear Antenna
- 4.3-10(F) Connector
Documents:
RFI COL81-870-P Meander Collinear Antenna - Datasheet
