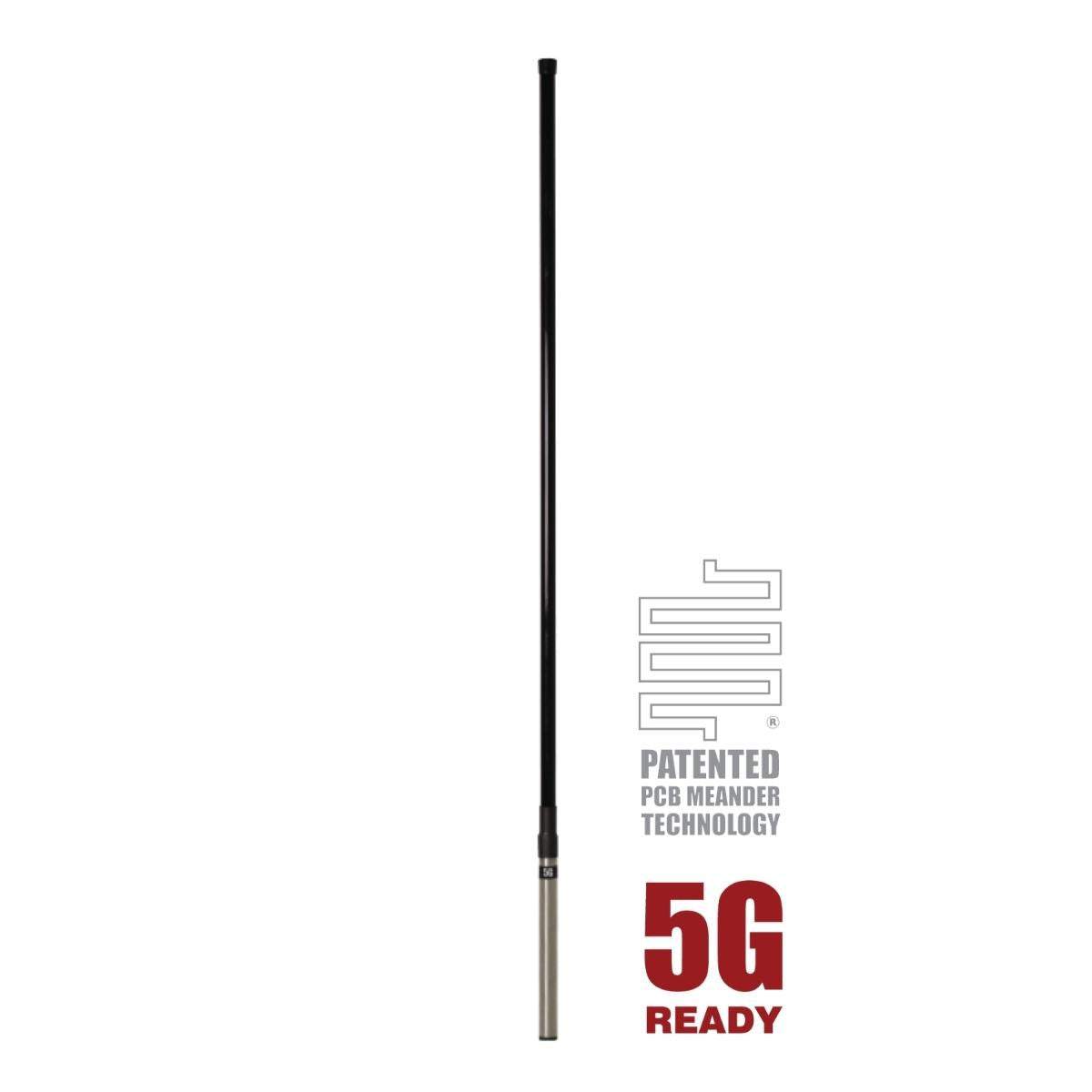

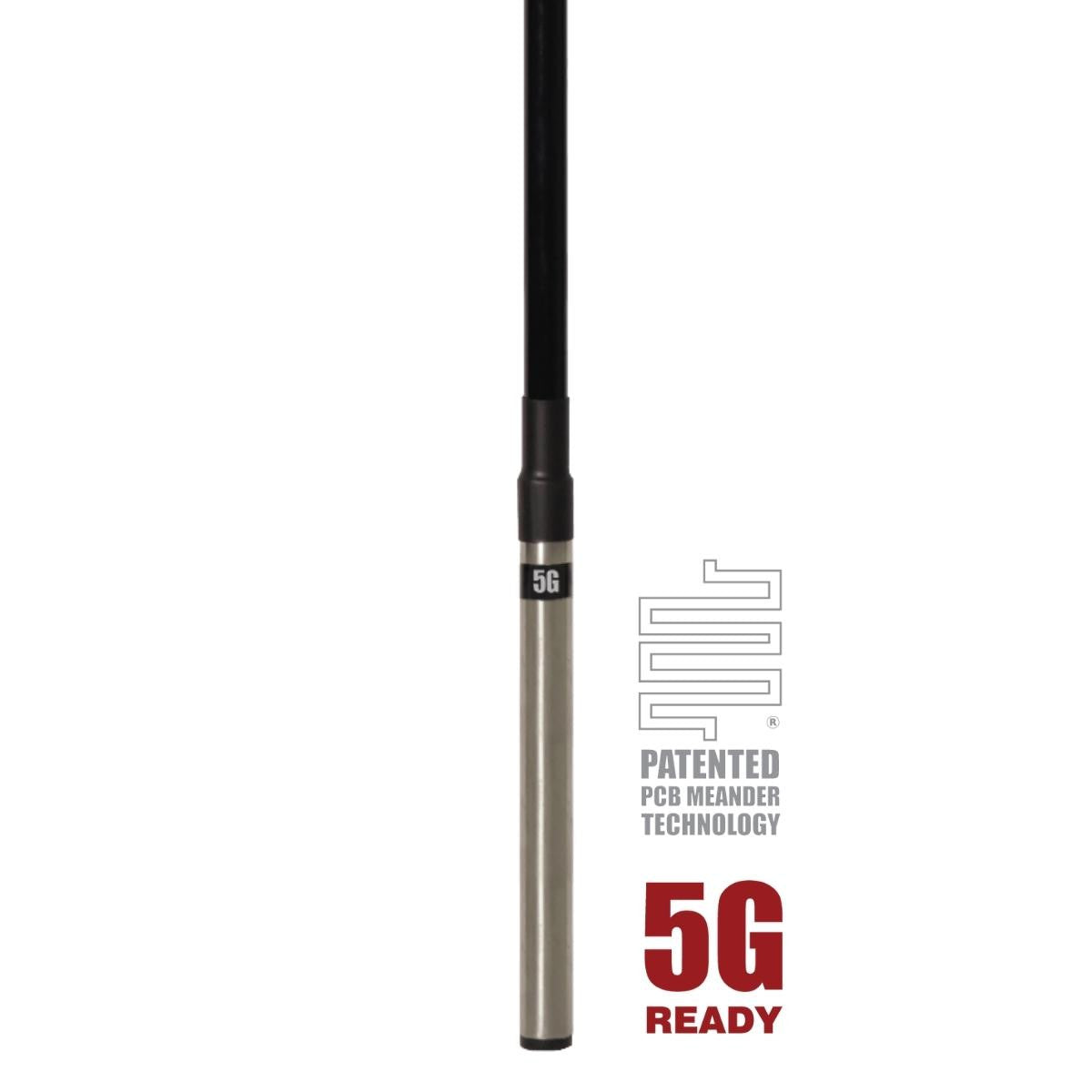

RFI COL8195 collinear antenna is supplied with a 200 mm x 19 mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps. The new COL8100 Series 5G LTE antennas not only cover the 4G LTE bands (698-960 MHz, 1710-2170 MHz, and 2300-2700 MHz) but now the new 5G LTE band (3400-3800 MHz). The outstanding performance of the COL8100 series lies in the use of the patented Meander radiating elements. These Meander circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.

Features:

• Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
• Ideal for new 5G/LTE networks with true multi-band coverage.
• High gain across all bands making it suiting fringe and rural applications.

Documents:

RFI COL8195 Antenna - Datasheet RFI COL8195 Antenna - Specifications RFI COL8195 Antenna - Installation Guide
