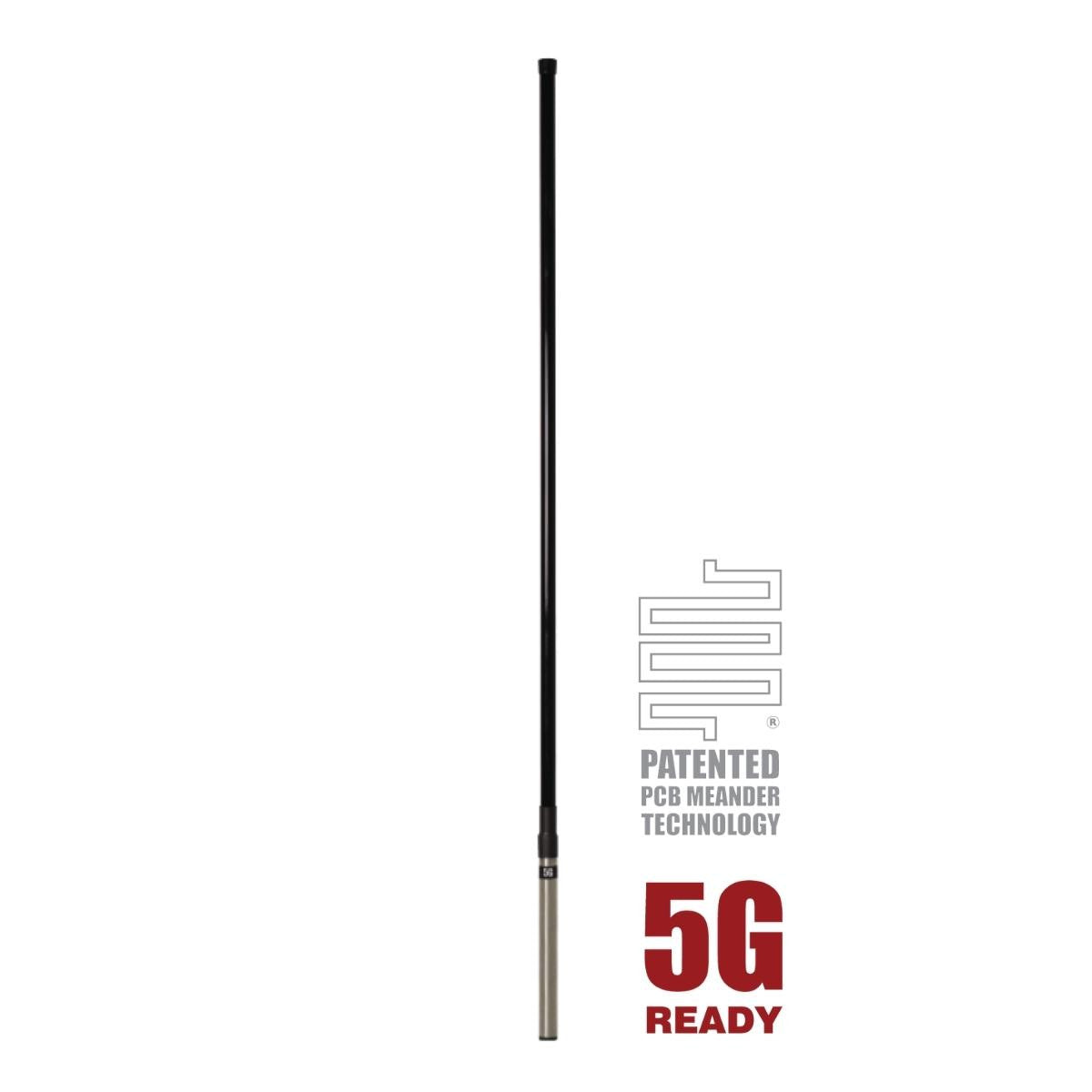

RFI COL8199 5G Collinear Antenna, 698-3800 MHz, 8.5 dBi, 10m, SMA-Male - Black

RFI COL8199 5G Collinear Antenna, 698-3800 MHz, 8.5 dBi, 10m, SMA-Male - Black

Available

Brand:
Item ID:
167014133
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
COL8199
Send Request for Quote (RFQ) Discount Offers
RFI COL8199 5G LTE 8.5 dBi Collinear Antenna (698-3800 MHz); 10m SMA(M) - Black not only cover the 4G LTE bands but now the new 5G LTE band (3400-3800 MHz).
Regular price $206.50
Regular price $0.00 Sale price $206.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

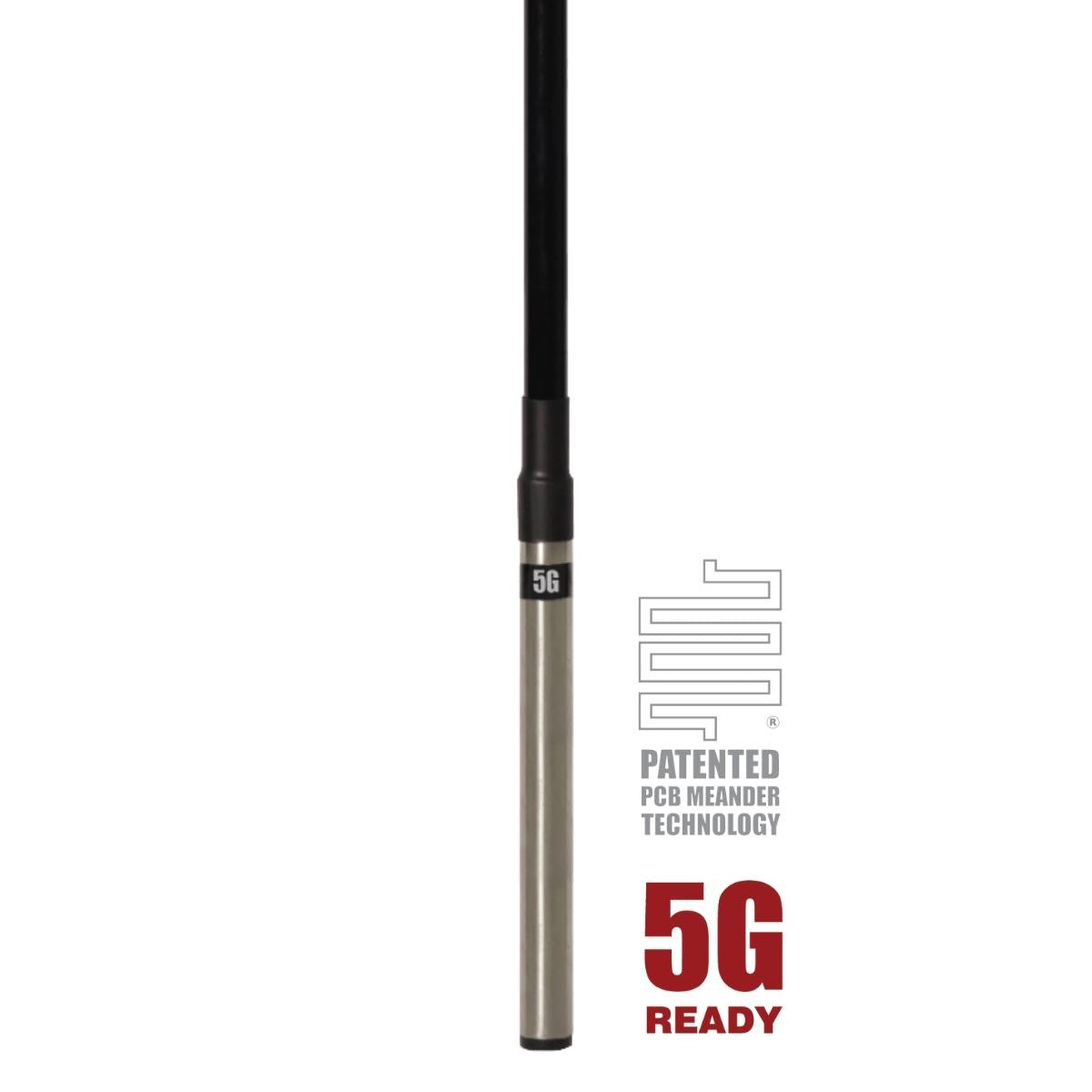

RFI COL8199 Collinear Antenna (698-3800 MHz) not only cover the 4G LTE bands but now the new 5G LTE band (3400-3800 MHz). The COL8100 Series is supplied with a 200 mm x 19 mm stainless steel mounting tube which is designed to be mounted to a vertical support structure using the two supplied stainless steel hose clamps. The outstanding performance of the COL8100 series lies in the use of the patented Meanderâ„¢ radiating elements. These Meanderâ„¢ circuits are coupled together to deliver extraordinary consistency in gain, coverage pattern, and bandwidth. The result is a unique antenna able to operate across all mobile phone networks globally, housed in one unit.

Features:

  • Patented PCB-based collinear design offering the ultimate in pattern and gaining stability.
  • Ideal for new 5G/LTE networks with true multi-band coverage.
  • High gain across all bands making it suiting fringe and rural applications.

Documents:

RFI COL8199 Antenna - Datasheet RFI COL8199 Antenna - Specifications RFI COL8199 Antenna - Installation Guide

Product Specifications

MPN COL8199
Antenna application Terminal Antenna, Base Station Antenna
Antenna cable type RG58
Antenna features Omnidirectional, Multi Band Capable
Antenna port connectors SMA (M)
Antenna type Ground Independent, Collinears, Meander
Brands RFI
Cable and connector 10m of RG58 (9006) low loss cable terminated with SMA male connector
Cable length m 10
Cable type RG58
Colour Black
Connector SMA(M)
Construction Black radome, 200 x 19mm S/S mounting tube
Coverage type Omni-directional
Frequency band Multi-Band 700-2700 MHz
Frequency mhz 698-960|1710-2170|2300-2700|3400-3800
Height 5
Horizontal beamwidth Omni-directional
Ingress protection ip IP65
Installation type External mounting
Ip rating IP65
Length 99
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 8.5
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 4.5
Mount supported Clamp mount
Mount supported detailed Hose clamp
Mounting area 200 x 19mm stainless steel mounting tube & 2 x S/S hose clamps (supplied)
No of antenna ports 1
Nominal gain dbi 8.5 / 4.5 / 5.5 / 6.5
Polarisation Vertical
Power w 10
Radome diameter mm 15.6
Technologies supported 4G, 5G
Tuned bandwidth Full
Vertical beamwidth 10 / 30 / 20 / 15
Vswr <2.5:1
Width 5
Wind gust km h 240
