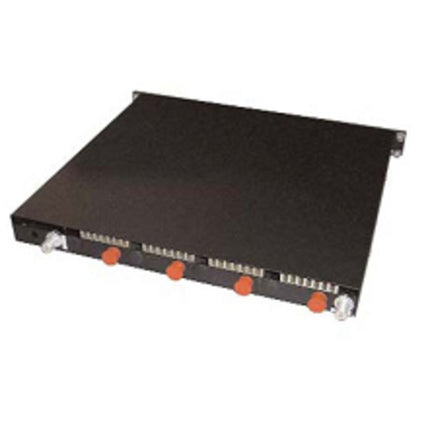

RFI Control Station Combiner 330-380 MHz; 4 Ports; Single Port Radio; 50W

Features:

Single antenna-port mobiles may be connected to these combiners to provide operation on two-antenna configurations (one Tx and one Rx), or through a duplexer to a single antenna (i.e. Tx/Rx). These capabilities can significantly reduce tower clutter and loading, and simplify cabling installation at Control Centre facilities. Models are available in the 132-150 MHz, 150-174 MHz, 380-450 MHz, 400-470 MHz, 450- 520 MHz, 746-869 MHz, 806-870 MHz and 896-960 MHz bands in standard configurations for 4, 8, 12, 16, and 32 capacities. Other frequency bands and higher channel capacities are also available upon request.

• Low Profile for Space Efficient Installation
• Frequency Agile with Predictable Isolation
• Analogue and Digital Compatible
• Models available to suit dual port radios and full duplex operation
• High power and integral Rx LNA models also available

Documents:

RFI UHF Standard Control Station Combiner - Datasheet
RFI Standard Control Station Combiner - Application Note
