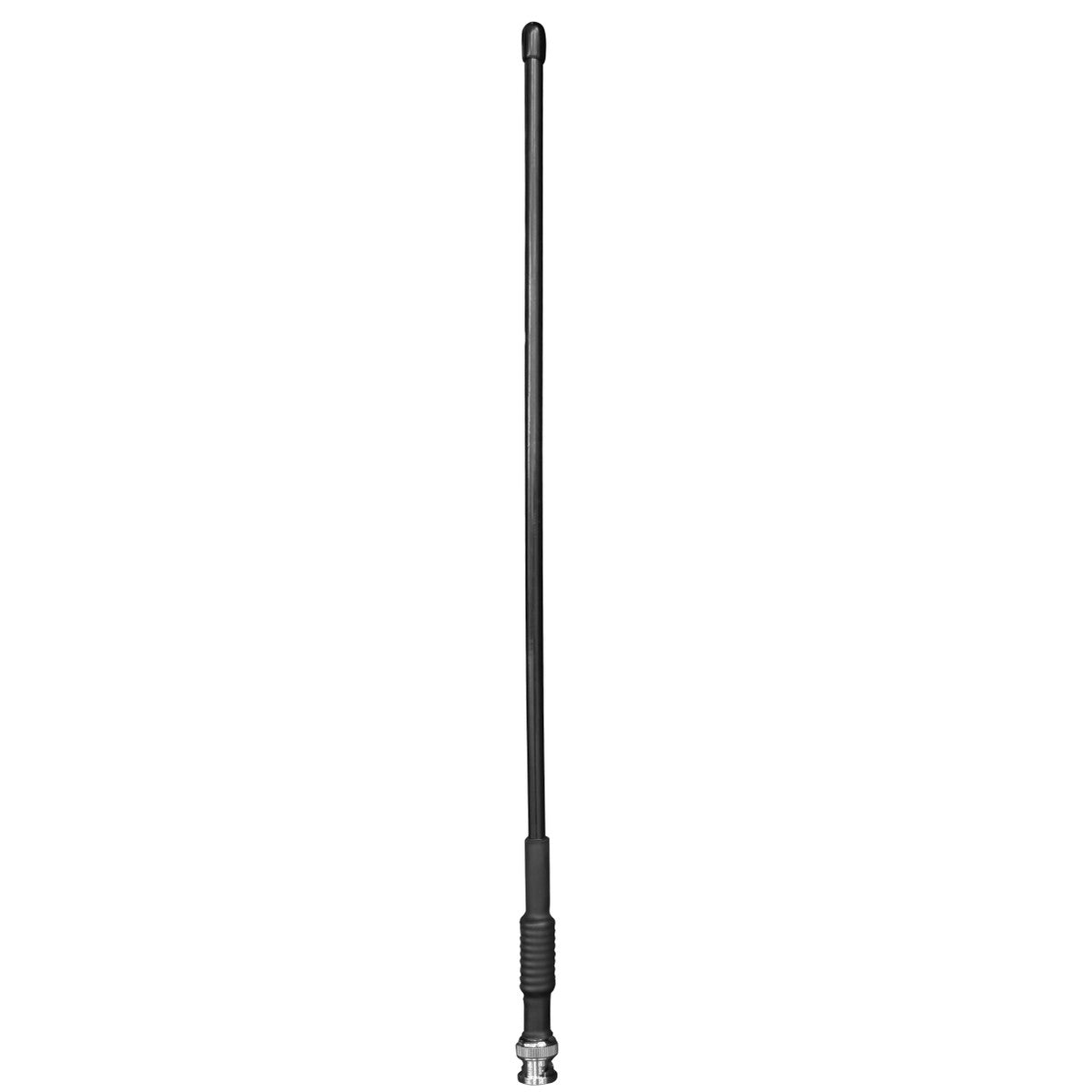

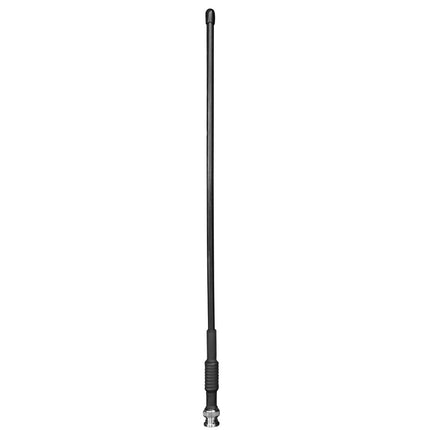

RFI CRD-TNC-68UHF Hand Portable Antenna, 450-520 MHz, 4 dB, TNC-Male

RFI CRD-TNC-68UHF Hand Portable Antenna, 450-520 MHz, 4 dB, TNC-Male

Available

Brand:
Item ID:
167015869
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CRD-TNC-68
Send Request for Quote (RFQ) Discount Offers
RFI CRD-TNC-68 UHF 4 dB Hand Portable Antenna (450-520 MHz); TNC(M), is half wave dipole antenna and available only with BNC or TNC terminations.
Regular price $59.00
Regular price $0.00 Sale price $59.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI CRD-TNC-68 UHF 4 dB Hand Portable Antenna (450-520 MHz); TNC(M)

RFI CRD-TNC-68 UHF 4 dB Hand Portable Antenna (450-520 MHz); TNC(M), elevates handheld communication. It is specifically designed for 450-520 MHz frequency range. The CRD Series Dipoles, featuring a half-wave dipole design, guarantee true high performance in handheld applications, ensuring clear and reliable communication on the go.

Features:

  • Frequency Range: Covers the UHF spectrum from 450 to 520 MHz for versatile communication capabilities.
  • TNC(M) Termination: Equipped with a TNC(M) termination for a secure and efficient connection.
  • Half-Wave Dipole Design: The (CRD-TNC-68) dipole element, enclosed in flexible PVC tubing, provides optimal performance.
  • Trimming Capability: Use the enclosed tuning chart to trim the antenna over the specified band, allowing customization for specific needs.
  • Tuned Bandwidth: Offers a tuned bandwidth of approximately 2% of the center frequency, ensuring precise and efficient operation.

Specifications:

  • Frequency Range: 450-520MHz
  • Tuned Bandwidth: 10MHz for VSWR<2.0:1
  • Power Rating: 50 Watts
  • VSWR: Less than 1.5:1 at center frequency
  • Polarization: Vertical
  • Gain: 0dBd (Unity gain referenced to a ½ wave dipole, giving an improvement in performance of 4dB compared to typical ¼ wave hand portable antennas in hand portable applications)
  • Termination: Male connector with shroud
  • Operating Temperature: -40°C to 85°C
  • 90° Flexure Cycle Life: 20,000 Flex Cycles Typical

Documents:

RFI CRD-TNC-68 Antenna - Datasheet
RFI CRD-TNC-68 Antenna - Installation Guide

Product Specifications

MPN CRD-TNC-68
Antenna application Handheld Antenna
Antenna configuration SISO
Antenna port connectors TNC (M)
Antenna type Omni
Brands RFI
Connectors TNC (M)
Coverage type Omni-directional
Frequency band UHF 380-520 MHz
Frequency mhz 400-520
Height 2
Installation type Device mounting
Length 20
Low pim No
Max frequency mhz 520
Max gain dbd dbi 4
Mimo support No
Min frequency mhz 450
Min gain dbd dbi 4
Mount supported Connector mount
Mount supported detailed Device mount
No of antenna ports 1
Power w 50
Technologies supported UHF
Width 2
