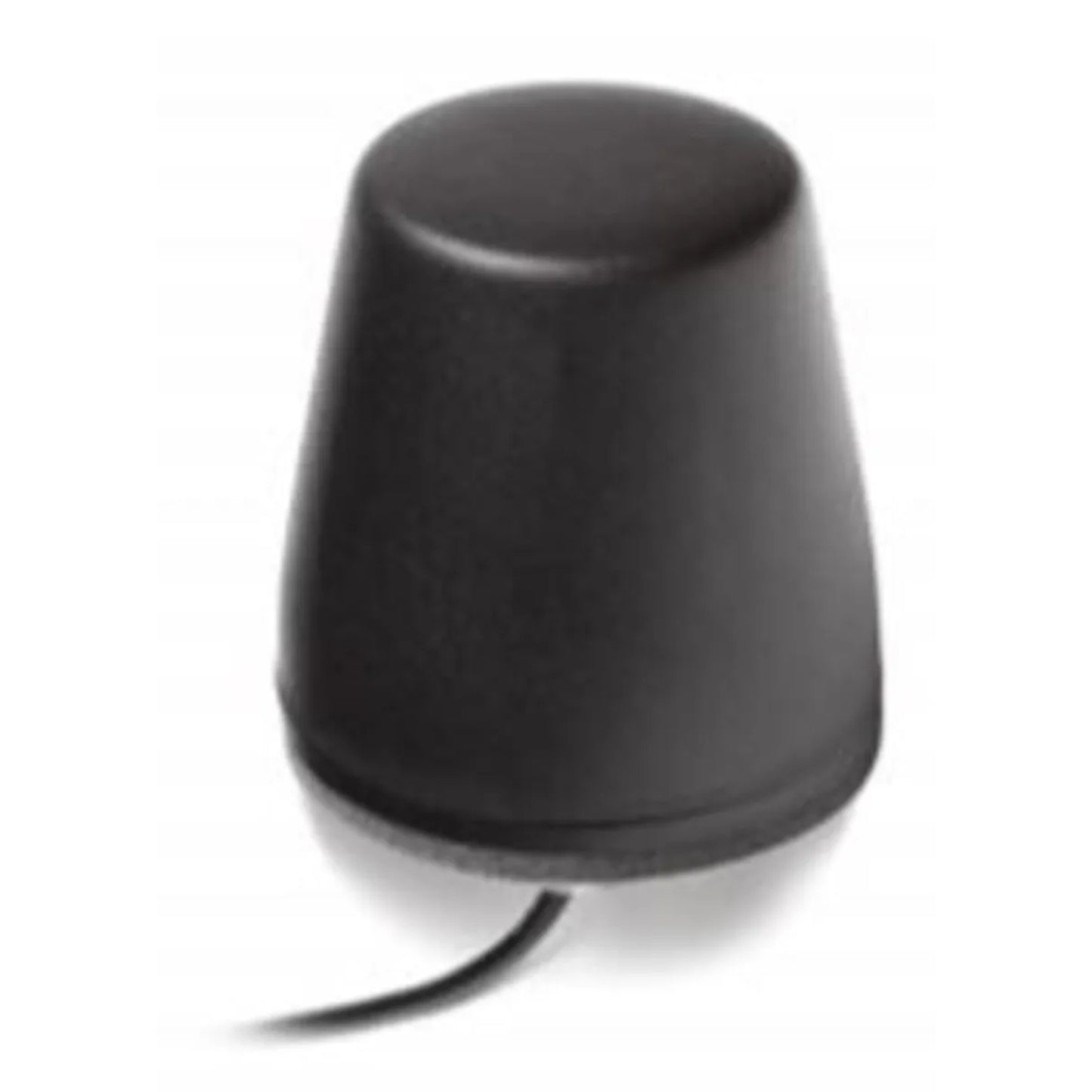

RFI CSM550 Ultra Compact 4G+5G M2M/IoT Antenna, 698-5925 MHz, 1.5m LL100, SMA-Male

RFI CSM550 Ultra Compact 4G+5G M2M/IoT Antenna, 698-5925 MHz, 1.5m LL100, SMA-Male

Brand:
Item ID:
168014138
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CSM550-1.5M-SMA
Send Request for Quote (RFQ)
CSM550 is an ultra-compact omni-directional 5GNR antenna from RFI that provides excellent coverage for M2M/IoT, fixed data and mobile applications over 617 MHz to 5925 MHz frequency range.
Regular price $50.25
Regular price $0.00 Sale price $50.25
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

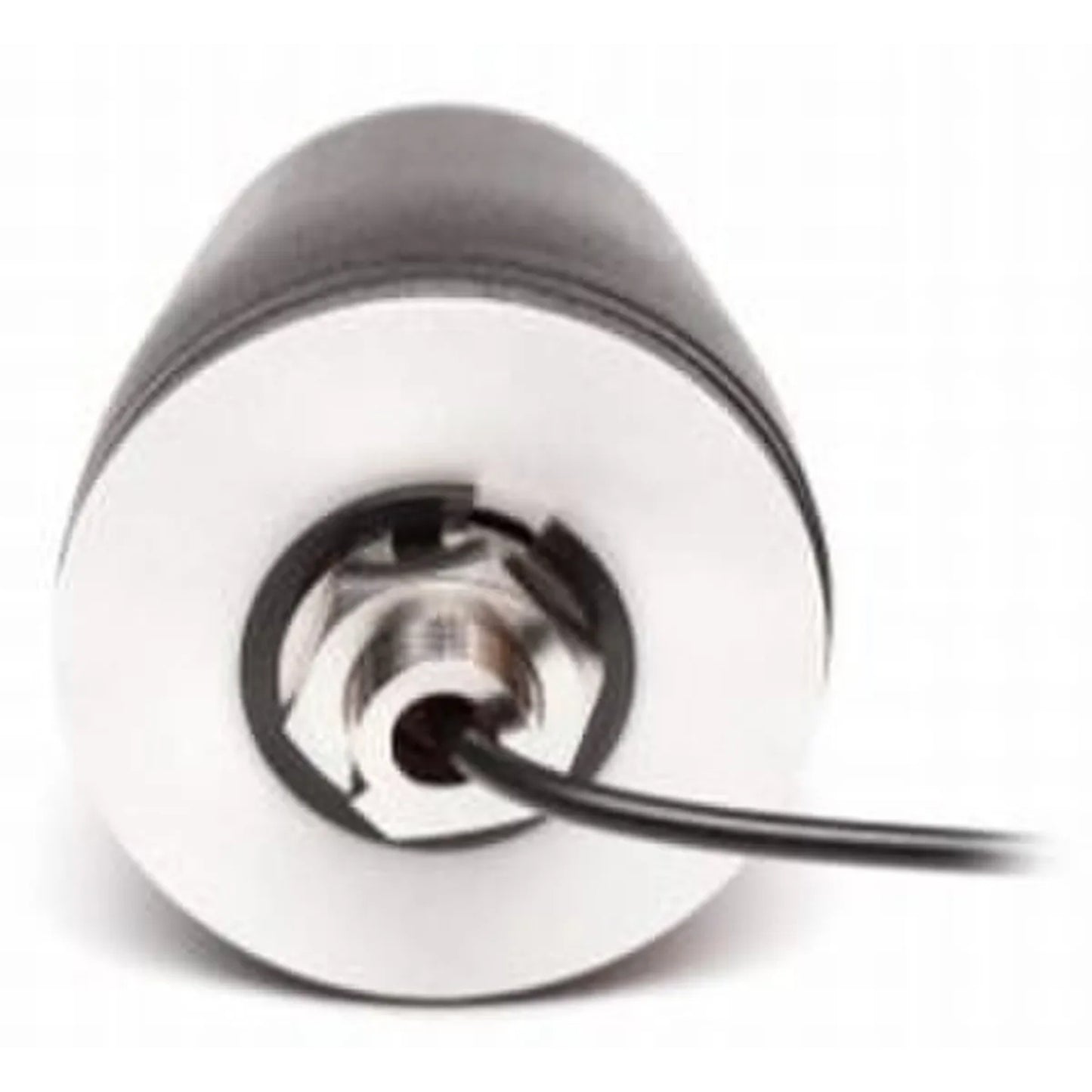

CSM550 is an ultra-compact omni-directional 5GNR antenna from RFI that provides excellent coverage for M2M/IoT, fixed data and mobile applications over 617 MHz to 5925 MHz frequency range. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. The CSM550 is fitted with a 11.9mm stud mount incorporating an integrated double-sided foam seal and is IP69 rated. This model CSM550-1.5M-SMA is fitted with 1.5m LL100 low-loss cable and an SMA-Male connector.

Product Features:

  • The antenna supports all major 5G, 4G LTE, and 3G cellular frequency bands, ensuring broad compatibility across networks.

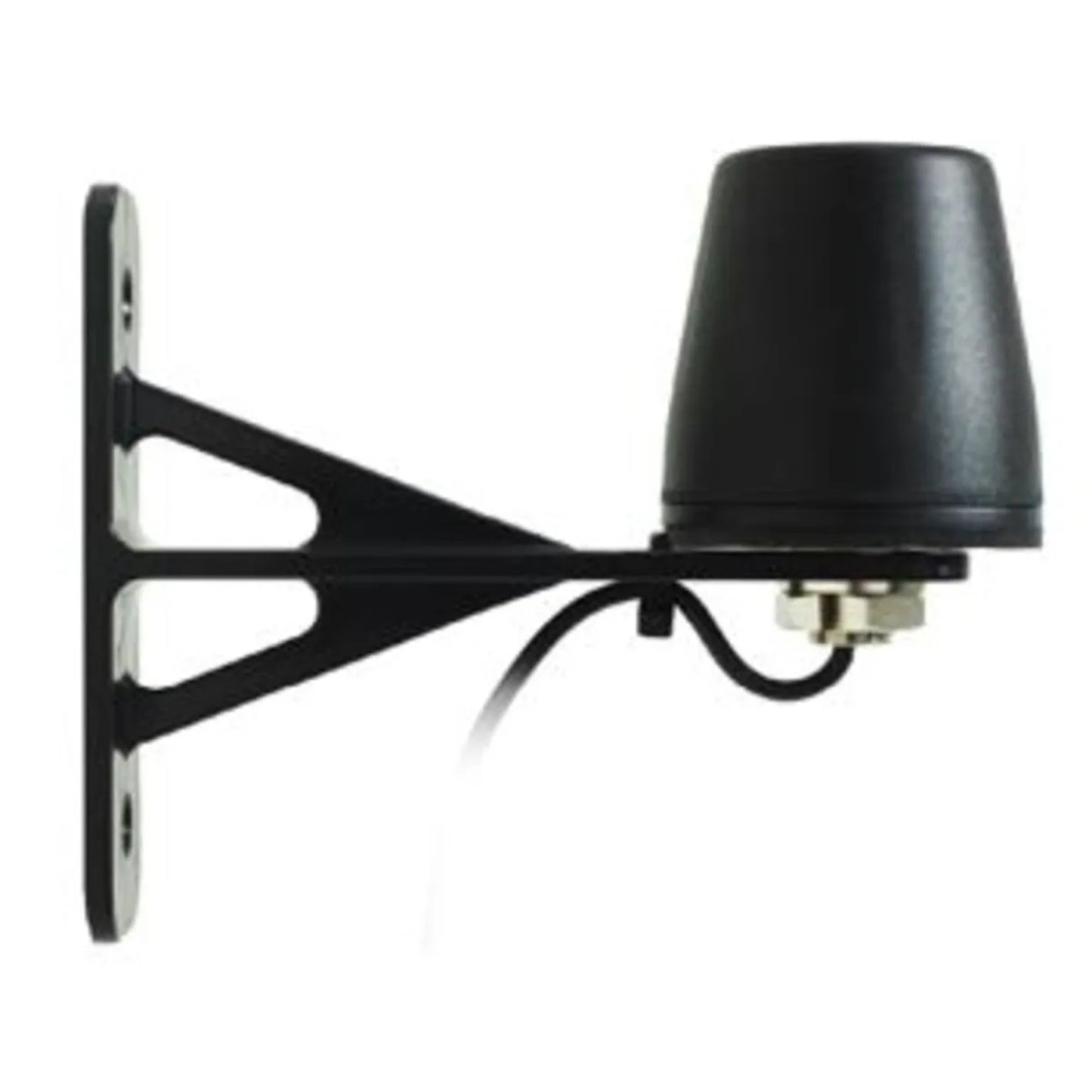

  • It features a screw mount with an anti-rotation mechanism, providing a secure and stable installation.
  • The design is ground plane independent, allowing flexible placement without affecting performance.
  • The ultra-compact form factor, measuring Ø 50 x 50.8 mm, makes it ideal for space-constrained applications.
  • It is IP69 weatherproof rated, ensuring reliable operation in harsh environmental conditions.

Application Areas:

  • This antenna is suitable for transport systems requiring dependable cellular connectivity.
  • It is ideal for use in ticketing systems that demand constant network access.
  • The antenna is well-suited for ATM machines where secure and uninterrupted data transmission is essential.
  • It can also be deployed in vending machines that operate over cellular networks.

In the Box:

  • 1x RFI CSM550-1.5M-SMA 5GNR Antenna
  • 1x 1.5m LL100 Low-Loss Cable
  • 1x SMA-Male Connector

Documents:

RFI CSM550-1.5M-SMA Antenna - Datasheet
